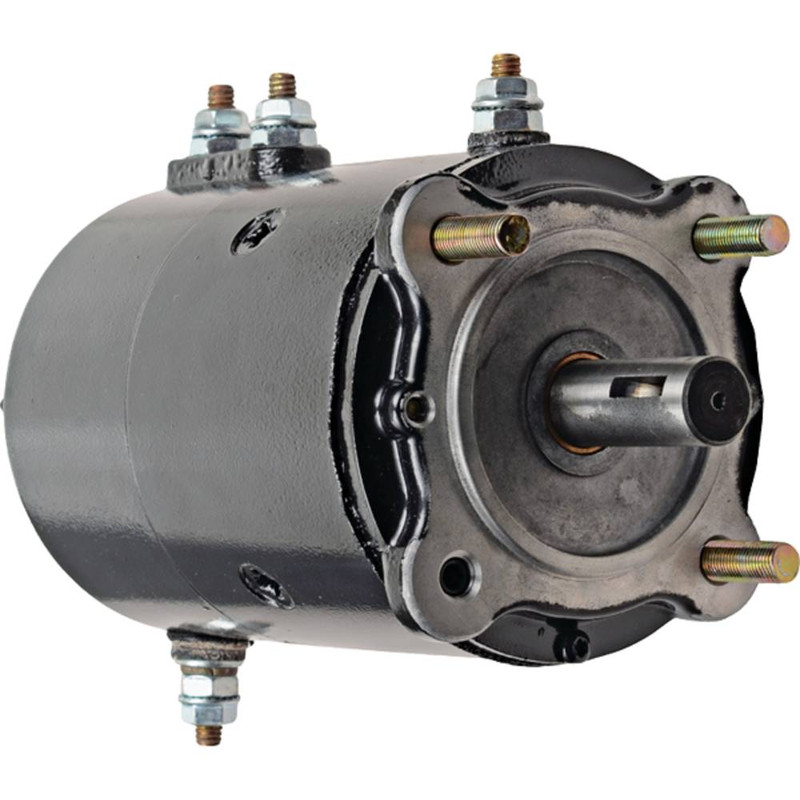

New PRESTOLITE Winch Motor for LIFTMORE & RAMSEY WINCH Various Models Applications; PRL-MBJ6302, MBJ6302, 458071, 430-20000
$359.99
Specifications
UNIT TYPE |
Winch Motor |
CRITICAL NOTE |
There Is An Auxiliary Ground Stud On The Bottom Of The Motor |
CURRENT TYPE |
DC |
VOLT |
12 |
FIELD TYPE |
Series |
NUMBER OF FIELDS |
4 |
HP |
3.406 |
POWER |
2.540 kw |
LENGTH |
209.500 mm |
LENGTH |
8.248″ |
OD |
114.300 mm |
OD |
4.500″ |
ROTATION DIRECTION |
Reversible |
SHAFT |
Includes Keyway |
SHAFT OD |
0.748″ |
SHAFT OD |
19mm |
TERMINAL 2 SIZE |
5/16-18 |
TERMINAL 3 SIZE |
5/16-18 |
TERMINAL 4 SIZE |
5/16-18 |
TERMINAL 5 SIZE |
5/16-18 |
ADD’L INFO |
Includes (3) 3/8-24 Mounting Bolts Attached, 4th Hole is Filled With a Set Screw, Updated Design from MBJ6301, Bearing in CE Housing Instead of Bushing, New Brush Holder Design |
Part Number & Interchanges
Manufacturer Name |
Manufacturer Part # |
ARROWHEAD |
PLMBJ6302 |
J&N |
430-20000 |
PRESTOLITE |
MBJ6302 |
RAMSEY WINCH |
458071 |
