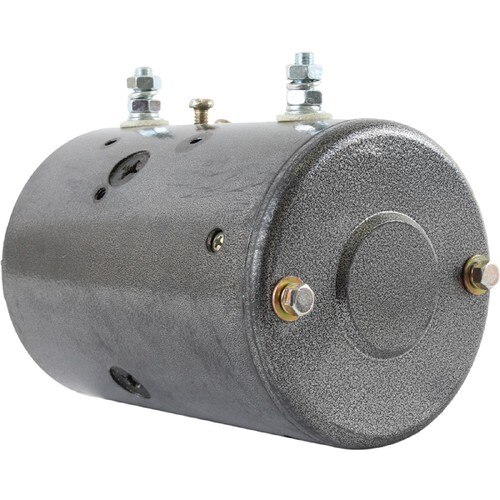

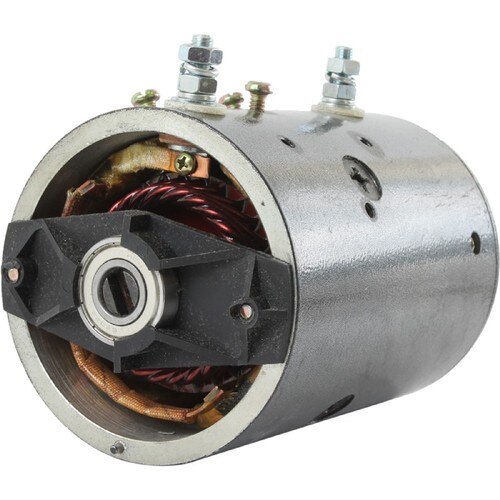

NEW Pump Motor for BARNES & FENNER STONE Applications; 430-20022, GC-3950-B1, 46-142, 46-2363, MMQ4001, MMQ4001A, MMQ4001S, MUV6201S; LESTER 10720
$179.99
Specifications
| UNIT TYPE | Pump Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| ROTATION DIRECTION | Reversible |
| OD | 114.300 mm |
| OD | 4.500″ |
| SHAFT OD | 0.591″ |
| SHAFT OD | 15mm |
| LENGTH | 171 mm |
| LENGTH | 6.732″ |
| TERMINAL 2 SIZE | 5/16/-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| SHAFT | Slotted |
| WARRANTY | 1 Year |
| ADD’L INFO | Multiple Solenoid Mounting Positions 6″ Field Case |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LPL0095 |
| HALDEX-BARNES | GC-3950-B1 |
| J&N ELECTRICAL PRODUCTS | 430-20022 |
| LESTER | 10720 |
| OTHER OEMS | M3500 |
| PRESTOLITE | 46-142, 46-2363, MMQ4001, MMQ4001A, MMQ4001S, MUV6201S |
| WESTERN MOTORS | W-8901E |
