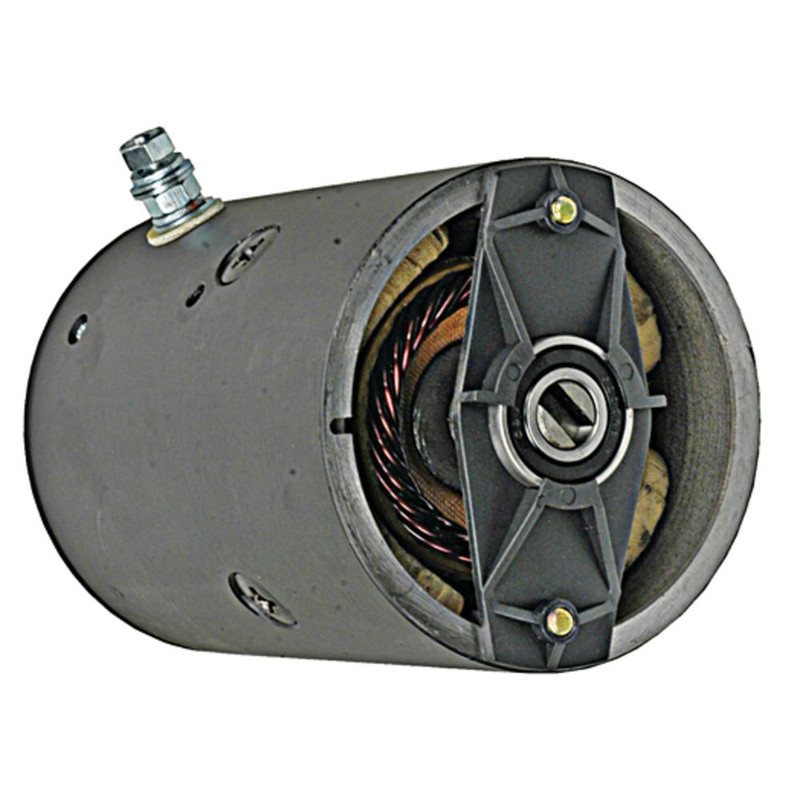

NEW Pump Motor for JS BARNES HYDRAULIC, Monarch & MTE Applications; 430-20028, 46-2107, 46-2369, 46-2414, 46-2585, 46-2595, 46-262, 46-349, 46-717, MDY6101; LESTER 10781, 6033, 6034, 6119
$159.99
Specifications
| UNIT/PART TYPE | Pump Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| ROTATION DIRECTION | Counter Clockwise |
| OD | 114.300 mm |
| OD | 4.500″ |
| SHAFT OD | 0.591″ |
| SHAFT OD | 15mm |
| LENGTH | 183.800 mm |
| LENGTH | 7.236″ |
| TERMINAL 2 SIZE | 5/16-24 |
| SHAFT | Slotted |
| NUMBER OF FIELDS | 4 |
| WARRANTY | 1 Year |
| Single Ball Bearing, Thru Bolts at 11:00 & 5:00 With Motor Stud at 12:00 |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LMN0001 |
| J&N ELECTRICAL PRODUCTS | 430-20028 |
| LESTER | 10781, 6033, 6034, 6119 |
| PRESTOLITE | 46-2107, 46-2369, 46-2414, 46-2585, 46-2595, 46-262, 46-349, 46-717, MDY6101, MDY6102, MDY6119, MDY6122, MDY7027, MDY7050, MDY7057, MDY7057A, MDY7059, MDY7068, MUE6104 |
