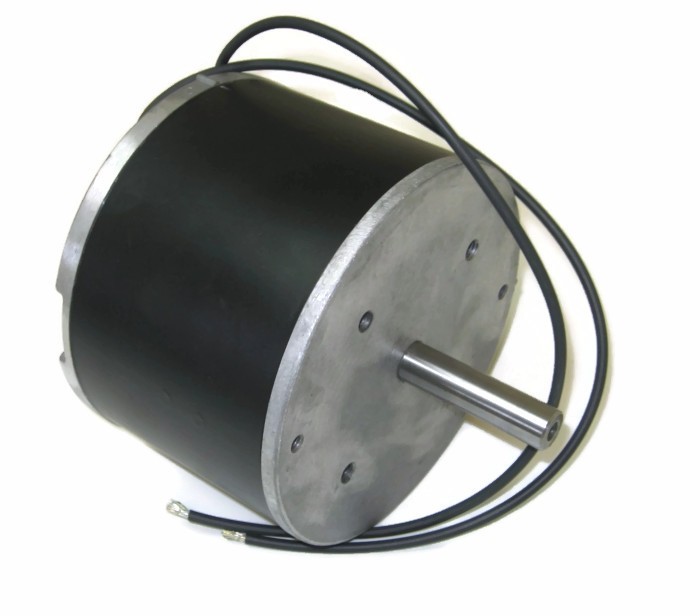

New SCOTT/IMPERIAL ELECTRIC Reel Motor; SCO-P56AN230, 9915.0042, P56AN227, P56AN230
$594.99
Specifications
| UNIT TYPE | Reel Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| AMP | 35 |
| POWER | 0.25kW / 0.33HP |
| ROTATION | CCW |
| RPM | 650 |
| OD | 150.8mm/5.937in |
| LENGTH | 172mm/6.772in |
| Shaft OD | 15.9mm/0.626in |
| SHAFT | Keyway |
| ADD’L INFO | (2) 432mm Long Leads-No Terminals; (4) 5/16-18 Threaded Holes On Front Plate; 5 Minute Duty Cycle |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | P56AN230 |
| HANNAY REEL MOTORS | 9915.0042 |
| J&N ELECTRICAL PRODUCTS | 430-22007 |
| SCOTT/IMPERIAL ELECTRIC | P56AN227, P56AN230 |
