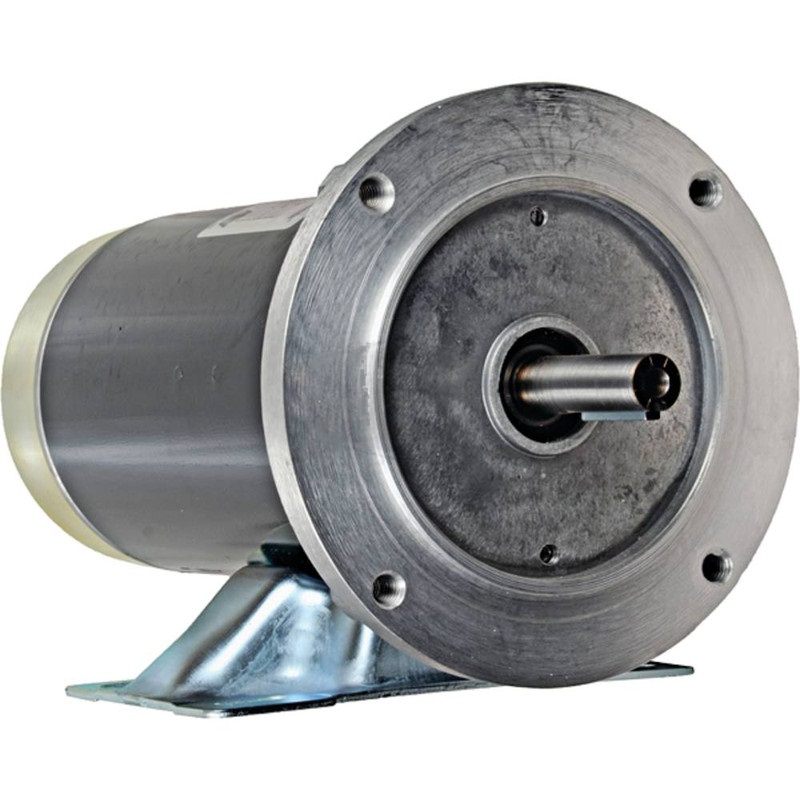

New SCOTT/IMPERIAL ELECTRIC Spreader Motor for SNOW-EX SP7500, SP7550, SP9300 & SP9500 Salt Spreaders; SCO-4BB1601, 4BB01601, 4BB1601, 4BC1602
$929.99
Specifications
| UNIT TYPE | Spreader Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| AMPS | 40 |
| FIELD TYPE | Permanent Magnet |
| HP | 0.5 |
| LENGTH | 11.811″ |
| LENGTH | 300 mm |
| OD | 117.600 mm |
| OD | 4.630″ |
| POWER | 0.373 kw |
| ROTATION DIRECTION | Reversible |
| RPM | 1800 |
| SHAFT | 4.7mm Keyway |
| SHAFT OD | 0.622″ |
| SHAFT OD | 15.800mm |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| WARRANTY | 1 Year |
| ADD’L INFO | (4) 3/8-16 Threaded Holes in DE Housing |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 4BB1601 |
| J&N ELECTRICAL PRODUCTS | 430-22067 |
| SCOTT/IMPERIAL ELECTRIC | 4BB01601, 4BB1601, 4BC1602 |
