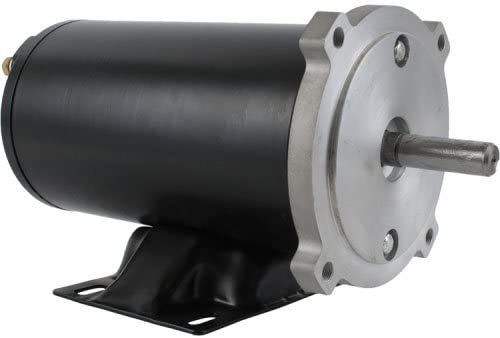

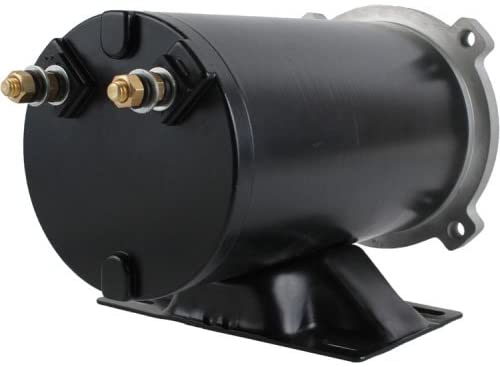

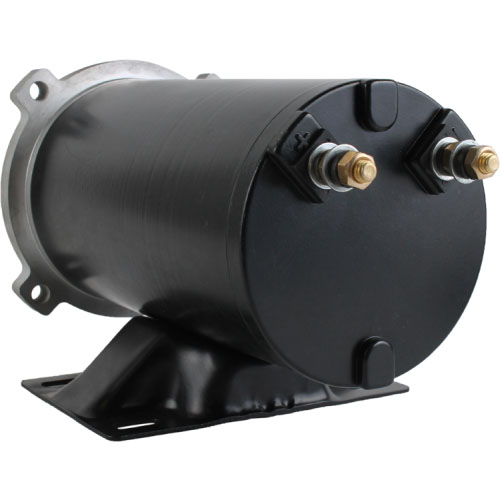

NEW Spreader Motor for SNOW-EX SP7500, SP7550, SP9300 & SP9500 Applications; 430-22165, 108046, 108047.00, C4D17NK10B, C4D17NK68, C4D17NK6B, C4D17NK73, 4BB-01601, 4BB-1601
Original price was: $587.99.$557.31Current price is: $557.31.
Specifications
| UNIT TYPE | Spreader Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| POWER | 0.373 kw |
| HP | 0.5 |
| AMPS | 20 |
| RPM | 1800 |
| ROTATION DIRECTION | Reversible |
| OD | 120 mm |
| OD | 4.724″ |
| SHAFT OD | 0.630″ |
| SHAFT OD | 16mm |
| LENGTH | 10.827″ |
| LENGTH | 275 mm |
| TERMINAL 2 SIZE | 5/16-18 |
| TERMINAL 3 SIZE | 5/16-18 |
| SHAFT | 5/8″ with Keyway |
| WARRANTY | 1 Year |
| INCLUDES | Four 3/8-16 Hole in the DE Housing, Studs On Rear |
