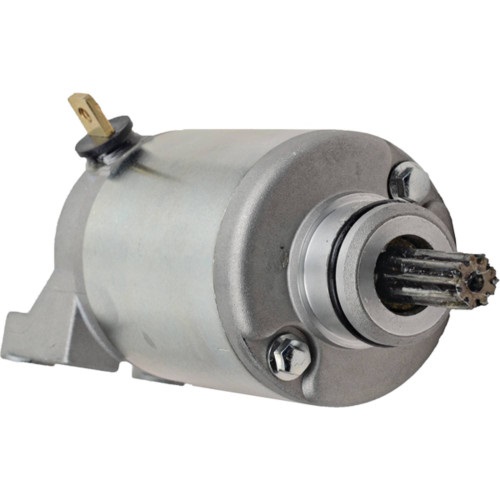

NEW Starter APRILIA Scarabeo 125, Scarabeo 150, Scarabeo 200 & CAN-AM Rally 175; 410-52257, AP0296390, 420-296-390, 711-296-390, 228000-8820; LESTER 18813
$119.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| POWER | 0.600 kw |
| HP | 0.805 |
| CONDITION | New |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.445″ |
| GEAR OD | 11.300mm |
| MOUNT HOLE ID 1 | 6mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| M5-0.8 Battery Tab |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| APRILIA | AP0296390 |
| ARROWHEAD | SMU0286, SND0502 |
| BOMBARDIER | 420-296-390, 711-296-390 |
| DENSO | 228000-8820 |
| J&N ELECTRICAL PRODUCTS | 410-52257 |
| LESTER | 18813 |
| SEA-DOO | 20-296-390, 711-296-390 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Aprilia | Scarabeo 125 | 125cc | 1999, 2000, 2001, 2002, 2003, 2004 |
| Aprilia | Scarabeo 150 | 150cc | 1999, 2000, 2001, 2002, 2003, 2004 |
| Aprilia | Scarabeo 200 | 200cc | 1999, 2000, 2001, 2002, 2003, 2004 |
| Can-Am | Rally 175 | 176cc | 2003, 2004 |
