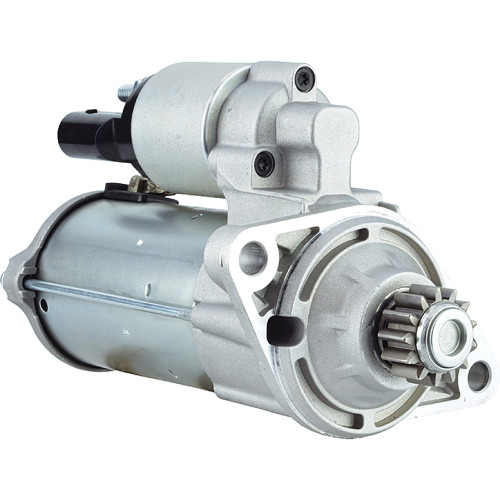

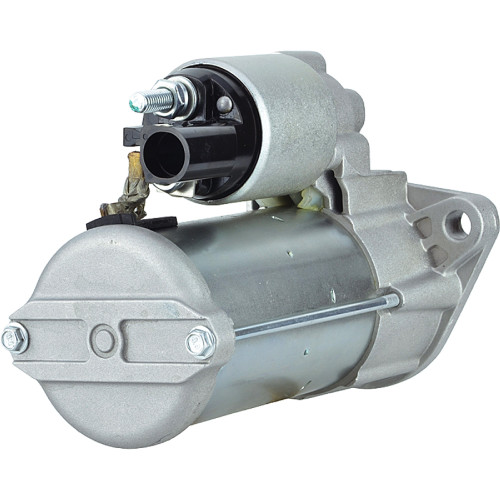

NEW Starter c/w START-STOP System for AUDI A3, S3 Auto & Light Trucks; 410-24378, 0001179506, 0001179507, LRS03856, 02E911-024B; LESTER 30236
$219.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| START STOP SYSTEM COMPATIBLE | TRUE |
| VOLT | 12 |
| POWER | 1.500 kw |
| HP | 2.012 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 13 |
| GEAR OD | 1.343″ |
| GEAR OD | 34.100mm |
| LENGTH | 222.700 mm |
| LENGTH | 8.768″ |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| REGISTRY OD | 3.102″ |
| REGISTRY OD | 78.800mm |
| MOUNTING EAR DISTANCE 1 | 128.900mm |
| MOUNTING EAR DISTANCE 1 | 5.075″ |
| WARRANTY | 1 Year |
| ADD’L INFO | M8-1.25 B+ Stud, Spade S Terminal Encased In Plastic Housing |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 410-24378 |
| BOSCH | 0001179506, 0001179507 |
| LESTER | 30236 |
| LUCAS ELECTRIC | LRS03856 |
| VOLKSWAGEN | 02E911-024B |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2017 | AUDI | A3 | 2.0L |
| 2017 | AUDI | A3 QUATTRO | 2.0L |
| 2017 | AUDI | S3 | 2.0L |
