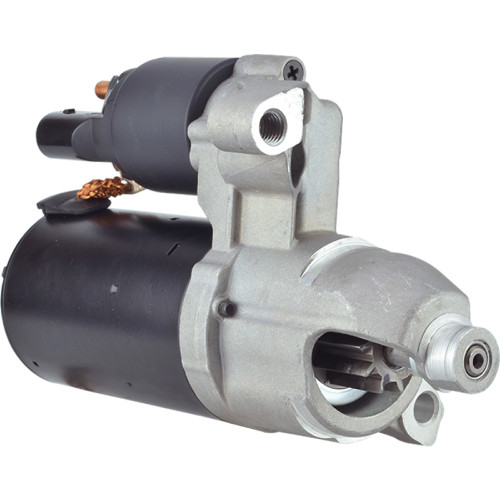

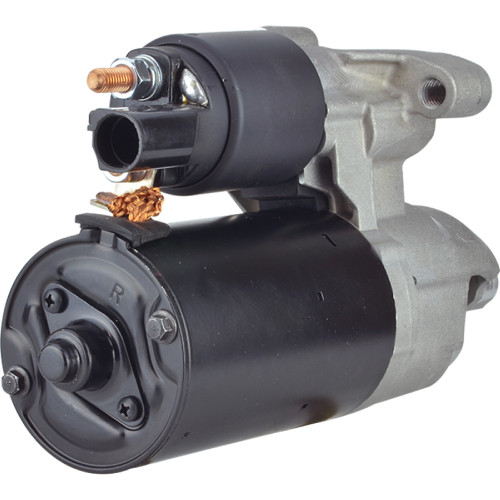

NEW Starter c/w START-STOP System for AUDI A6, A8, Q5, S4, S5 & SQ5 Auto & Light Trucks; 410-24373, 0001138069, 0001138070, 06E911-021F; LESTER 16003
$179.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| START STOP SYSTEM COMPATIBLE | TRUE |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.256″ |
| GEAR OD | 31.900mm |
| LENGTH | 242 mm |
| LENGTH | 9.528″ |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | M12x1.75 |
| MOUNT HOLE 2 TYPE | Threaded |
| REGISTRY OD | 2.598″ |
| REGISTRY OD | 66mm |
| WARRANTY | 1 Year |
| ADD’L INFO | M8-1.25 B+ Stud, Spade S Terminal Encased In Plastic Housing |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 410-24373 |
| BOSCH | 0001138069, 0001138070 |
| LESTER | 16003 |
| LUCAS ELECTRIC | LRS03822 |
| VOLKSWAGEN | 06E911-021F |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2013 - 2015 | AUDI | A6 QUATTRO | 3.0L |
| 2013 - 2016 | AUDI | S4 | 3.0L |
| 2013 - 2017 | AUDI | Q5 | 3.0L |
| 2013 - 2017 | AUDI | S5 | 3.0L |
| 2014 - 2017 | AUDI | SQ5 | 3.0L |
| 2016 - 2017 | AUDI | A8 QUATTRO | 3.0L |
