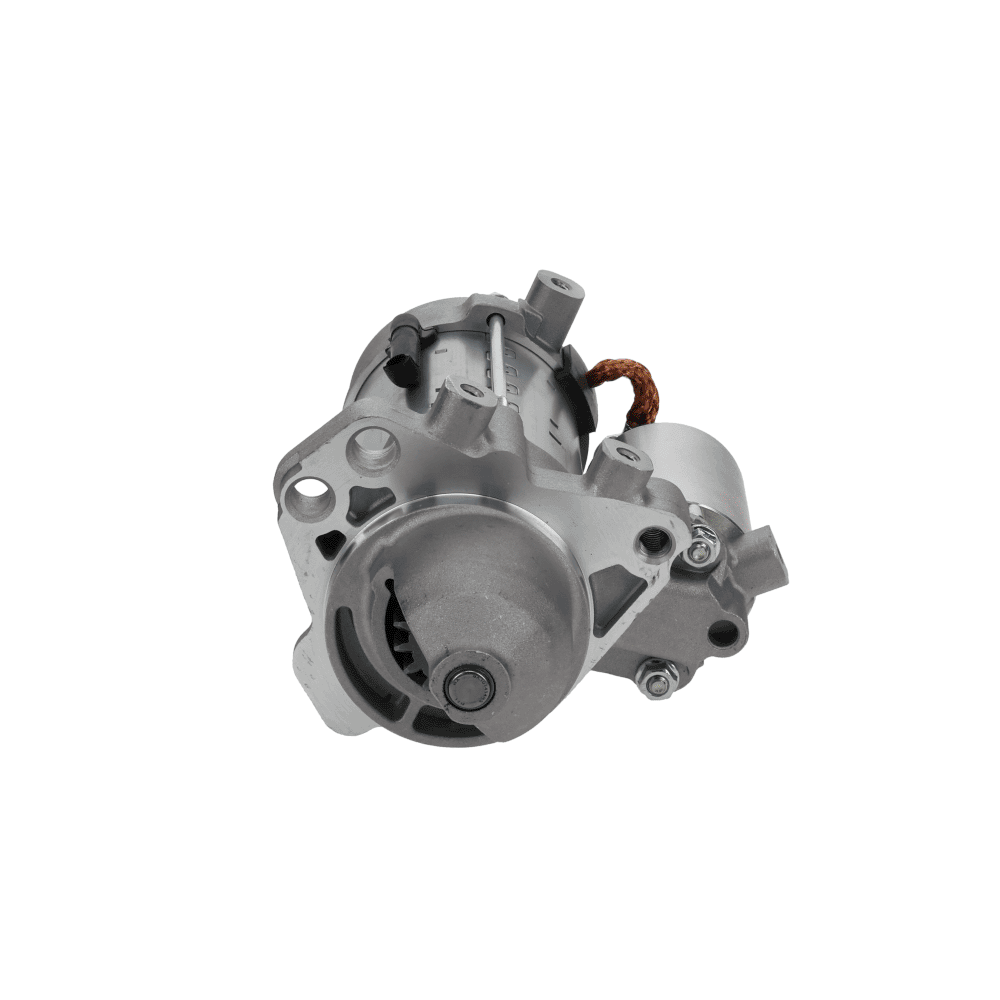

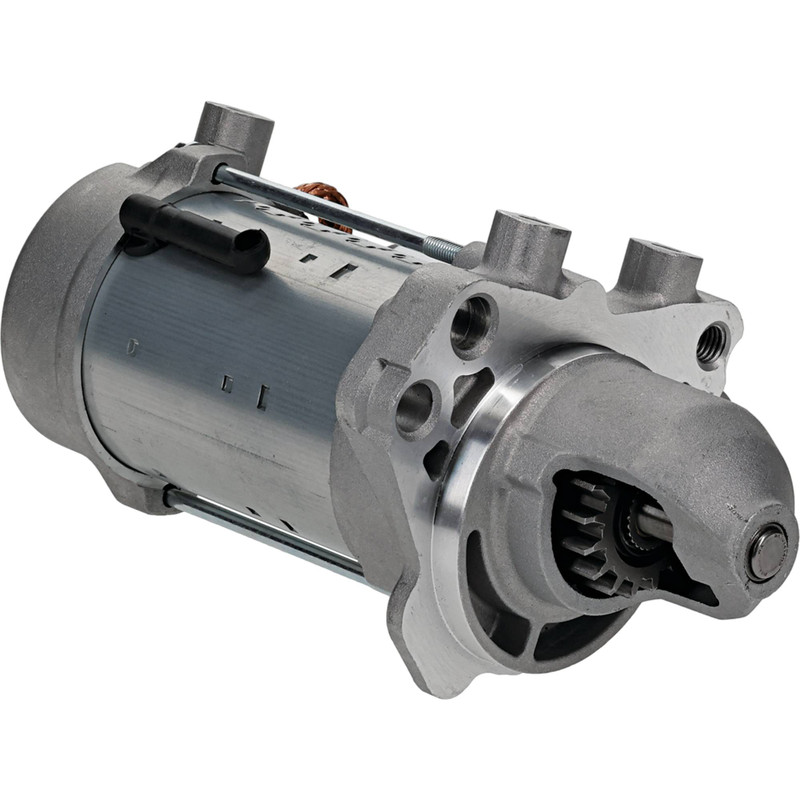

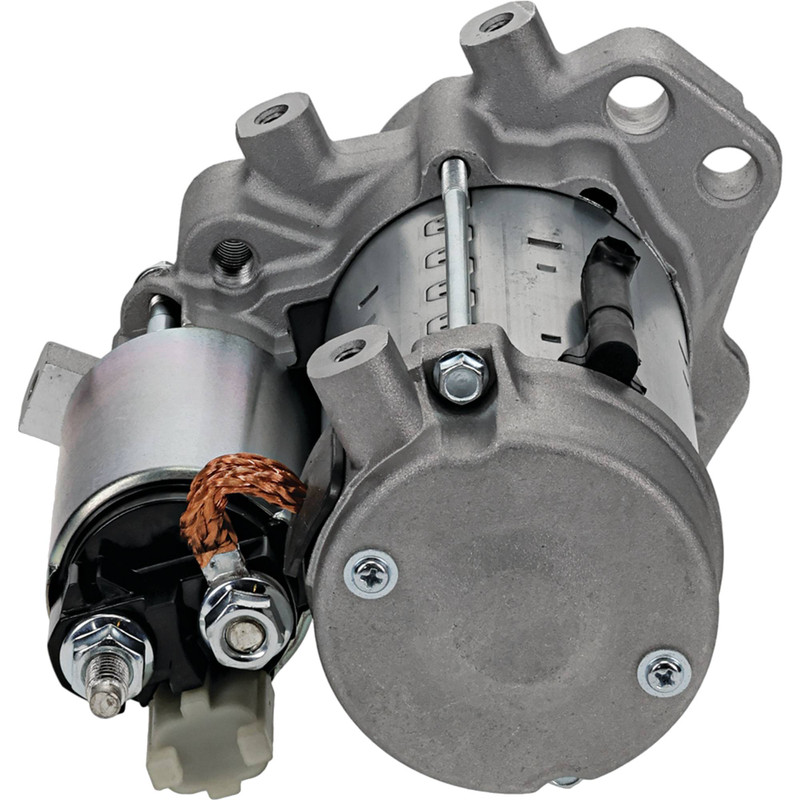

NEW Starter c/w START-STOP System for BUICK Enclave, Lacrosse, Regal & OTH Auto & Light Trucks; 410-52633, 12665560, 12667973; LESTER 16349
$234.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Planetary Gear Reduction (PLGR) |
| START STOP SYSTEM COMPATIBLE | TRUE |
| HOUSING ROTATABLE | FALSE |
| VOLT | 12 |
| POWER | 1.600 kw |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 17 |
| GEAR OD | 42.600mm |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | 12mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | M10-1.5 |
| MOUNT HOLE 3 TYPE | Threaded |
| REGISTRY OD | 75mm |
Part Number & Interchanges
Part fit
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 410-52633 |
| DENSO | 438000-2140 |
| GENERAL MOTORS | 12665560, 12667973 |
| LESTER | 16349 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2016 - 2019 | CADILLAC | ATS | 3.6L |
| 2016 - 2019 | CADILLAC | CT6 | 3.0L |
| 2016 - 2019 | CADILLAC | CT6 | 3.6L |
| 2016 - 2019 | CADILLAC | CTS | 3.6L |
| 2017 - 2019 | BUICK | LACROSSE | 3.6L |
| 2017 - 2019 | CADILLAC | XT5 | 3.6L |
| 2018 - 2019 | BUICK | ENCLAVE | 3.6L |
| 2018 - 2019 | BUICK | REGAL SPORTBACK | 3.6L |
| 2018 - 2019 | CHEVROLET | TRAVERSE | 3.6L |
