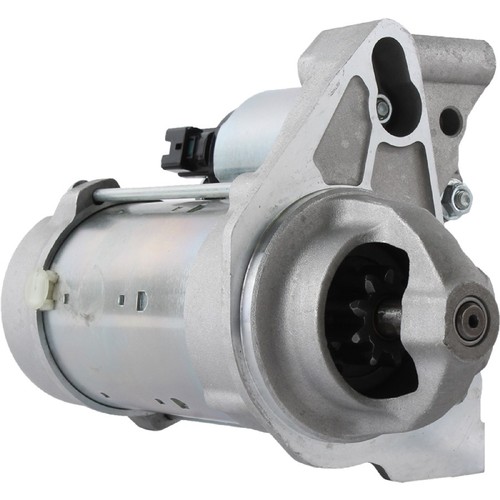

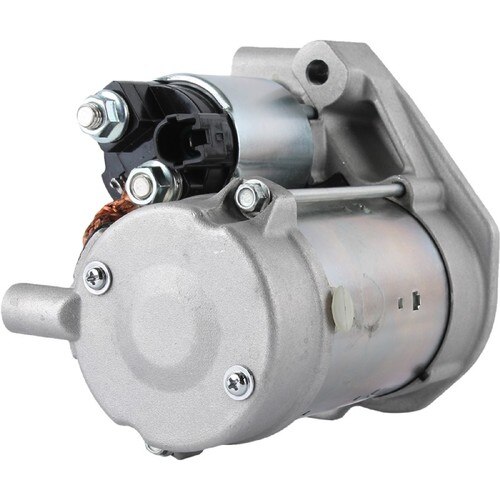

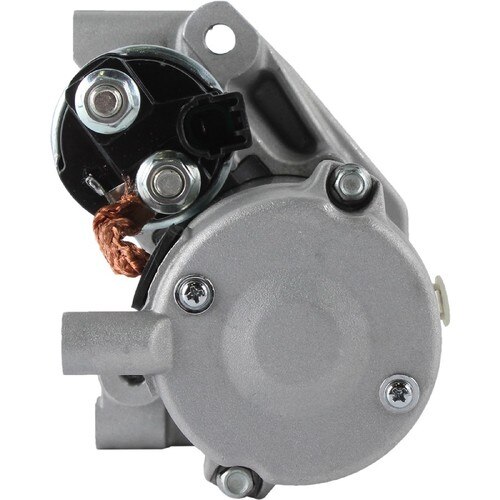

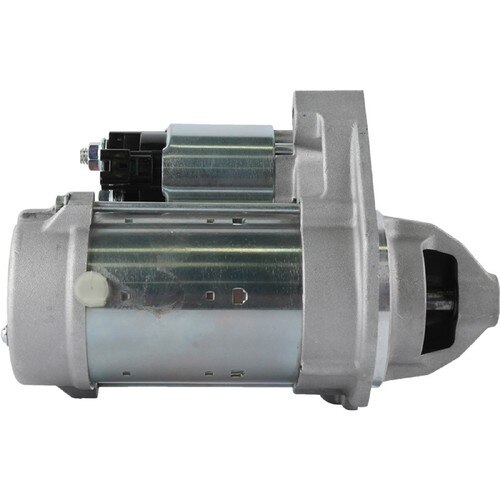

NEW Starter c/w START-STOP System for LEXUS LX570, TOYOTA Land Cruiser, Sequoia & Tundra; 410-52467, 28100-0S050, 28100-38080; LESTER 19209
$184.99
Search: USED ON EARLIER MODELS
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| START STOP SYSTEM COMPATIBLE | TRUE |
| VOLT | 12 |
| POWER | 1.600 kw |
| HP | 2.146 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| LENGTH | 148 mm |
| LENGTH | 5.827″ |
| MOUNT HOLE ID 1 | M10x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M10x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| REGISTRY OD | 2.906″ |
| REGISTRY OD | 73.800mm |
| WARRANTY | 1 Year |
| ADD’L INFO | M8-1.25 B+ & Motor Studs, Spade S Terminal, 102.5mm Mounting Hole Center To Center |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SND0786 |
| BOSCH | SR3296X |
| DENSO | 280-0417, 428000-909, 428000-9090, 428000-9091 |
| LESTER | 19209 |
| TOYOTA | 28100-0S050, 28100-38080 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2011 - 2018 | LEXUS | LX570 | 5.7L |
| 2011 - 2018 | TOYOTA | LANDCRUISER | 5.7L |
| 2011 - 2018 | TOYOTA | SEQUOIA | 5.7L |
| 2011 - 2018 | TOYOTA | TUNDRA | 5.7L |
