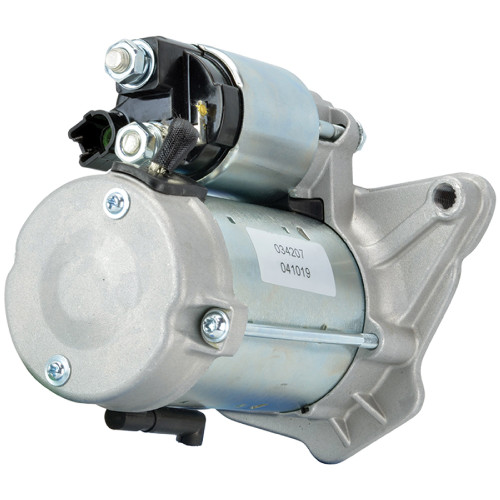

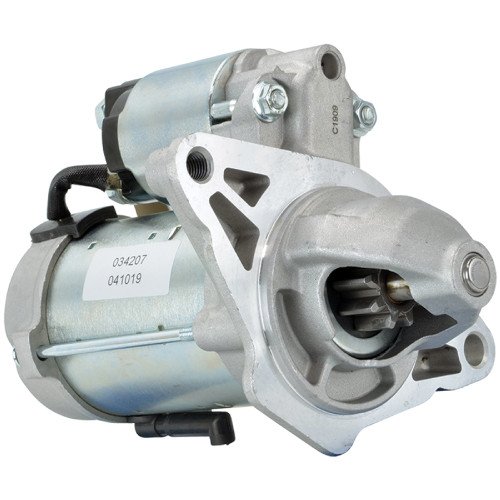

NEW Starter c/w START-STOP System for SCION iQ, 1.3L Auto & Light Truck; 410-52606, 28100-47200, 428000-8021; LESTER 10988
$279.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| START STOP SYSTEM COMPATIBLE | TRUE |
| VOLT | 12 |
| POWER | 1.500 kw |
| HP | 2.012 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.102″ |
| GEAR OD | 28mm |
| LENGTH | 139 mm |
| LENGTH | 5.472″ |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | M10x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| REGISTRY OD | 2.913″ |
| REGISTRY OD | 74mm |
| MOUNTING EAR DISTANCE 1 | 138.750mm |
| MOUNTING EAR DISTANCE 1 | 5.463″ |
| WARRANTY | 1 Year |
| ADD’L INFO | M8 B+ & Motor Studs, Spade S Terminal Inside Plastic Plug |
Part Number & Interchanges
Part fit
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 410-52606 |
| DENSO | 428000-8021 |
| LESTER | 10988 |
| TOYOTA | 28100-47200 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2012 - 2015 | SCION | iQ | 1.3L |
