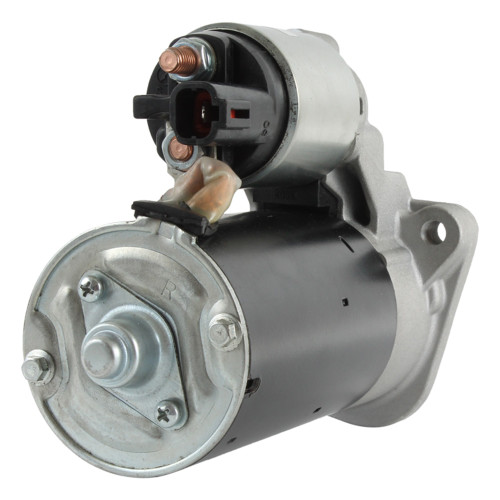

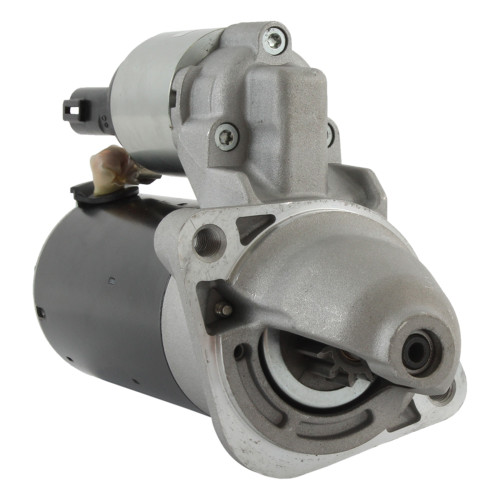

October 22, 2022NEW Starter c/w START-STOP System used on KIA RIO & SOUL Auto & Light Trucks; 410-24340, 36100-2B302, 0-001-138-055, 0-001-138-056; LESTER 32671
$209.99
Specifications
UNIT TYPE | Starter |
ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
START STOP SYSTEM COMPATIBLE | TRUE |
POWER | 1.400 kw |
HP | 1.877 |
ROTATION DIRECTION | Clockwise |
NUMBER OF TEETH | 11 |
GEAR OD | 1.142″ |
GEAR OD | 29mm |
LENGTH | 209.200 mm |
LENGTH | 8.236″ |
MOUNT HOLE ID 1 | M10x1.25 |
MOUNT HOLE 1 TYPE | Unthreaded |
MOUNT HOLE ID 2 | M10x1.25 |
MOUNT HOLE 2 TYPE | Unthreaded |
REGISTRY OD | 2.236″ |
REGISTRY OD | 56.800mm |
MOUNTING EAR DISTANCE 1 | 3.169″ |
MOUNTING EAR DISTANCE 1 | 80.500mm |
WARRANTY | 1 Year |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | SBO0355 |
BOSCH | 0-001-138-055, 0-001-138-056 |
HYUNDAI | 36100-2B302 |
J&N ELECTRICAL PRODUCTS | 410-24340 |
LESTER | 32671 |
LUCAS ELECTRIC | LRS02458 |
Part fit
Year | Make | Model | Engine |
---|---|---|---|
Year | Make | Model | Engine |
2012 - 2015 | KIA | SOUL | 1.6L |
2012 - 2016 | KIA | RIO | 1.6L |
