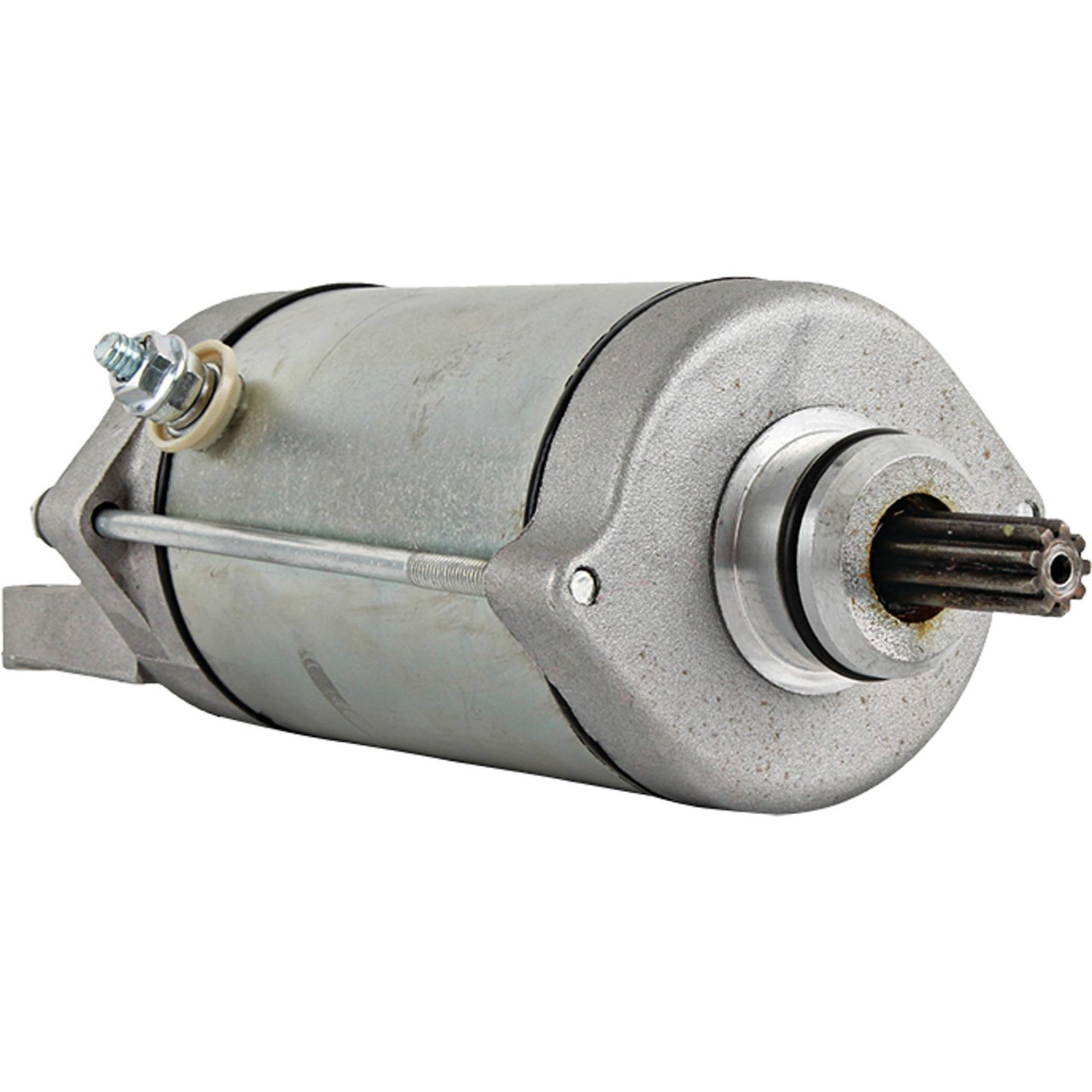

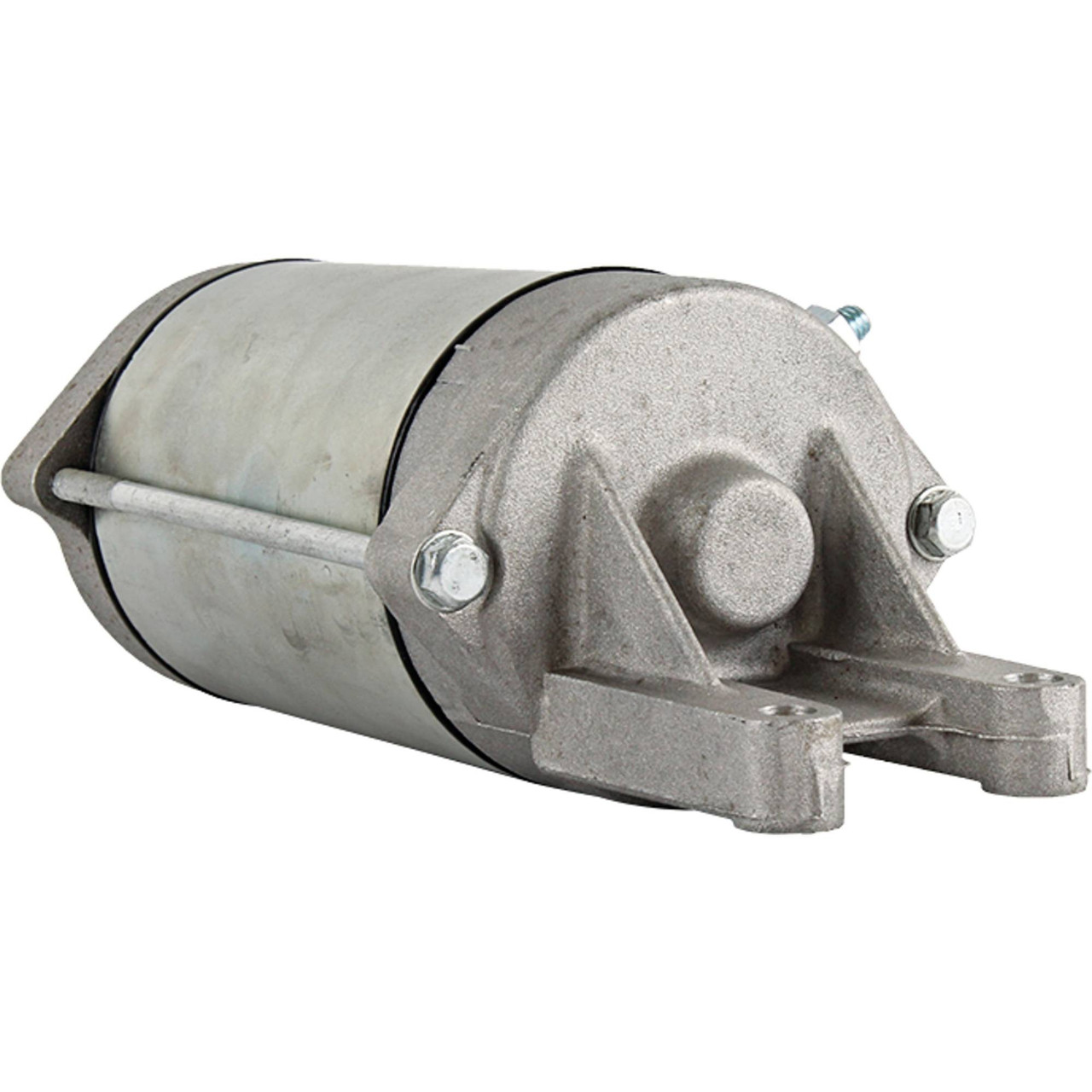

NEW Starter for APRILIA Atlantic 400, Atlantic 500, Scarabeo 400 & Scarabeo 500 Motorcycle/Scooter; 410-54253, 82699R, AP8560025, SM13-524; LESTER 16073
$176.76 $199.74
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.457″ |
| GEAR OD | 11.600mm |
| LENGTH | 175.300 mm |
| LENGTH | 6.902″ |
| MOUNT HOLE ID 1 | 6.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 1.425″ |
| MOUNTING EAR DISTANCE 1 | 36.200mm |
| REGISTRY OD | 1.177″ |
| REGISTRY OD | 29.900mm |
| WARRANTY | 1 Year |
| M6-1.0 Threaded B+ Stud |
