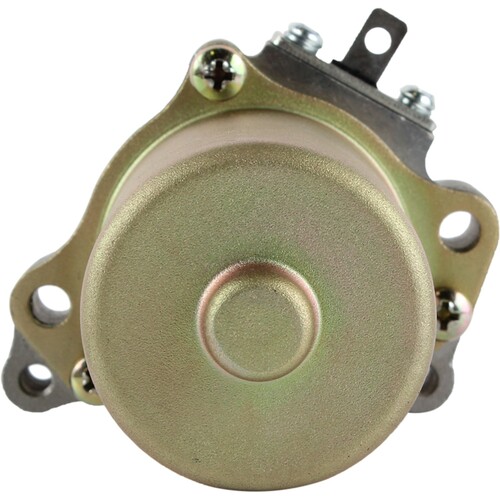

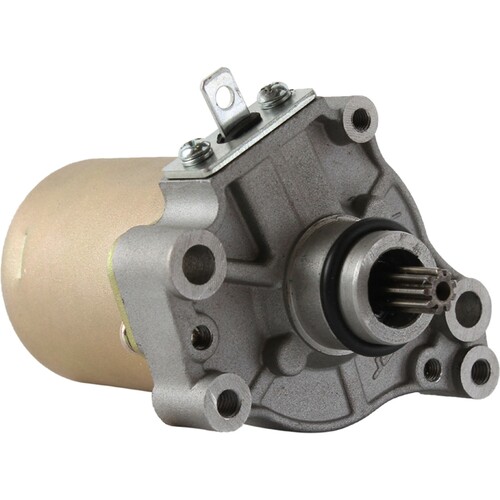

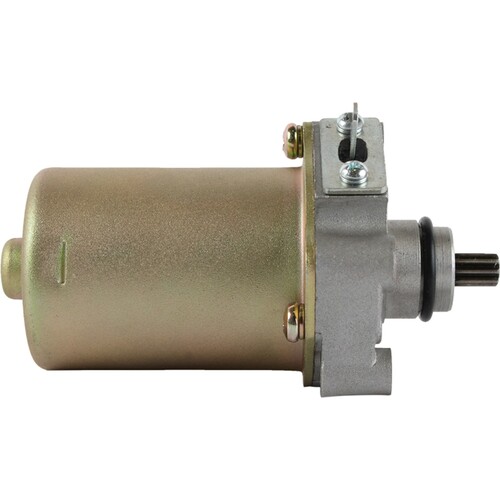

NEW Starter for APRILIA Scarabeo 100, SR 125 & SR 150 Scooters; 410-54203, 289094, 2931715, 294713, 96928R, AP8551026, SM5294, SM5419; LESTER 16088
$74.99
Specifications
| Unit Type | Starter |
| Part Type | Permanent Magnet Direct Drive (PMDD) |
| Voltage | 12 |
| Rotation | Counter Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.343″/ 8.700mm |
| LENGTH | 4.913″/ 124.800 mm |
| MOUNT HOLE ID 1 & 2 | M6x1.00 |
| MOUNT HOLE 1 & 2 TYPE | Threaded |
| REGISTRY OD | 0.846″/ 1.500mm |
| MOUNTING EAR DISTANCE 1 | 2.598″/ 66mm |
| MOUNTING EAR DISTANCE 2 | 2.598″/ 66mm |
| MOUNTING EAR DISTANCE 3 | 2.756″/ 70mm |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SCH0103 |
| J & N | 410-54203 |
| APRILIA | 289094, 2931715, 294713, 96928R, AP8551026 |
| HI LEVEL | STA0103 |
| SOCIETA GENERALE RICAMBI | 17.8165, 17.81658 |
| MITSUBA | SM5294, SM5419 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1999 - 2001 | APRILIA | SR 125 | 125cc |
| 1999 - 2001 | APRILIA | SR 150 | 150cc |
| 2001 - 2014 | APRILIA | Scarabeo 100 | 100cc |
