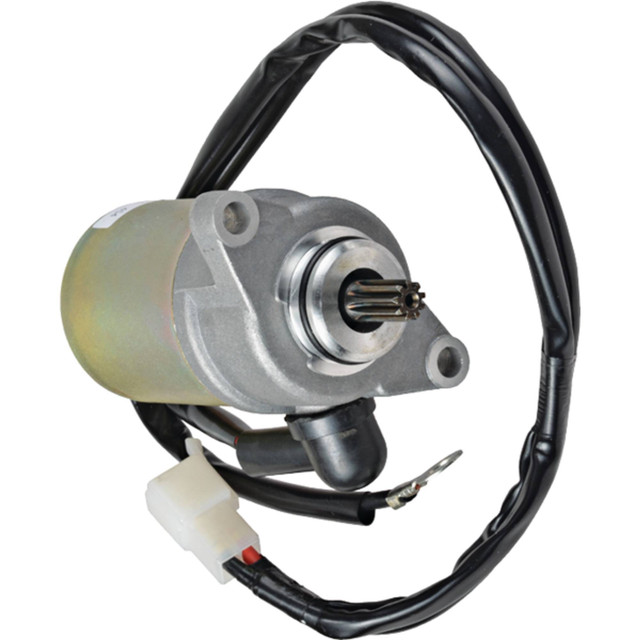

NEW Starter for APRILIA Scarbeo 100 Scooters, ARCTIC CAST 50, & 90 Youth ATV; 410-54162, AP8510653, AP8510799, 3301-142, 31200-116-000, 5FA-H1800-10-00; LESTER 18883
$129.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| VOLT |
12 |
| ROTATION DIRECTION |
Counter Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.343″ |
| GEAR OD |
8.700mm |
| MOUNT HOLE ID 1 |
6.700mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| APRILIA |
AP8510653, AP8510799 |
| ARCTIC CAT |
3301-142 |
| ARROWHEAD |
SMU0487 |
| BENELLI |
R19240021A0 |
| HI LEVEL |
219508 |
| J&N ELECTRICAL PRODUCTS |
410-54162 |
| LESTER |
18883 |
| OTHER OEMS |
487480181, AP8510653, AP8510799, R19240021A0 |
| SOCIETA GENERALE RICAMBI |
17.8150, 17.81507 |
| YAMAHA |
31200-116-000, 5FA-H1800-10-00 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Aprilia |
Scarabeo 100 |
100cc |
2000 |
| Arctic Cat |
50 2×4 |
49cc |
2004, 2005 |
| Arctic Cat |
50 Y-6 |
49cc |
2004, 2005 |
| Arctic Cat |
90 Youth – 2-Stroke |
89cc |
2002, 2003, 2004 |
| Arctic Cat |
90 Youth – 2-Stroke |
89cc |
2002, 2003, 2004 |
