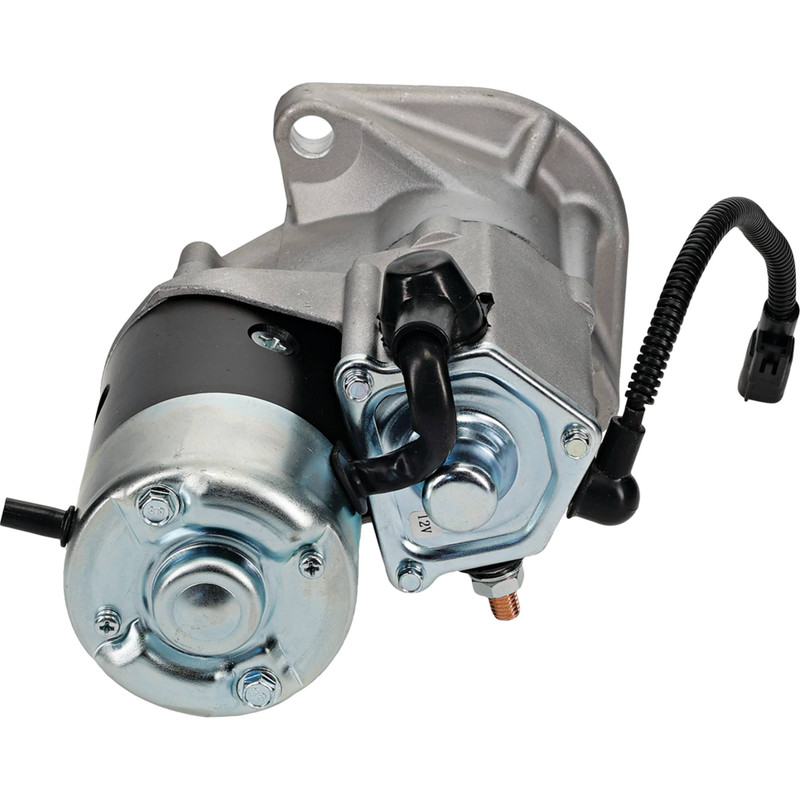

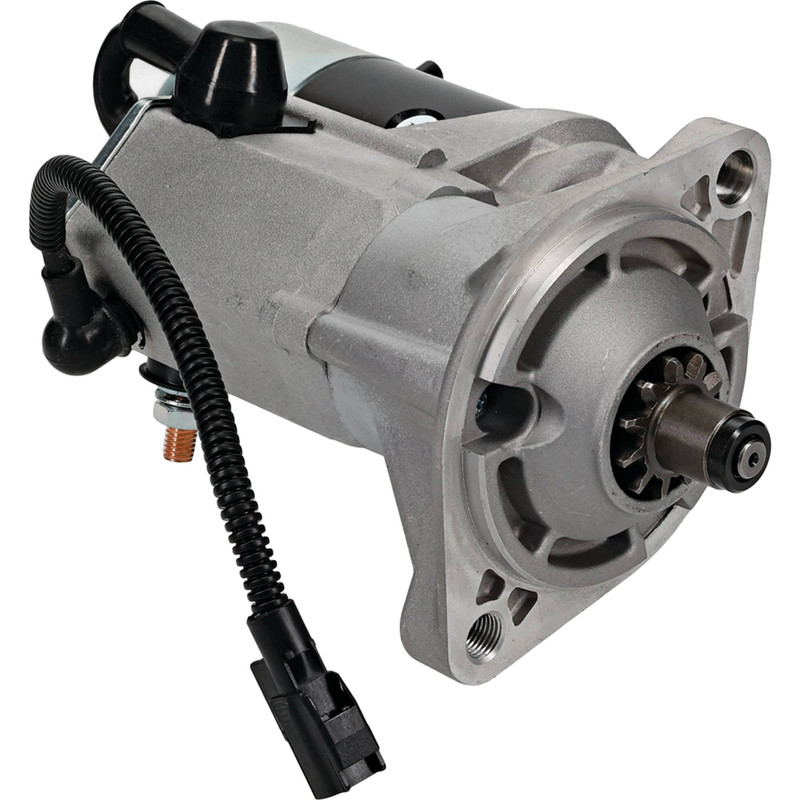

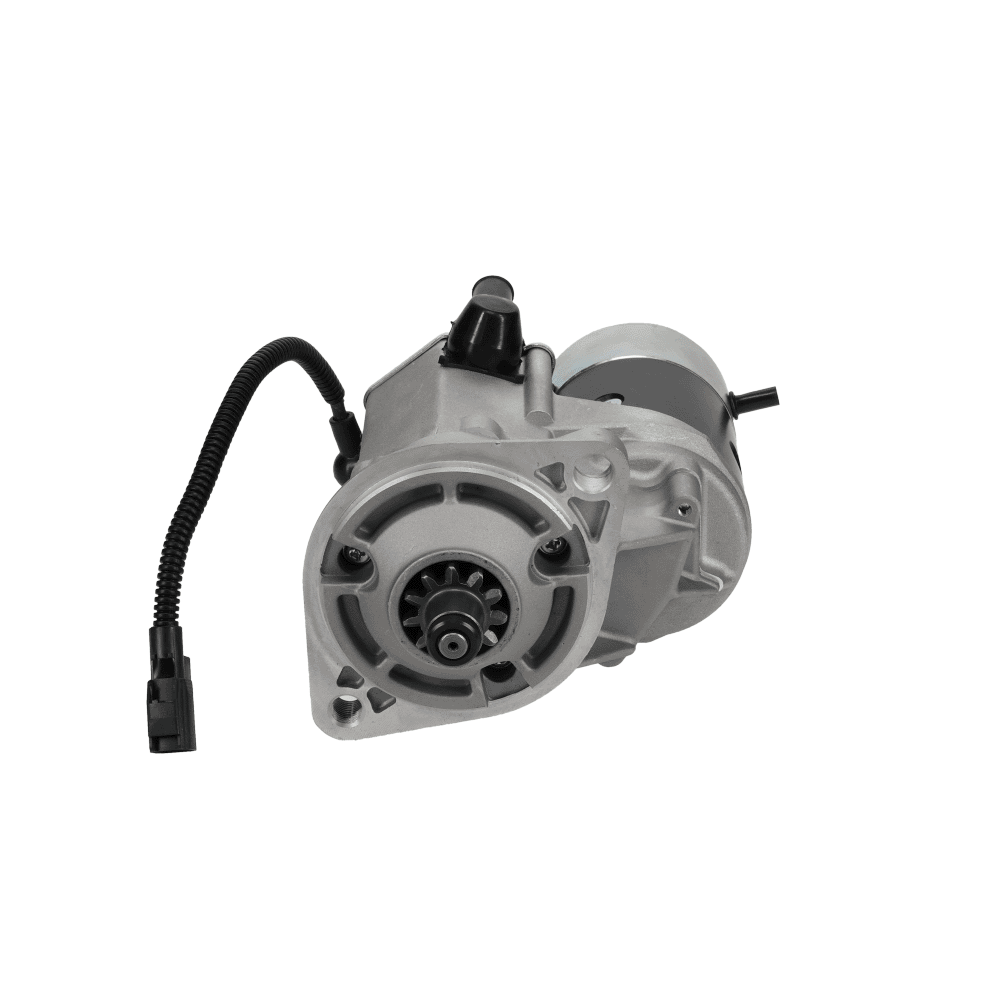

NEW Starter for ARCTIC CAT Snowmobiles, Various Models; 410-52578, 228000-6381, 228000-6383, 228000-6830, 228080-6383, 28100-2540, 28100-2541, 28100-2541A; LESTER 18937
$279.99
Specifications
| UNIT /PART TYPE |
Starter Solenoid |
| ELECTRIC STARTER TYPE |
Offset Gear Reduction (OSGR) |
| VOLT |
12 |
| POWER |
2.500 kw |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
11 |
| GEAR OD |
40.600mm |
| LENGTH |
290 mm |
| MOUNT HOLE ID 1 |
15mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE ID 2 |
M14-1.5 |
| MOUNT HOLE 2 TYPE |
Threaded |
| REGISTRY OD |
105mm |
| HOUSING ROTATABLE |
FALSE |
| INSULATED |
FALSE |
| JUMP START PROTECTION |
TRUE |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SND0637 |
| DENSO |
228000-6381, 228000-6383, 228000-6830, 228080-6383 |
| HINO |
28100-2540, 28100-2541, 28100-2541A, 28100-2541B, 28100-2541R |
| LESTER |
18937 |
Applications
| MAKE |
MODEL |
ENGINE |
YEAR |
| Arctic Cat |
4-Stroke Touring |
660cc |
2002, 2003 |
| Arctic Cat |
4-Stroke Trail |
660cc |
2002, 2003 |
| Arctic Cat |
Bearcat Wide Track Turbo |
660cc |
2006, 2007, 2008 |
| Arctic Cat |
Bearcat Wide Track |
660cc |
2003, 2004, 2005, 2006, 2007, 2008 |
| Arctic Cat |
Panther 660 |
|
2006, 2007, 2008 |
| Arctic Cat |
T660 Touring EFI |
|
2004, 2005, 2006, 2007, 2008 |
| Arctic Cat |
T660 Turbo ST EFI Early Build |
|
2005 |
| Arctic Cat |
T660 Turbo ST |
|
2005 |
| Arctic Cat |
T660 Turbo Touring |
|
2004, 2005, 2006, 2007 |
| Arctic Cat |
T660 Turbo |
|
2004, 2005, 2006, 2007 |
| Hino |
FA1517 (FA4J) |
5.3L – J05C-TB/T |
1998, 1999, 2000, 2001, 2002, 2003, 2004 |
| Hino |
FB1817 (FB4J) |
5.3L – J05C-TB/T |
1998, 1999, 2000, 2001, 2002, 2003, 2004 |
