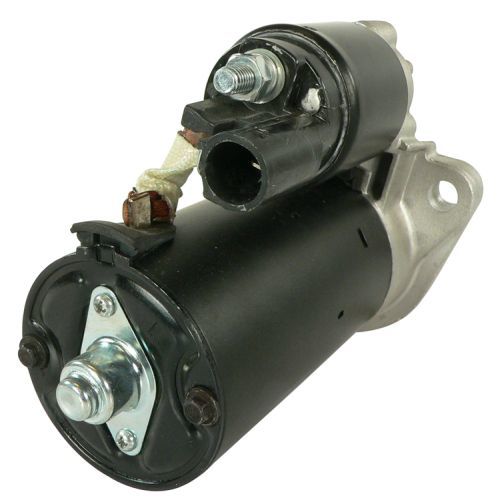

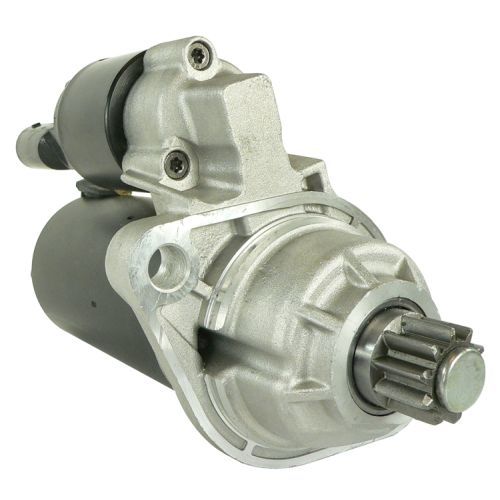

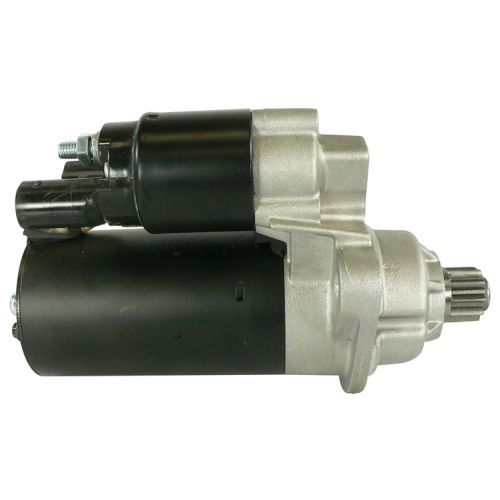

NEW Starter for AUDI & VOLKSWAGEN Applications; 410-24136, 02M-911-023N, 02M-911-023P, 02M911-023P, 02M-911-024N, 02M-911-024NX; LESTER 17972
$159.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Gear Reduction (PMGR) |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| POWER |
1.700 kw |
| HP |
6:43 |
| NUMBER OF TEETH |
10 |
| GEAR OD |
1.043″ |
| GEAR OD |
26.500mm |
| MOUNT HOLE ID 1 |
12.200mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SBO0185, V438176 |
| BOSCH |
0001123014, 0-001-123-014, 0001123015, 0-001-123-015, 0986020260, SR9420X |
| DELCO |
DRT0260 |
| J&N ELECTRICAL PRODUCTS |
410-24136 |
| LESTER |
17972 |
| LUCAS ELECTRIC |
LRS01674 |
| VALEO |
191366, 193171, 438176, 458218, D7GS10, TS18E3 |
| VOLKSWAGEN |
02M-911-023N, 02M-911-023P, 02M911-023P, 02M-911-024N, 02M-911-024NX |
Applications
| Make |
Model |
Engine |
Years |
Notes |
Trans |
VIN |
| Audi |
A3 |
3.2L |
2006 |
|
Standard |
|
| Audi |
TT Quattro |
3.2L/195CI V6 |
2008 – 2009 |
|
Standard |
|
| Volkswagen |
CC |
3.6L/219CI V6 |
2009 – 2015 |
|
|
|
| Volkswagen |
Passat |
3.6L/219CI V6 |
2006 – 2008 |
|
|
|
| Volkswagen |
Passat CC |
3.6L/219CI V6 |
2010 |
|
|
|
