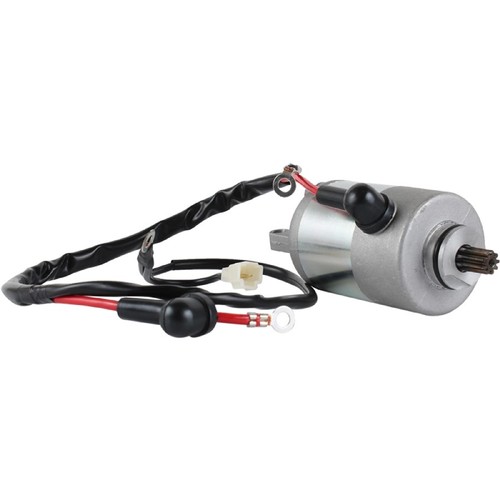

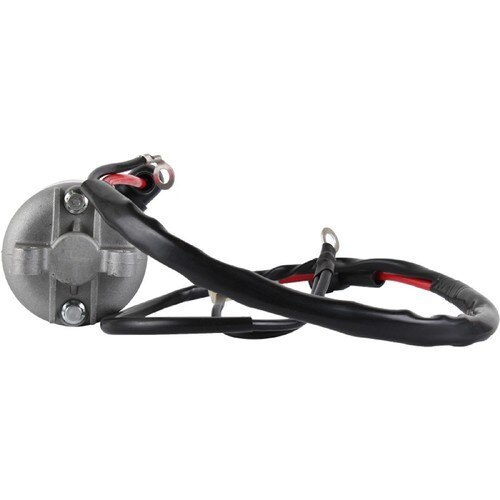

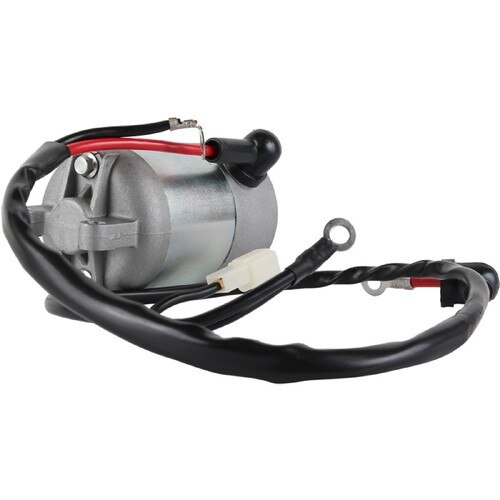

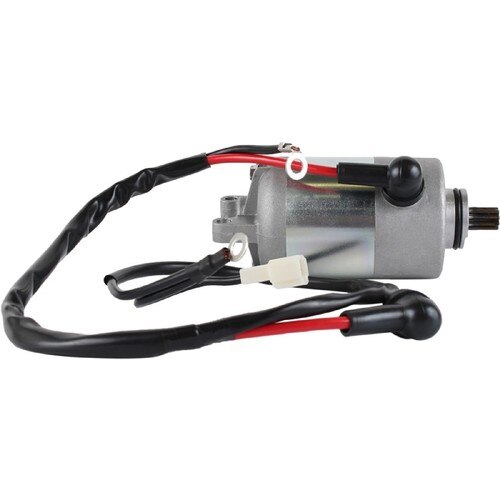

NEW Starter for BENELLI Velvet 125, Velvet 150 & YAMAHA Vino YJ125 Scooters; 410-54185, R19010111A0, 4TE-H1800-10-00; LESTER 18841
$109.99
SEARCH: 546437 (VERY SIMILAR, BUT SPLINES SHAFT LONGER,
DIFFERENT BATTERY WIRE, B+ STUD IN SLIGHTLY DIFFERENT LOCATION)
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.449″ |
| GEAR OD | 11.400mm |
| MOUNT HOLE ID 1 | 6mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0340 |
| BENELLI | R19010111A0 |
| J&N ELECTRICAL PRODUCTS | 410-54185 |
| LESTER | 18841 |
| SOCIETA GENERALE RICAMBI | 17.41011, 17.410117, 36.41011 |
| YAMAHA | 4TE-H1800-10-00 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Benelli | Velvet 125 | 125cc | 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Benelli | Velvet 150 | 150cc | 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Yamaha | YJ 125 Vino | 124cc | 2004, 2005, 2006, 2007, 2008, 2009 |
