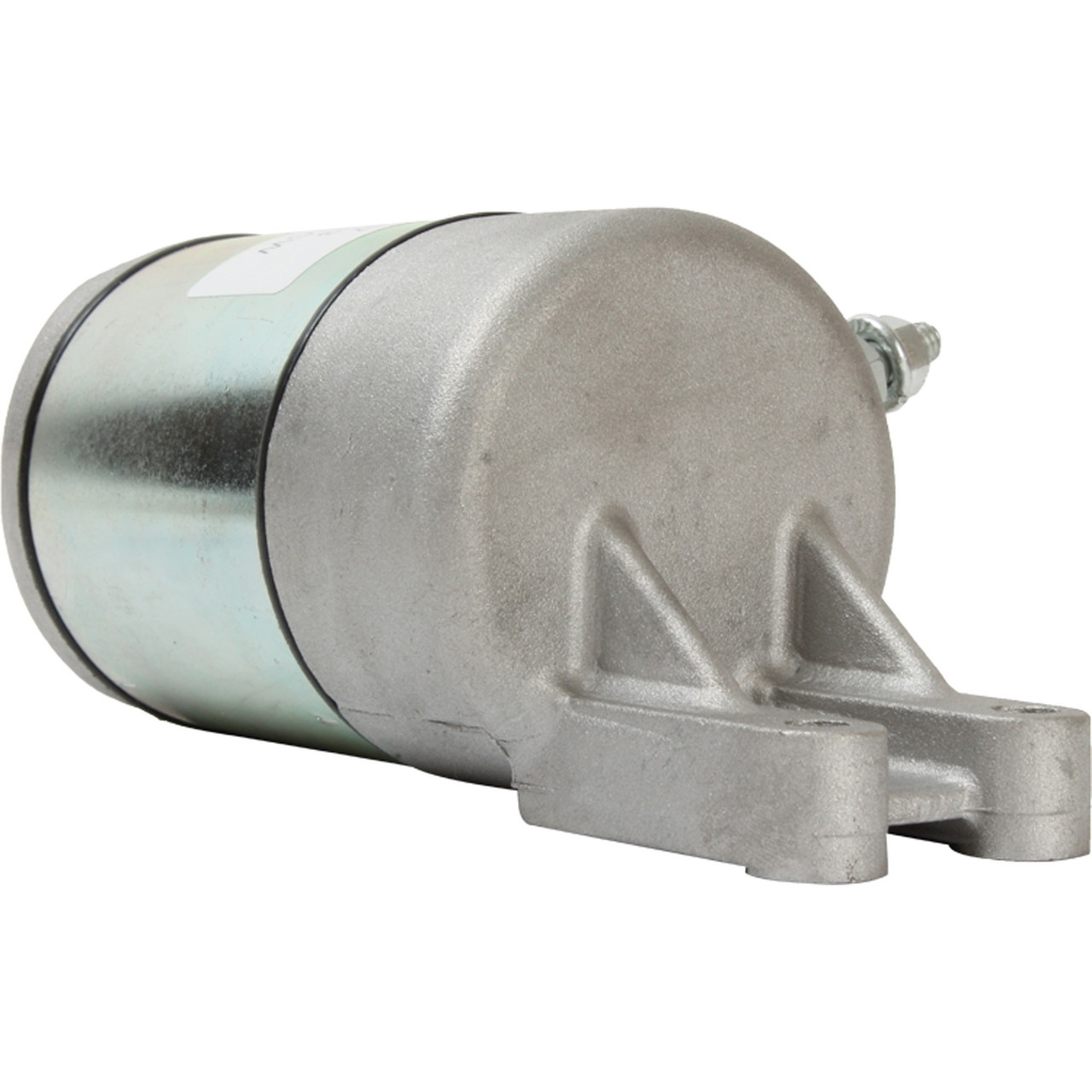

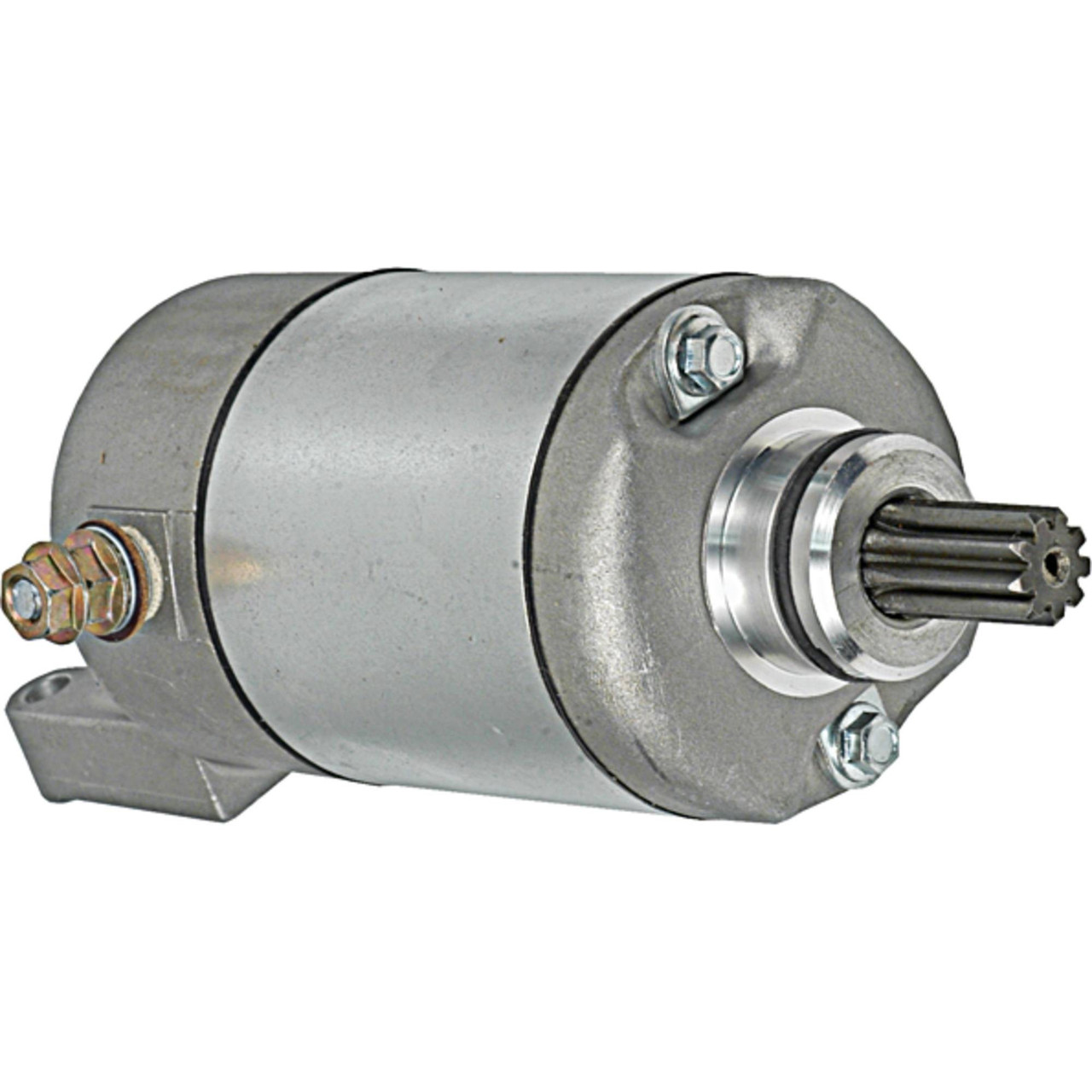

NEW Starter for CAN-AM Defender 500, Outlander 330, Outlander 400, Outlander 450 & OTH Models; 410-54079, 420-684-280, 420-684-282, 420-684-283; LESTER 18823

$109.99

Email

Specifications

UNIT TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
VOLT 12
ROTATION DIRECTION Clockwise
NUMBER OF TEETH 9
GEAR OD 0.559″
GEAR OD 14.200mm
MOUNT HOLE ID 1 6mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD SMU0287
BOMBARDIER 420-684-280, 420-684-282, 420-684-283
J&N ELECTRICAL PRODUCTS 410-54079
LESTER 18823
SEA-DOO 420-684-280

Applications

Part fit

MAKE MODEL ENGINE YEAR
Can-Am Defender 500 DPS 2017, 2018, 2019
Can-Am Defender 500 2017, 2018, 2019
Can-Am Outlander 330 2×4 HO 2004, 2005
Can-Am Outlander 330 2×4 2004, 2005
Can-Am Outlander 330 4×4 HO 2004, 2005
Can-Am Outlander 330 4×4 2004, 2005
Can-Am Outlander 400 2×4 HO 2003, 2004, 2005, 2006
Can-Am Outlander 400 2×4 2003, 2004, 2005
Can-Am Outlander 400 4×4 HO XT 2003, 2004, 2005, 2006, 2007
Can-Am Outlander 400 4×4 HO 2003, 2004, 2005, 2006, 2007, 2008
Can-Am Outlander 400 4×4 XT 2003, 2004, 2005, 2006, 2007, 2008
Can-Am Outlander 400 4×4 XT 2008
Can-Am Outlander 400 4×4 XT 2012, 2013, 2014
Can-Am Outlander 400 4×4 2003, 2004, 2005, 2006, 2007, 2008
Can-Am Outlander 400 4×4 2009, 2010, 2011, 2012, 2013, 2014, 2015
Can-Am Outlander 450 4×4 2017, 2018, 2019
Can-Am Outlander 450 6×6 2019
Can-Am Outlander 450 DPS 2017, 2018
Can-Am Outlander 450 Hunter Edition 2018
Can-Am Outlander L 450 DPS 2015, 2016
Can-Am Outlander L 450 Pro 2016
Can-Am Outlander L 450 2015, 2016
Can-Am Outlander L 570 2016
Can-Am Outlander L Max 450 DPS 2015, 2016
Can-Am Outlander L Max 450 2015, 2016
Can-Am Outlander Max 400 4×4 HO XT 2004, 2005, 2006, 2007, 2008
Can-Am Outlander Max 400 4×4 HO 2004, 2005, 2006, 2007, 2008
Can-Am Outlander Max 400 4×4 XT 2005, 2006, 2007, 2008
Can-Am Outlander Max 400 4×4 XT 2008, 2012, 2013, 2014, 2015
Can-Am Outlander Max 400 4×4 2004, 2005, 2006, 2007, 2008
Can-Am Outlander Max 400 4×4 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Can-Am Outlander Max 450 6×6 2019
Can-Am Outlander Max 450 DPS 2017, 2018
Can-Am Outlander Max 450 2017, 2018, 2019
Can-Am Traxter 500 2017, 2018, 2019
