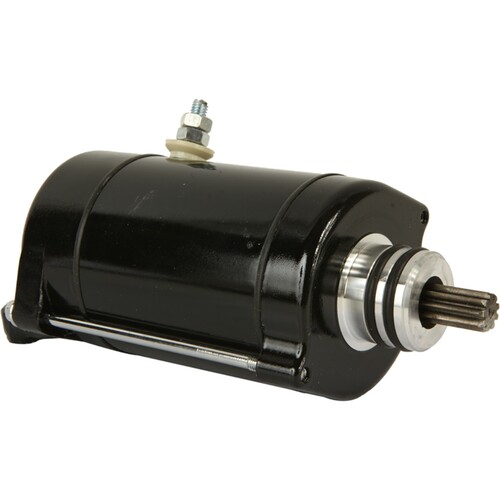

NEW Starter for CAN-AM Maverick & Spyder ATVs & SEE-DOO GTS & Spark PWC; 410-54260, 420-892-426, 420-893-830
$99.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Clockwise |
| VOLT | 12 |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.555″ |
| GEAR OD | 14.100mm |
| LENGTH | 158.500 mm |
| LENGTH | 6.240″ |
| MOUNT HOLE ID 1 | 6.400mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 1.102″ |
| MOUNTING EAR DISTANCE 1 | 28mm |
| REGISTRY OD | 1.181″ |
| REGISTRY OD | 30mm |
| WARRANTY | 1 Year |
| ADD’L INFO | M6 B+ Stud |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 410-54260, SMU0565 |
| SEA-DOO | 420-892-426, 420-893-830 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| Can-Am | Maverick 1000 Turbo R XDS | 2019 | |
| Can-Am | Maverick 1000 Turbo R XMR | 2019 | |
| Can-Am | Maverick 1000 Turbo R XRC | 2019 | |
| Can-Am | Maverick 1000 Turbo R XRS | 2019 | |
| Can-Am | Maverick 1000 Turbo R | 2019 | |
| Can-Am | Maverick 1000 Turbo XMR | 2019 | |
| Can-Am | Maverick 1000 Turbo XRC | 2019 | |
| Can-Am | Maverick 1000 Turbo | 2019 | |
| Can-Am | Maverick Max 1000 Turbo R XDS | 2019 | |
| Can-Am | Maverick Max 1000 Turbo R XRS | 2019 | |
| Can-Am | Maverick Max 1000 Turbo R | 2019 | |
| Can-Am | Maverick Max 1000 Turbo | 2019 | |
| Can-Am | Maverick X3 HO | 900cc | 2018 |
| Can-Am | Maverick X3 Max Turbo R XDS | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Max Turbo R XRS | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Max Turbo R | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Max Turbo | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Max XDS DPS | 900cc | 2017 |
| Can-Am | Maverick X3 Max XRS DPS | 900cc | 2017 |
| Can-Am | Maverick X3 Max | 900cc | 2017 |
| Can-Am | Maverick X3 Turbo R XDS | 900cc | 2017, 2018, 2019 |
| Can-Am | Maverick X3 Turbo R XMR | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Turbo R XRC | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Turbo R XRS | 900cc | 2017, 2018, 2019 |
| Can-Am | Maverick X3 Turbo R | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Turbo XMR | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Turbo XRC | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 Turbo | 900cc | 2018, 2019 |
| Can-Am | Maverick X3 | 900cc | 2017 |
| Can-Am | Spyder F3 | 1330cc | 2015, 2016, 2017, 2018 |
| Can-Am | Spyder RT (SE5) | 1330cc | 2014 |
| Can-Am | Spyder RT (SE5) | 1330cc | 2015, 2016, 2017, 2018 |
| Sea-Doo | GTS | 900cc | 2017, 2018 |
| Sea-Doo | Spark HO | 900cc | 2014 |
| Sea-Doo | Spark HO | 900cc | 2015, 2016, 2017, 2018 |
| Sea-Doo | Spark IBR | 900cc | 2015, 2016, 2017, 2018 |
| Sea-Doo | Spark TRIXX | 900cc | 2017, 2018 |
| Sea-Doo | Spark | 900cc | 2014 |
| Sea-Doo | Spark | 900cc | 2015, 2016, 2017, 2018 |
