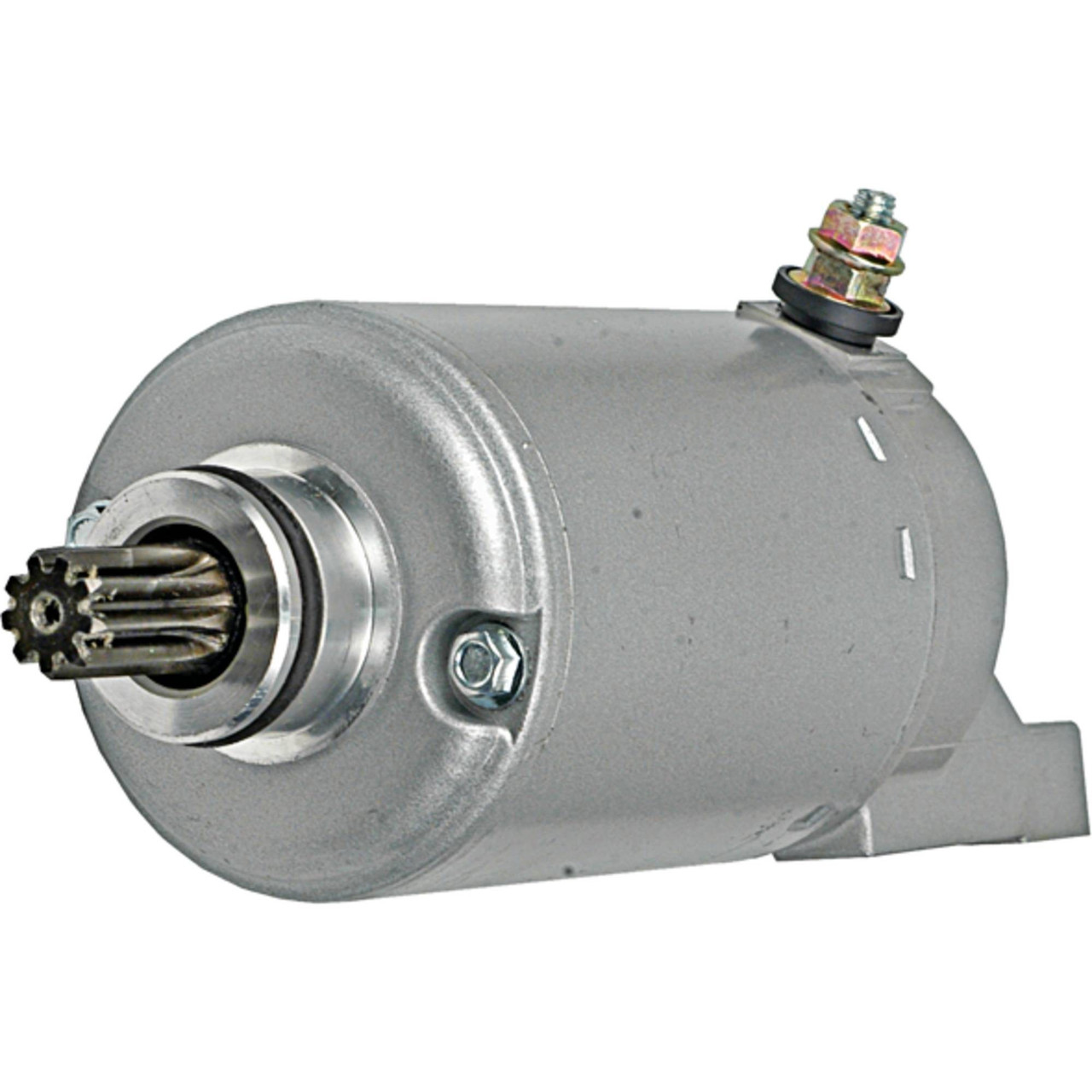

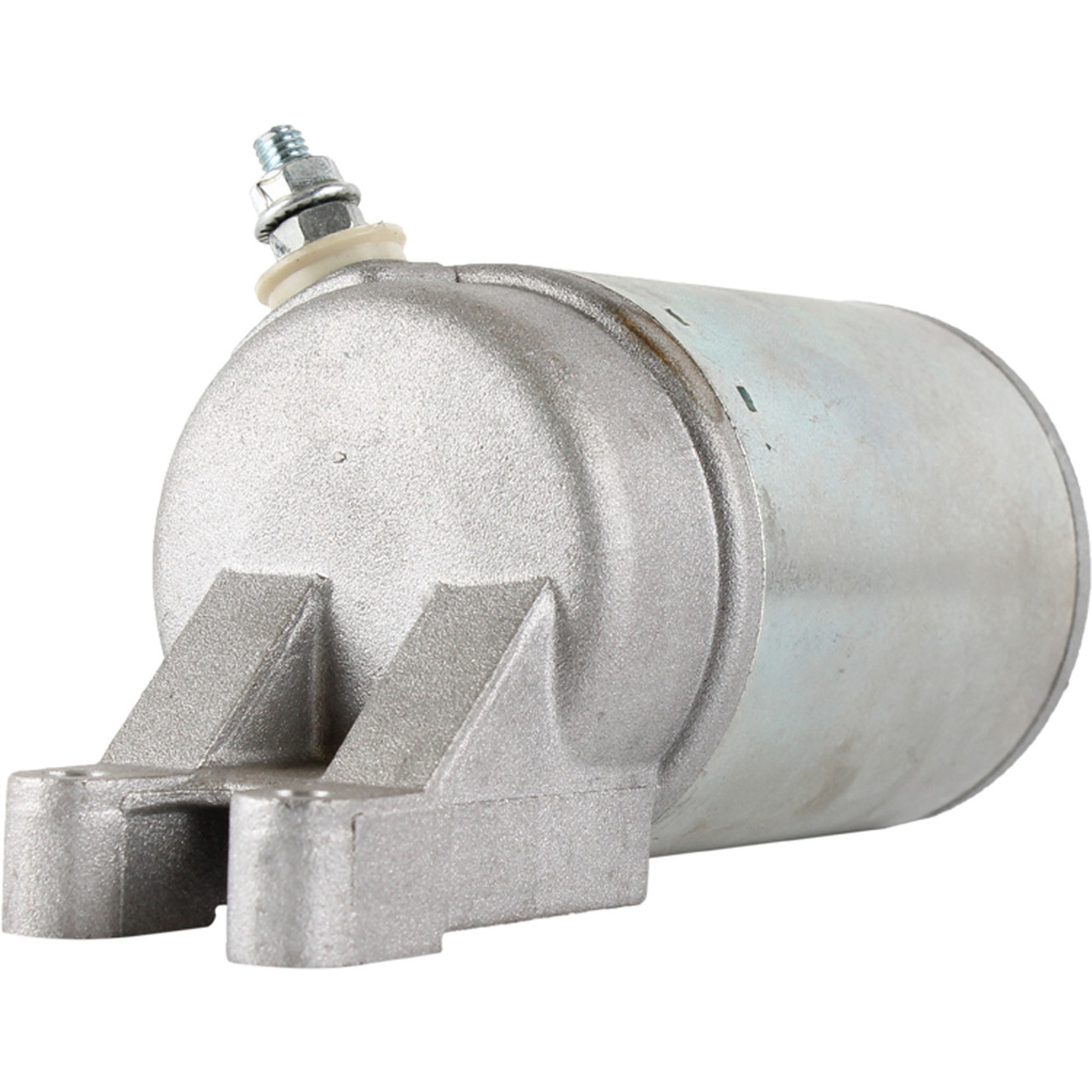

NEW Starter for CAN-AM Traxter 500, Traxter Max 500 XT & OTH Models; 410-52115, 420-296-125, 711-296-120, 711-296-125, C420-296-125, 228000-9810; LESTER 18819
$129.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| POWER | 0.700 kw |
| HP | 0.939 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.551″ |
| GEAR OD | 14mm |
| MOUNT HOLE ID 1 | 6mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| Battery Stud M6-1.0 Threaded |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0293, SND0482 |
| BOMBARDIER | 20-296-125, 711-296-120, 711-296-125 |
| DENSO | 228000-9810 |
| J&N ELECTRICAL PRODUCTS | 410-52115 |
| JOHN DEERE | C420-296-125 |
| LESTER | 18819 |
| SEA-DOO | 420-296-125, 711-296-120, 711-296-125 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Can-Am | Traxter 500 4×4 Auto XT | 2001, 2002, 2003, 2004, 2005 | |
| Can-Am | Traxter 500 5-Speed | 2001 | |
| Can-Am | Traxter 500 5-Speed | 2004, 2005 | |
| Can-Am | Traxter 500 Auto | 2001, 2002, 2003 | |
| Can-Am | Traxter 500 XL | 2001, 2002, 2003, 2004, 2005 | |
| Can-Am | Traxter 500 | 1999, 2000, 2001, 2002, 2003, 2004, 2005 | |
| Can-Am | Traxter Max 500 XT | 2004, 2005 | |
| Can-Am | Traxter Max 500 | 2003, 2004, 2005 | |
| John Deere | Trail Buck 500 | 4-Tec Rotax 498 Engine |
