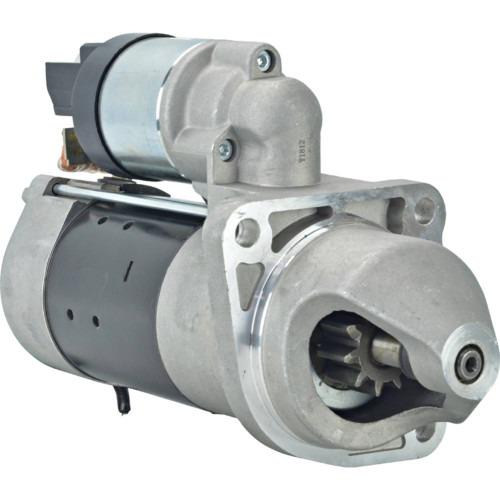

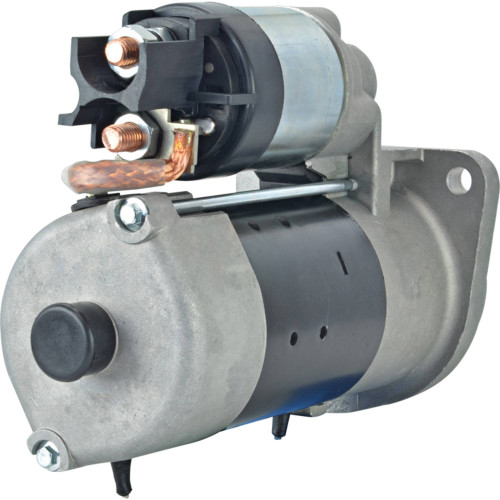

NEW Starter for CASE IH & NEW HOLLAND Tractors; 410-24336, 4800-0100, 0-001-223-507, IS 1189
$299.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Planetary Gear Reduction (PLGR) |
| VOLT |
12 |
| POWER |
2.600 kw |
| HP |
3.487 |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
10 |
| GEAR OD |
1.539″ |
| GEAR OD |
39.100mm |
| LENGTH |
11.205″ |
| LENGTH |
284.600 mm |
| MOUNT HOLE ID 1 |
10.700mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
10.700mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
3.531″ |
| MOUNTING EAR DISTANCE 1 |
89.700mm |
| MOUNTING EAR DISTANCE 2 |
3.531″ |
| MOUNTING EAR DISTANCE 2 |
89.700mm |
| MOUNTING EAR DISTANCE 3 |
126.700mm |
| MOUNTING EAR DISTANCE 3 |
4.988″ |
| REGISTRY OD |
3.496″ |
| REGISTRY OD |
88.800mm |
| JUMP START PROTECTION |
TRUE |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
IS1189, MS24, SBO0346 |
| ATLANTIC QUALITY PARTS |
4800-0100 |
| BOSCH |
0001223507, 0-001-223-507 |
| IVECO |
504015749 |
| J&N ELECTRICAL PRODUCTS |
410-24336 |
| LETRIKA/ISKRA |
IS 1189 |
| MAHLE |
MS24 |
