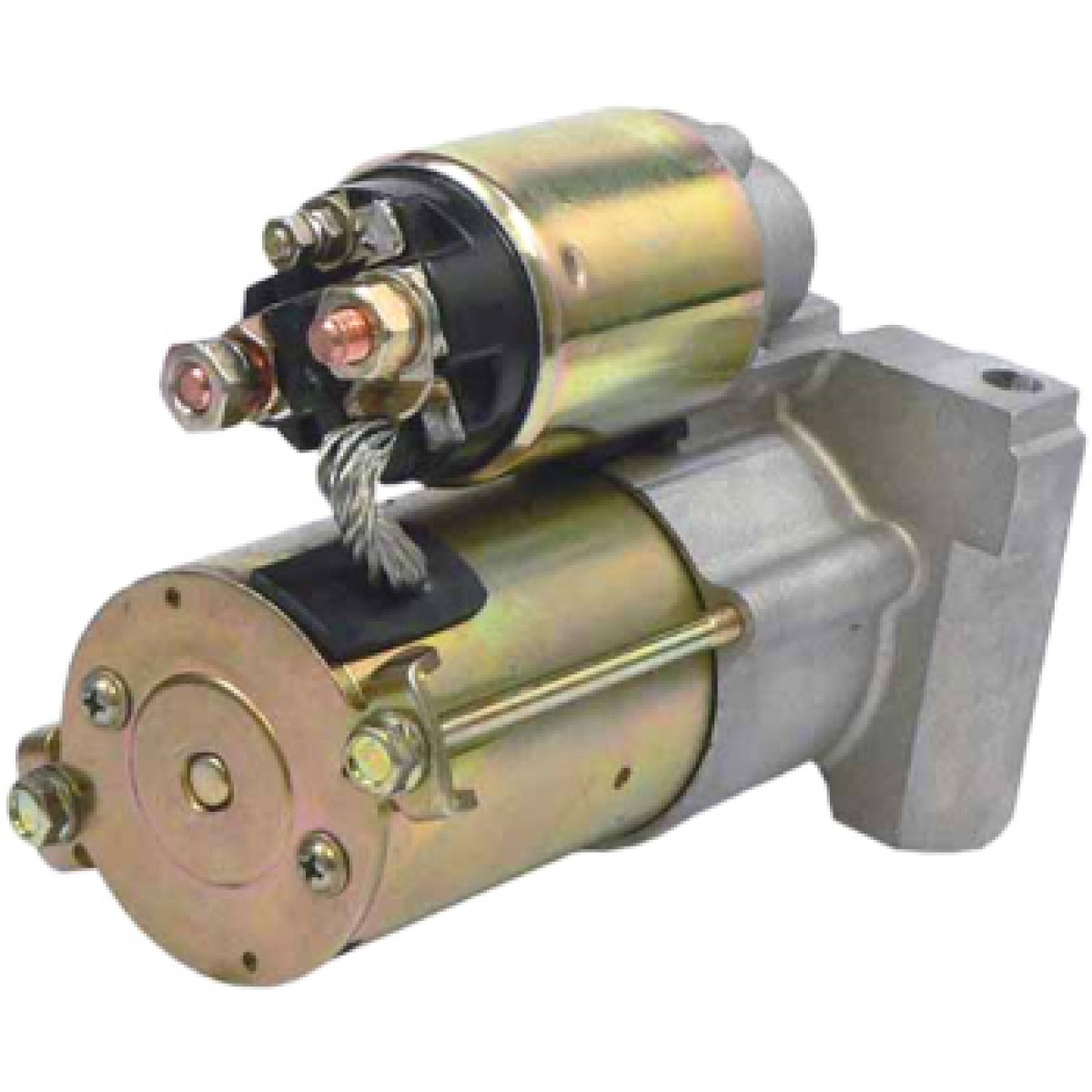

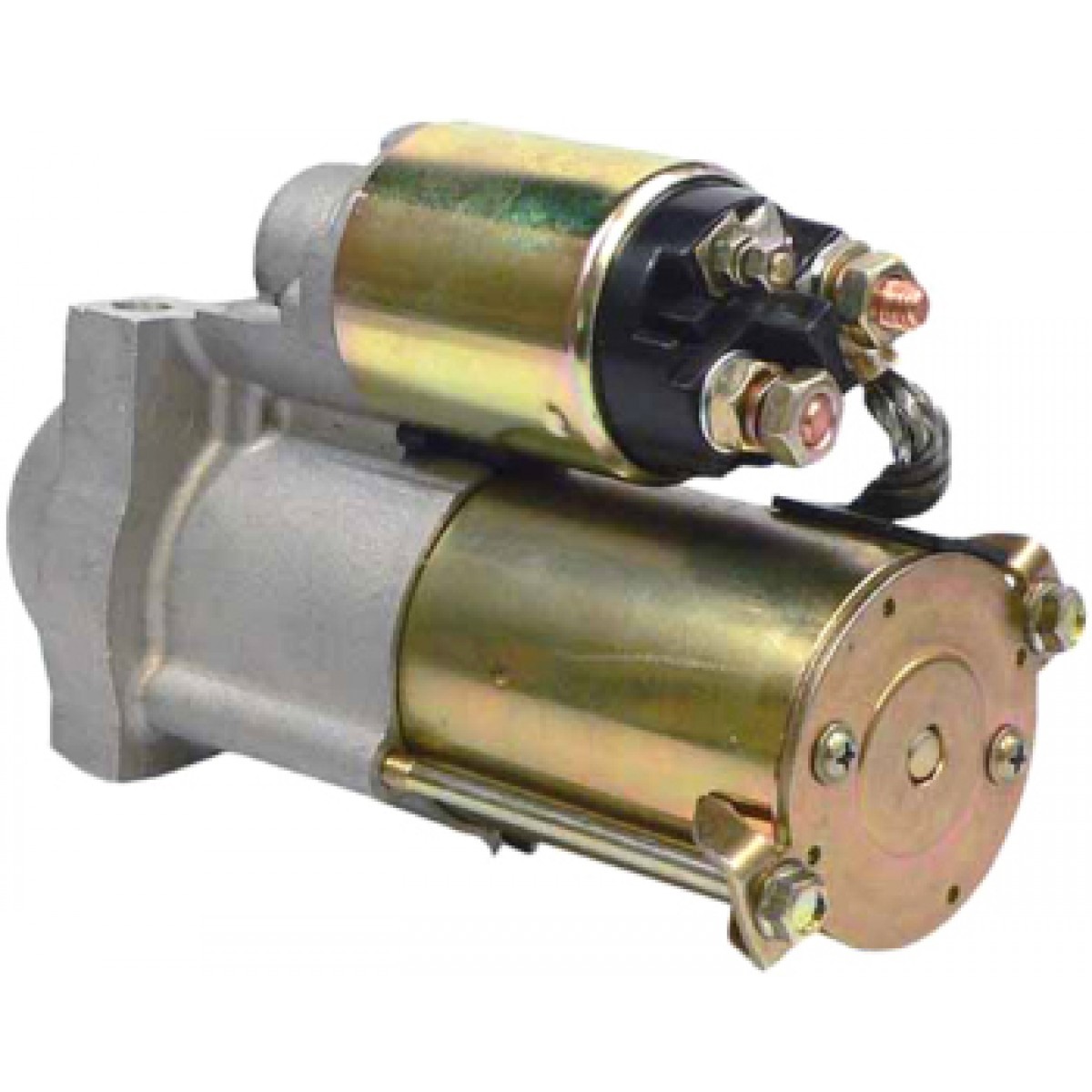

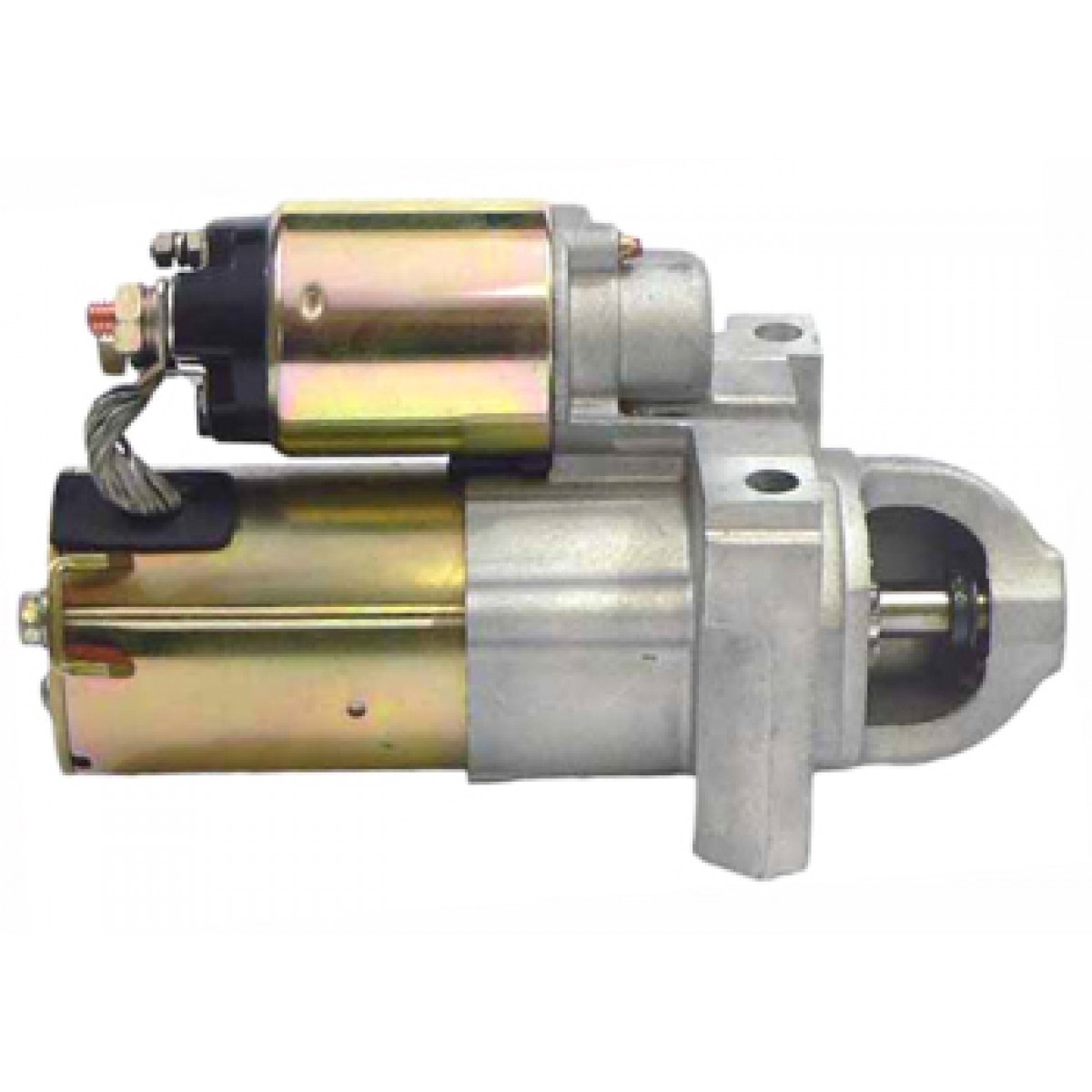

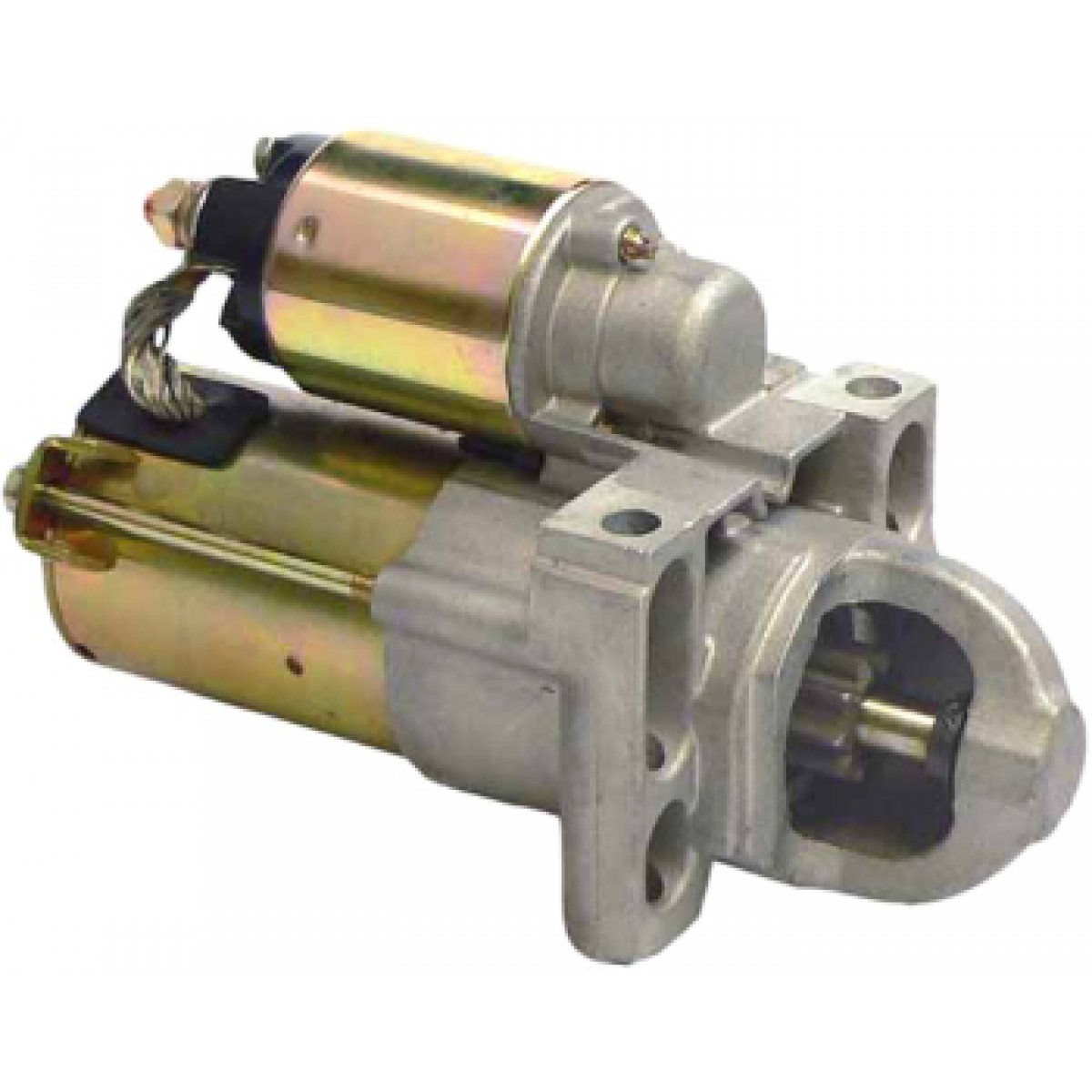

NEW Starter for CHEV / GMC TRUCKS, SAAB Applications; 410-12257, 12568051, 12578050, 12592294, 12604477, 12610300, 89017440, 89017631, 89018123; LESTER 6494

$126.99

Email

Specifications

UNIT TYPE Starter
FAMILY Delco PG260D
ELECTRIC STARTER TYPE Permanent Magnet Gear Reduction (PMGR)
VOLT 12
POWER 1.200 kw
HP 1.609
ROTATION DIRECTION Clockwise
NUMBER OF TEETH 9
GEAR OD 0.992″
GEAR OD 25.200mm
MOUNT HOLE ID 1 10mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD SDR0270
J & N 410-12257
LESTER 6494
AC DELCO 336-2002
AC DELCO 323-1483
BARSANCO 510-6494
BBB 6494
BBB NEW 6494
BBB NEW N6494
BECK ARNLEY 187-6221
CARGO 112902
DELCO 9000939
DELCO 89017440
DIXIE S-1468
DUBOIS 906494
EXCEL 2062
FAMILY PG260D
GENERAL MOTORS 89017440
GENERAL MOTORS 12578050
MINNPAR 57-2517
MPA 6494S
NAPA POWER NEW 4N-5148
NAPA POWER PREMIUM PLUS 246-5148
NAPA POWER SUPREME 46-5148
RCP ST-6494
REMY LIGHT DUTY 26483
SAAB 89-01-7440
USA INDUSTRIES 6494
WAI 6494N
WAI 2-2336-DR
WILSON 91-01-4571
WILSON NEW 91-01-4571N
WILSON NEW 91-01-4571
WORLDWIDE 26483

Part fit

Year Make Model Engine
Year Make Model Engine
2003 - 2004 CHEVROLET EXPRESS VANS 4.8L(294) V8
2003 - 2004 CHEVROLET SSR 5.3L(323) V8
2003 - 2005 CADILLAC ESCALADE 5.3L(325) V8
2003 - 2005 CHEVROLET SUBURBAN 5.3L(323) V8
2003 - 2005 CHEVROLET TAHOE 5.3L(323) V8
2003 - 2005 GMC YUKON 5.3L(323) V8
2003 - 2005 GMC YUKON XL 5.3L(323) V8
2004 - 2005 BUICK RAINIER 5.3L(323) V8
2004 - 2005 CHEVROLET EXPRESS VANS 5.3L(323) V8
2004 - 2005 CHEVROLET TAHOE 4.8L(294) V8
2004 - 2005 CHEVROLET TRAILBLAZER 5.3L(323) V8
2004 - 2005 GMC ENVOY 5.3L(323) V8
2004 - 2005 GMC SAVANA VANS 4.8L(294) V8
2004 - 2005 GMC SAVANA VANS 5.3L(323) V8
2004 - 2005 GMC YUKON 4.8L(294) V8
2004 - 2005 ISUZU ASCENDER 5.3L(323) V8
2005 SAAB 9-7X 5.3L
