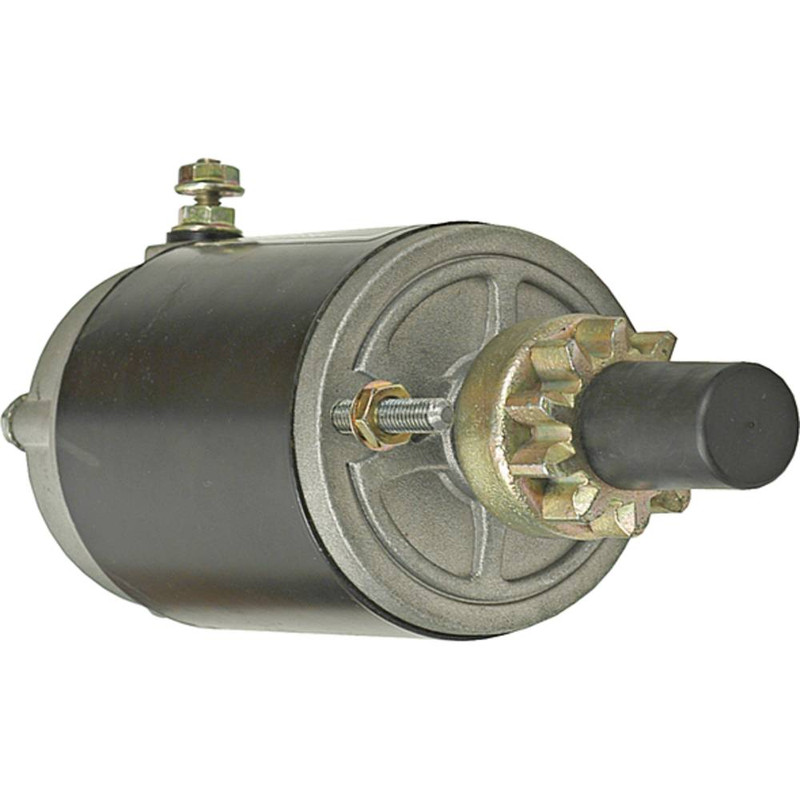

NEW Starter for Chrysler Marine 20 – 35 hp Marine Outboard; 410-21029, 460955, 46-0955, 514955, 51-4955, F460955, F514955, FS460955; LESTER 5396, 5725
$179.99
Specifications
| UNIT TYPE | STARTER |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.508″ |
| GEAR OD | 38.300mm |
| WARRANTY | 1 Year |
| Mounted by 1/4-20 Through Bolts & 3.51″/89.15mm Field Case Length |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SAB0082 |
| CHRYSLER MOTORS | 460955, 46-0955, 514955, 51-4955, F460955, F514955, FS460955 |
| EMP | 4-6441 |
| FORCE | 514955, 803900T, F514955 |
| J&N ELECTRICAL PRODUCTS | 410-21029 |
| LESTER | 5396, 5725 |
| MERCURY MARINE | 50-514955, 50-514955-1, 50-803900T, 50F514955, 809507A1 |
| PRESTOLITE | 46-2129, 46-2143, MDO4108, MDO4108A, MDO4108AS |
| UNITED TECHNOLOGIES | 1149540, 1149540-M030SM, SM11495 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Chrysler Marine | 20 | 20hp | 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine | 25 | 25hp | 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine | 30 | 30hp | 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine | 35 | 35hp | 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
