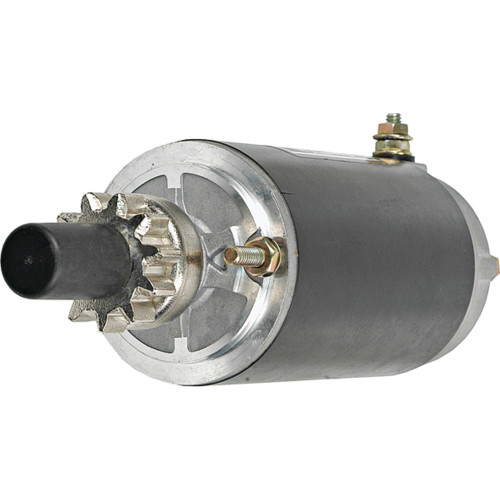

NEW Starter for Chrysler Marine 35 – 55 hp Marine Outboard & OTH Applications; 410-21055, 20-1955, 20-1955-9955, 201955-9955, 50-575955, 57-5955, FA201955; LESTER 5727
$159.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 11 |
| GEAR OD | 1.661″ |
| GEAR OD | 42.200mm |
| WARRANTY | 1 Year |
| (2) 1/4-20 Thru Bolts Used for Mounting, 4.8″ / 122mm Field Housing Length |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SAB0051 |
| CHRYSLER MOTORS | 20-1955, 20-1955-9955, 201955-9955, 50-575955, 57-5955, FA201955 |
| EMP | 4-6439 |
| FORCE | 898265011, F575955, FK575955 |
| J&N ELECTRICAL PRODUCTS | 410-21055 |
| LESTER | 5727 |
| MERCURY MARINE | 50-575955, 50-803903T |
| SIERRA MARINE | 18-6439 |
| UNITED TECHNOLOGIES | 4411940, SM44119 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Chrysler Marine | 35 | 35 HP | 1974, 1975 |
| Chrysler Marine | 45 | 45 HP | 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine | 50 | 50 HP | 1980, 1981, 1982, 1983, 1984 |
| Chrysler Marine | 55 | 55 HP | 1974, 1975, 1976 |
| McCulloch | 28 HP | 1964, 1965, 1966, 1967 | |
| McCulloch | 45 HP | 1964, 1965, 1966, 1967 | |
| U.S. | 35 HP | 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989 | |
| U.S. | 45 HP | 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989 | |
| U.S. | 50 HP | 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989 | |
| U.S. | 55 HP | 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989 | |
| West Bend | 30 HP | 1963 | |
| West Bend | 45 HP | 1964 | |
| West Bend | 50 HP | 1964 |
