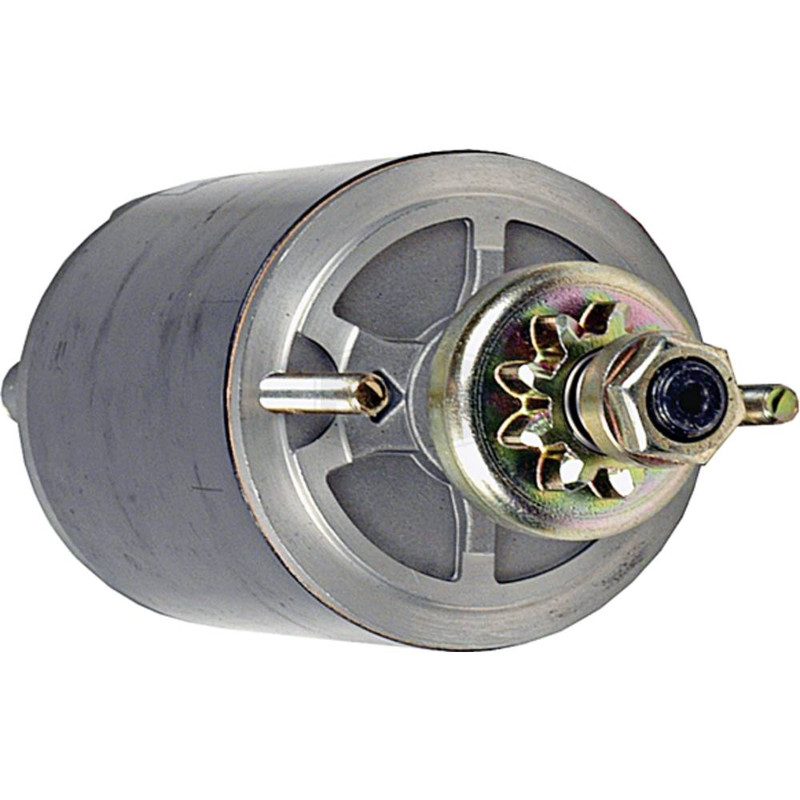

NEW Starter for Chrysler Marine, Sportjet & U.S. Marine Outboard; 410-21001, 480955, 48-0955, 489955, 4412040, 4412040-M030SM, 5273440, 5273440-M030SM, SM44120, SM52734; LESTER 5268, 5732, 5739

Name: NEW Starter for Chrysler Marine, Sportjet &amp; U.S. Marine Outboard; 410-21001, 480955, 48-0955, 489955, 4412040, 4412040-M030SM, 5273440, 5273440-M030SM, SM44120, SM52734; LESTER 5268, 5732, 5739
SKU: 11970
Price: 99.99 CAD
Availability: InStock

$99.99

Categories: Engine – Marine, Starter

Specifications

UNIT TYPE	Starter
ELECTRIC STARTER TYPE	Permanent Magnet Direct Drive (PMDD)
ROTATION DIRECTION	Counter Clockwise
VOLT	12
NUMBER OF TEETH	9
GEAR OD	1.130″
GEAR OD	28.700mm
WARRANTY	1 Year
	122mm Field Case Length & two 1/4-28 x 48mm Bolts for Mounting

Part Number & Interchanges

Manufacturer Name	Manufacturer Part #
ARROWHEAD	410-21052, SAB0010, SAB0020
CHRYSLER MOTORS	480955, 48-0955, 489955, 48-9955, 490955, 49-0955, 61-6955, A85955, F480955, F490955, FS480955, FS489955, FS490955
EMP	4-5613
FORCE	49-0955, 583869, 583869T, 616955 1, 61-6955, 819085 1, 819085, 819085T 1, 898265002, F616955-1, FK616955
J&N ELECTRICAL PRODUCTS	410-21001, 410-21052
LESTER	5268, 5732, 5739
MERCURY MARINE	50-583869, 50-616955-1, 50-819085, 50-819085-1, 50-819085T1, 50-819085-T1, 50-853869, 50-853869T, 50-898265002
PRESTOLITE	46-2154, 46-2339, 46-2344, 46-2346, 46-776, MGL4002, MGL4002A, MGL4013, MGL4014, MKW4005
SIERRA MARINE	18-5613, 18-5644
UNITED TECHNOLOGIES	4412040, 4412040-M030SM, 5273440, 5273440-M030SM, SM44120, SM52734

Applications

MAKE	MODEL	ENGINE	YEAR
Chrysler Marine	100	100hp	1979, 1980, 1981, 1982, 1983, 1984
Chrysler Marine	105	105hp	1976, 1977
Chrysler Marine	105	105hp	1978
Chrysler Marine	105	105hp	1982, 1983, 1984
Chrysler Marine	115	115hp	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Chrysler Marine	120	120hp	1976, 1977
Chrysler Marine	125	125hp	1981, 1982, 1983, 1984
Chrysler Marine	135	135hp	1976, 1977
Chrysler Marine	140	140hp	1979, 1980, 1981, 1982, 1983, 1984
Chrysler Marine	70	70hp	1979, 1980
Chrysler Marine	75	75hp	1978, 1979, 1980, 1981, 1982, 1983, 1984
Chrysler Marine	85	85hp	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Chrysler Marine	90	90hp	1983, 1984
Sportjet	120 Jet Drive	120hp	1995
Sportjet	120 Powerhead	120hp	1995
Sportjet	120XR Jet Drive	120hp
Sportjet	120XR Powerhead	120hp
Sportjet	120XR2 Jet Drive	120hp	1999, 2000
Sportjet	120XR2 Powerhead	120hp	1999, 2000
Sportjet	90 Jet Drive	90hp	1993, 1994, 1995
Sportjet	90 Powerhead	90hp	1993, 1994, 1995
Sportjet	95XR Jet Drive	95hp	1996, 1997
Sportjet	95XR Powerhead	95hp	1996, 1997
U.S.		125 HP	1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
U.S.		140 HP	1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
U.S.		150 HP	1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
U.S.		70 HP	1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
U.S.		85 HP	1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
