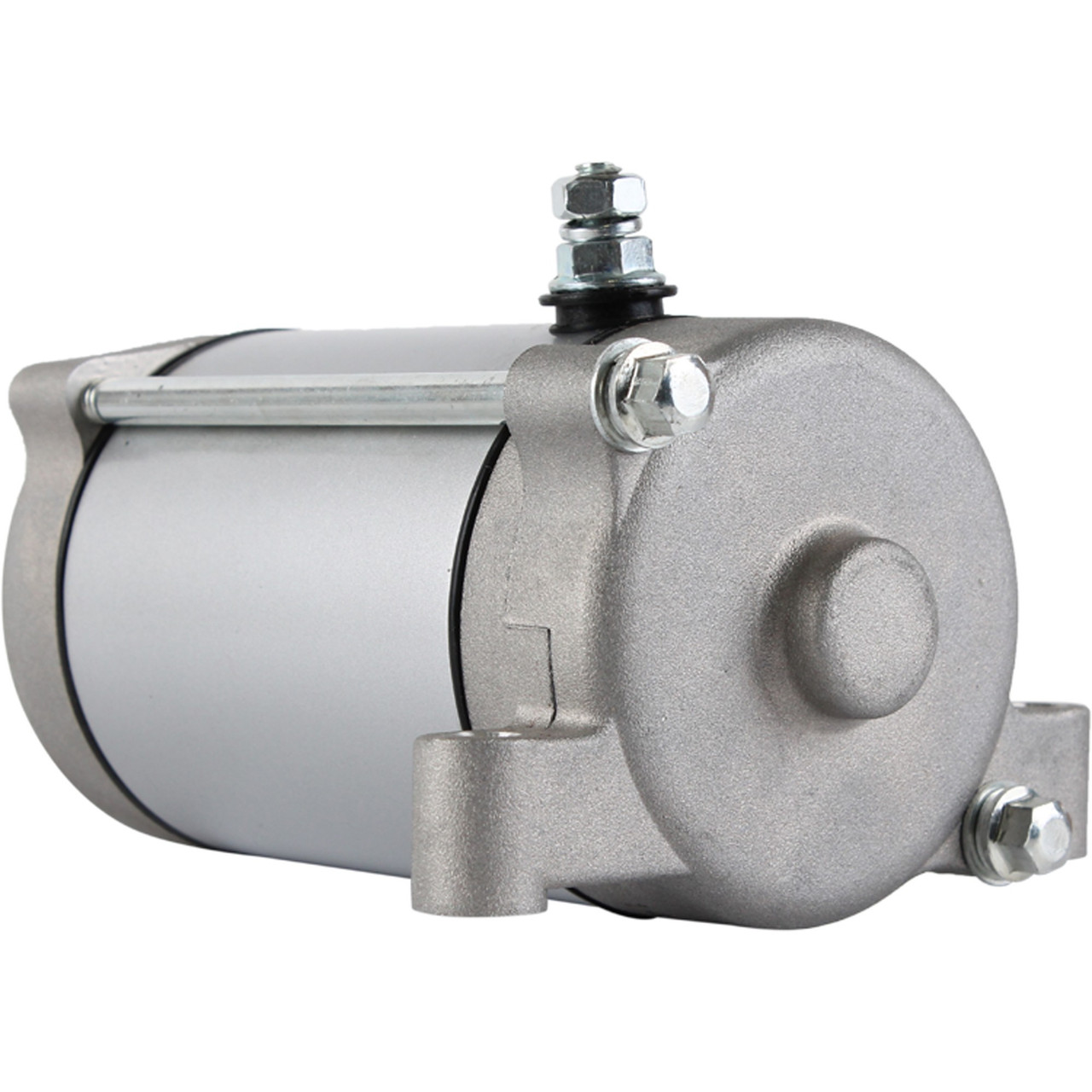

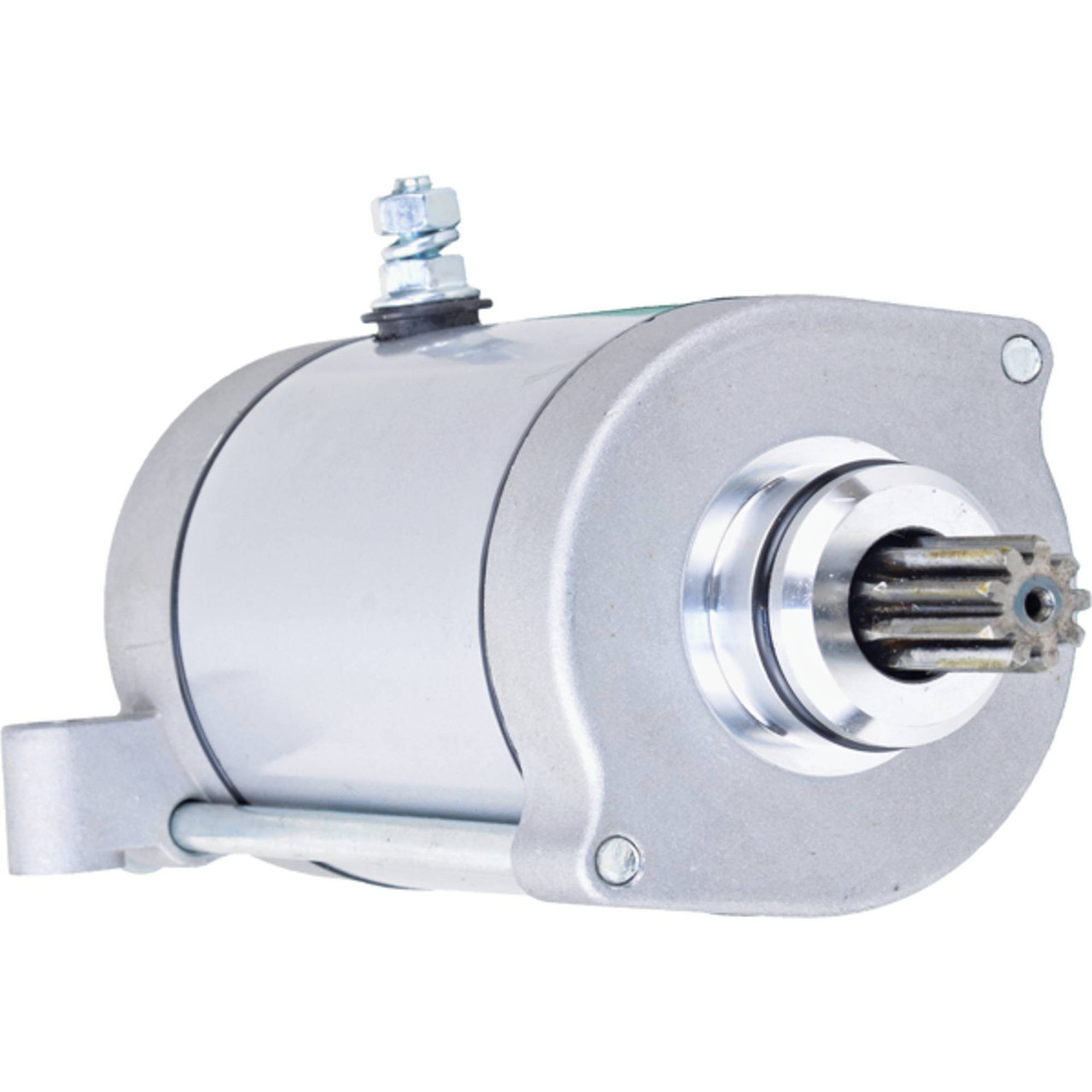

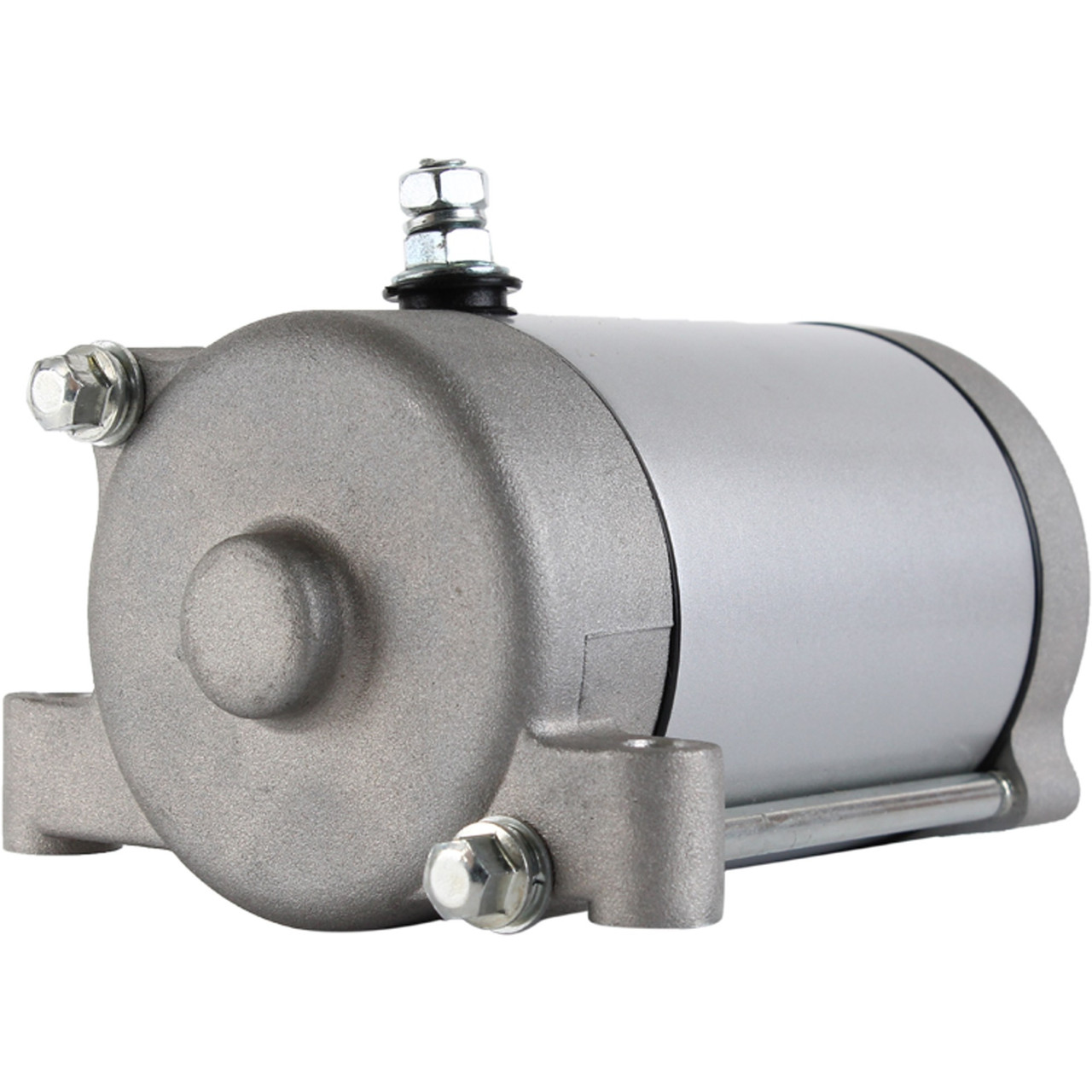

NEW Starter for COLEMAN Outfitter 700, Trail Tamer 500 & HISUN 700, RX700; 410-58058, 31200-004-0000
$149.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Counter Clockwise |
| VOLT | 12 |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.563″ |
| GEAR OD | 14.300mm |
| MOUNT HOLE ID 1 | 7mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SCH0093 |
| HISUN | 31200-004-0000 |
| J&N ELECTRICAL PRODUCTS | 410-58058 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| COLEMAN | Outfitter 700 | 700cc | |
| COLEMAN | Outfitter 700-4 | 700cc | |
| COLEMAN | Trail Tamer 500 | 500cc | |
| HISUN | 700 4-Seater | 700cc | |
| HISUN | 700 4×4 | 700cc | |
| HISUN | RX700 | 700cc |
