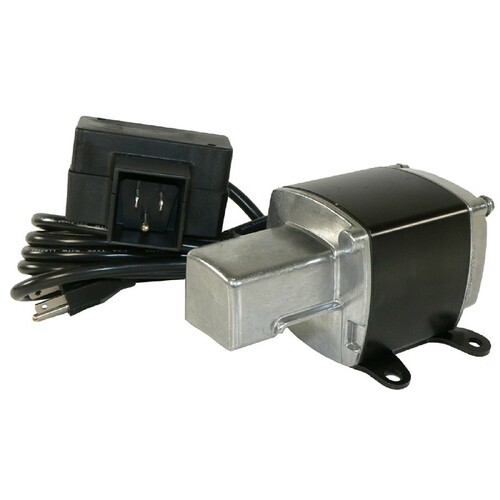

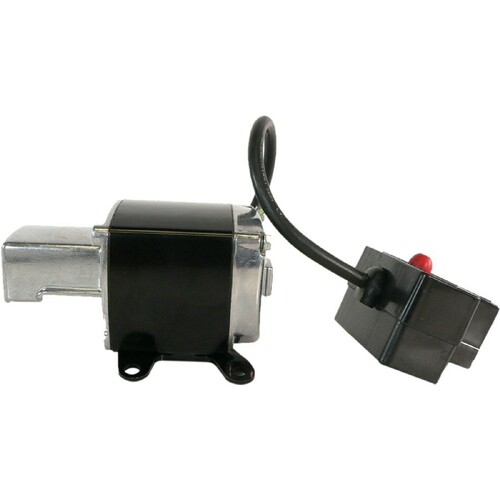

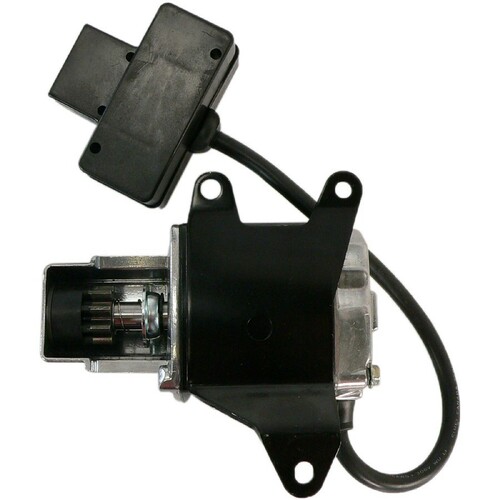

NEW Starter for CRAFTSMAN 143.975001, MTD 317E653F190 & TECUMSEH HSK40, HSSK40 & HSSK50 Snowblowers; 410-22032, 33290, 33290A – 33290E, 33290H, 33517; LESTER 5897
$159.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Counter Clockwise |
| VOLT | 120 |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.047″ |
| GEAR OD | 26.600mm |
| MOUNT HOLE ID 1 | 6.800mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 6.800mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARIENS | 72200600 |
| J&N | 410-22032 |
| MTD | 390-985 |
| TECUMSEH | 33290, 33290A, 33290B, 33290C, 33290D, 33290E, 33290H, 33517 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Craftsman | 143.975001 | ||
| MTD | 317E653F190 | ||
| Tecumseh | HSK40 | ||
| Tecumseh | HSSK40 | 4 hp | |
| Tecumseh | HSSK50 | 5 hP |
