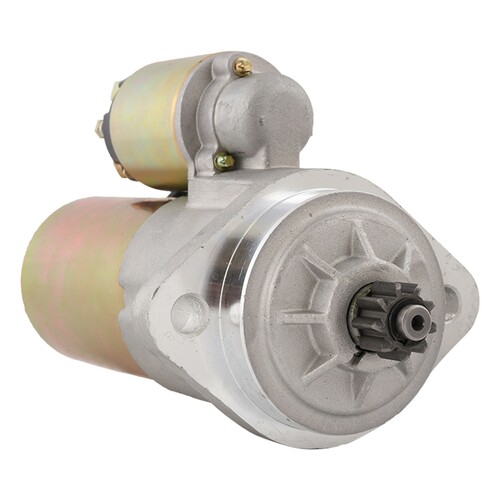

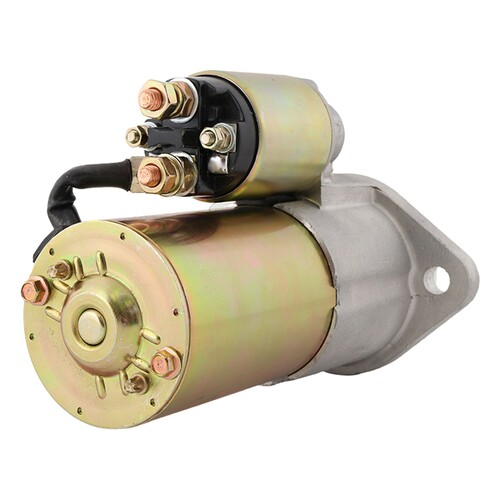

NEW Starter for CRUSADER, OMC, MERCRUISER, VOLVO PENTA MARINE Engines; 410-12198, RA122009, 18-5603, 21129980, 3862985, 855334; LESTER 6793
$139.91 $158.10
Categories: Engine – Marine, Starter
Specifications
| Unit Type | Starter |
| Family | Delco PG260L |
| Part Type | Permanent Magnet Gear Reduction (PMGR) |
| Voltage | 12 |
| Rotation | Counter Clockwise |
| Number of teeth | 9 |
| Gear OD | 1.004″/25.500mm |
| Mount Hole ID 1 | 12.300mm |
| Mount Hole 1 & 2 TYPE | Unthreaded |
| Warranty | 1 Year |
| Add’l Info | SAE J1171 Certified |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | D8000186, SDR0252 |
| CRUSADER | RA122009 |
| DELCO | 8000186, 9000888 |
| EMP | 4-5603 |
| J&N | 410-12114, 410-12171, 410-12198 |
| JANNCO | 410-12198R |
| LESTER | 6793 |
| LUCAS ELECTRIC | LRS02732 |
| MERCURY MARIN | 50-808011A05, 50-808011A4, 808011A05, 808011A4 |
| PLEASURECRAFT | RA122009 |
| SIERRA MARINE | 18-5603 |
| VOLVO | 21129980, 3862985, 855334 |
Application
| MAKE | MODEL | ENGINE | YEAR |
| Crusader | 170 | 17 | 1961 – 1969 |
| Crusader | 170 | 170 Engin | 1961 – 1969 |
| Crusader | 185 | 18 | 1961 – 1969 |
| Crusader | 185 | 185 Engin | 1961 – 1969 |
| Crusader | 200 | 200 Engin | 1961 – 1969 |
| Crusader | 225 | 22 | 1961 – 1969 |
| Crusader | 225 | 225 Engin | 1961 – 1969 |
| Crusader | 230 | 6cyl 230ci 3.8 | 1961 – 1969 |
| Crusader | 230 | 3800cc, 3.8L/230CI 6-Cyl | 1961 – 1969 |
| Crusader | 283 | 8cyl 283ci 4.6 | 1961 – 1971 |
| Crusader | 283 | 4600cc, 4.6L/283CI 8-Cyl | 1961 – 1971 |
| Crusader | 305 | 5000cc, 5L/305CI 8-Cyl | 1977 – 2004 |
| Crusader | 307 | 5000cc, 5L/307CI 8-Cyl | 1961 – 1971 |
| Crusader | 327 | 8cyl 327ci 5.3L G | 1961 – 1971 |
| Crusader | 327 | 5400cc, 5.4L/327CI 8-Cyl | 1961 – 1971 |
| Crusader | 348 | 5600cc, 5.6L/348CI 8-Cyl | 1961 – 1971 |
| Crusader | 350 | 5700cc, 5.7L/350CI 8-Cyl | 1967 – 2004 |
| Crusader | 364 | 6000cc, 6L/364CI 8-Cyl | 1999 – 2004 |
| Crusader | 409 | 6700cc, 6.7L/409CI 8-Cyl | 1961 – 1971 |
| Crusader | 427 | 7000cc, 7L/427CI 8-Cyl | 1961 – 1971 |
| Crusader | 454 | 7400cc, 7.4L/454CI 8-Cyl | 1977 – 1988 |
| Crusader | 496 | 8100cc, 8.1L/496CI 8-Cyl | 2001 – 2004 |
| Crusader | 5 | 8cyl 305ci 5.0 | 1977 – 2008 |
| Crusader | 5.7 | 8cyl 350ci 5.7 | 1967 – 2008 |
| Crusader | 6 | 8cyl 364ci 6.0 | 1999 – 2008 |
| Crusader | 7.4 | 8cyl 454ci 7.4 | |
| Crusader | 8.1 | 8cyl 496ci 8.1 | 2001 – 2008 |
| Mercruiser | Model 198 MIE | GM 5.0L – 305ci – 8cy | 1977 |
| Mercruiser | Model 198 MIE | 5000cc, 5L/305CI 8-Cyl | 1977 |
| Mercruiser | Model 215 MIE | Ford 5.0L – 302ci – 8cy | 1970 – 1972 |
| Mercruiser | Model 215 MIE | 5000cc, 5L/302CI 8-Cyl | 1970 – 1972 |
| Mercruiser | Model 215 | Ford 5.0L – 302ci – 8cy | 1970 – 1972 |
| Mercruiser | Model 215 | 5000cc, 5L/302CI 8-Cyl | 1970 – 1972 |
| Mercruiser | Model 225 MIE | Ford 5.0L – 302ci – 8cy | 1973, 1974 |
| Mercruiser | Model 225 MIE | GM 5.3L – 327ci – 8cy | 1968 |
| Mercruiser | Model 225 MIE | 5000cc, 5L/302CI 8-Cyl | 1973, 1974 |
| Mercruiser | Model 225 MIE | 5400cc, 5.4L/327CI 8-Cyl | 1968 |
| Mercruiser | Model 225 | Ford 5.0L – 302ci – 8cy | 1973, 1974 |
| Mercruiser | Model 225 | GM 5.3L – 327ci – 8cy | 1967 – 1969 |
| Mercruiser | Model 225 | 5000cc, 5L/302CI 8-Cyl | 1973, 1974 |
| Mercruiser | Model 225 | 5400cc, 5.4L/327CI 8-Cyl | 1967 – 1969 |
| Mercruiser | Model 228 MIE | GM 5.0L – 305ci – 8cy | 1977 – 1981 |
| Mercruiser | Model 228 MIE | 5000cc, 5L/305CI 8-Cyl | 1977 – 1981 |
| Mercruiser | Model 228 | GM 5.0L – 305ci – 8cy | 1977 – 1981 |
| Mercruiser | Model 228 | 5000cc, 5L/305CI 8-Cyl | 1977 – 1981 |
| Mercruiser | Model 230 MIE | GM 5.0L – 305ci – 8cy | 1981 – 1995 |
| Mercruiser | Model 230 MIE | 5000cc, 5L/305CI 8-Cyl | 1981 – 1995 |
| Mercruiser | Model 233 MIE | Ford 5.8L – 351ci – 8cy | 1975 – 1977 |
| Mercruiser | Model 233 MIE | 5800cc, 5.8L/351CI 8-Cyl | 1975 – 1977 |
| Mercruiser | Model 233 | Ford 5.8L – 351ci – 8cy | 1975 – 1977 |
| Mercruiser | Model 233 | 5800cc, 5.8L/351CI 8-Cyl | 1975 – 1977 |
| Mercruiser | Model 250 MIE | GM 5.3L – 327ci – 8cy | 1968, 1969 |
| Mercruiser | Model 250 MIE | 5400cc, 5.4L/327CI 8-Cyl | 1968, 1969 |
| Mercruiser | Model 250 | GM 5.3L – 327ci – 8cy | 1968, 1969 |
| Mercruiser | Model 250 | 5400cc, 5.4L/327CI 8-Cyl | 1968, 1969 |
| Mercruiser | Model 255 MIE | Ford 5.8L – 351ci – 8cy | 1973, 1974 |
| Mercruiser | Model 255 MIE | GM 5.7L – 350ci – 8cy | 1975 – 1980 |
| Mercruiser | Model 255 MIE | 5700cc, 5.7L/350CI 8-Cyl | 1975 – 1980 |
| Mercruiser | Model 255 MIE | 5800cc, 5.8L/351CI 8-Cyl | 1973, 1974 |
| Mercruiser | Model 255 | Ford 5.8L – 351ci – 8cy | 1973, 1974 |
| Mercruiser | Model 255 | 5800cc, 5.8L/351CI 8-Cyl | 1973, 1974 |
| Mercruiser | Model 260 MIE | GM 5.7L – 350ci – 8cy | 1981 – 1987 |
| Mercruiser | Model 260 MIE | 5700cc, 5.7L/350CI 8-Cyl | 1981 – 1987 |
| Mercruiser | Model 270 MIE | GM 5.7L – 350ci – 8cy | 1969 – 1972 |
| Mercruiser | Model 270 MIE | 5700cc, 5.7L/350CI 8-Cyl | 1969 – 1972 |
| Mercruiser | Model 270 | GM 5.7L – 350ci – 8cy | 1969 – 1972 |
| Mercruiser | Model 270 | 5700cc, 5.7L/350CI 8-Cyl | 1969 – 1972 |
| Mercruiser | Model 300 Tempest | 5700cc, 5.7L/350CI 8-Cyl | 1985, 1986 |
| Mercruiser | Model 325 MIE | GM 7.0L – 427ci – 8cy | 1968 – 1974 |
| Mercruiser | Model 325 MIE | 7000cc, 7L/427CI 8-Cyl | 1968 – 1974 |
| Mercruiser | Model 325 | GM 7.0L – 427ci – 8cy | 1969 – 1972 |
| Mercruiser | Model 325 | 7000cc, 7L/427CI 8-Cyl | 1969 – 1972 |
| Mercruiser | Model 330 MIE | GM 7.4L – 454ci – 8cy | 1977 – 1980 |
| Mercruiser | Model 330 MIE | 7400cc, 7.4L/454CI 8-Cyl | 1977 – 1980 |
| Mercruiser | Model 330 | GM 7.4L – 454ci – 8cy | 1977 – 1987 |
| Mercruiser | Model 340 MIE w/Borg Warner MK4 | GM 7.4L – 454ci – 8cy | 1981 – 1987 |
| Mercruiser | Model 340 MIE w/Borg Warner MK4 | 7400cc, 7.4L/454CI 8-Cyl | 1981 – 1987 |
| Mercruiser | Model 350 Mag MPI (Gen +) | GM 5.7L – 350ci – 8cy | |
| Mercruiser | Model 350 Mag MPI (Gen +) | 5700cc, 5.7L/350CI 8-Cyl | 1998 |
| Mercruiser | Model 350 Mag MPI Horizon | GM 5.7L – 350ci – 8cy | |
| Mercruiser | Model 350 Mag MPI Horizon | 5700cc, 5.7L/350CI 8-Cyl | 1999 |
| Mercruiser | Model 350 Mag MPI MIE (Gen +) | GM 5.7L – 350ci – 8cy | 1998, 1999 |
| Mercruiser | Model 350 Mag MPI MIE (Gen +) | GM 5.7L – 350ci – 8cy | 1998, 1999 |
| Mercruiser | Model 350 Mag MPI MIE (Gen +) | 5700cc, 5.7L/350CI 8-Cyl | 1998, 1999 |
| Mercruiser | Model 350 MIE | GM 7.4L – 454ci – 8cy | 1974 – 1976 |
| Mercruiser | Model 350 MIE | 7400cc, 7.4L/454CI 8-Cyl | 1974 – 1976 |
| Mercruiser | Model 370 TRS 6 | 7400cc, 7.4L/454CI 8-Cyl | 1978 – 1987 |
| Mercruiser | Model 390 6 | 7500cc, 7.5L/482CI 8-Cyl | 1969, 1970 |
| Mercruiser | Model 390 MIE | GM 7.5L – 482ci – 8cy | 1969, 1970 |
| Mercruiser | Model 390 MIE | 7500cc, 7.5L/482CI 8-Cyl | 1969, 1970 |
| Mercruiser | Model 390 | GM 7.5L – 482ci – 8cy | 1969, 1970 |
| Mercruiser | Model 400 TRS (Cyclone) | 7400cc, 7.4L/454CI 8-Cyl | 1980 – 1986 |
| Mercruiser | Model 420 | 7400cc, 7.4L/454CI 8-Cyl | 1987 – 1989 |
| Mercruiser | Model 425 (Gen V) | 7400cc, 7.4L/454CI 8-Cyl | 1992, 1993 |
| Mercruiser | Model 425 | 7400cc, 7.4L/454CI 8-Cyl | 1990 – 1992 |
| Mercruiser | Model 440 TRS (Cyclone) | 7400cc, 7.4L/454CI 8-Cyl | 1983 – 1986 |
| Mercruiser | Model 450 (Gen V) | GM 7.4L – 454ci – 8cy | 1995, 1996 |
| Mercruiser | Model 450 (Gen V) | 7400cc, 7.4L/454CI 8-Cyl | 1995, 1996 |
| Mercruiser | Model 454 Mag MPI Horizon (Gen VI) | GM 7.4L – 454ci – 8cy | |
| Mercruiser | Model 454 Mag MPI Horizon (Gen VI) | 7400cc, 7.4L/454CI 8-Cyl | 1998 |
| Mercruiser | Model 454 Mag MPI Horizon | GM 7.4L – 454ci – 8cy | |
| Mercruiser | Model 454 Mag MPI Horizon | 7400cc, 7.4L/454CI 8-Cyl | 2001 |
| Mercruiser | Model 460 TRS (Cyclone) | 7500cc, 7.5L/482CI 8-Cyl | 1983 – 1986 |
| Mercruiser | Model 465 (Gen V) | 8200cc, 8.2L/502CI 8-Cyl | 1992 – 1994 |
| Mercruiser | Model 465 | 8200cc, 8.2L/502CI 8-Cyl | 1990 – 1992 |
| Mercruiser | Model 5.0L (4-BBL) | 5000cc, 5L/305CI 8-Cyl | 1987 – 1995 |
| Mercruiser | Model 5.7L EFI (Gen +) MIE | GM 5.7L – 350ci – 8cy | |
| Mercruiser | Model 5.7L EFI (Gen +) MIE | 5700cc, 5.7L/350CI 8-Cyl | 1997 |
| Mercruiser | Model 5.7L EFI (Gen +) | GM 5.7L – 350ci – 8cy | |
| Mercruiser | Model 5.7L EFI (Gen +) | 5700cc, 5.7L/350CI 8-Cyl | 1998 |
| Mercruiser | Model 5.7L MIE | 5700cc, 5.7L/350CI 8-Cyl | 1988 – 1999 |
| Mercruiser | Model 5.7L Ski | GM 5.7L – 350ci – 8cy | 1985 – 1987 |
| Mercruiser | Model 5.7L Ski | 5700cc, 5.7L/350CI 8-Cyl | 1985 – 1987 |
| Mercruiser | Model 500 (Gen V) | GM 8.2L – 502ci – 8cy | 1994 – 1996 |
| Mercruiser | Model 500 (Gen V) | 8200cc, 8.2L/502CI 8-Cyl | 1994 – 1996 |
| Mercruiser | Model 500 (Gen VI) | GM 8.2L – 502ci – 8cy | 1997, 1998 |
| Mercruiser | Model 500 (Gen VI) | 8200cc, 8.2L/502CI 8-Cyl | 1997, 1998 |
| Mercruiser | Model 500 Bulldog | GM 8.9L – 540ci – 8cy | 1990 – 1996 |
| Mercruiser | Model 500 Bulldog | GM 8.9L – 540ci – 8cy | 1997 – 2001 |
| Mercruiser | Model 500 Bulldog | 8900cc, 8.9L/540CI 8-Cyl | 1990 – 2001 |
| Mercruiser | Model 525SC (Gen V) | GM 7.4L – 454ci – 8cy | 1996 |
| Mercruiser | Model 525SC (Gen V) | 7400cc, 7.4L/454CI 8-Cyl | 1992 – 1996 |
| Mercruiser | Model 525SC (Gen VI) | GM 7.4L – 454ci – 8cy | |
| Mercruiser | Model 525SC (Gen VI) | 7400cc, 7.4L/454CI 8-Cyl | 1997 |
| Mercruiser | Model 525SC | 7400cc, 7.4L/454CI 8-Cyl | 1991, 1992 |
| Mercruiser | Model 575 | 8900cc, 8.9L/540CI 8-Cyl | 1985 – 1992 |
| Mercruiser | Model 600SC (Gen IV & V) | GM 8.2L – 502ci – 8cy | 1992 – 1996 |
| Mercruiser | Model 600SC Gen IV | 8200cc, 8.2L/502CI 8-Cyl GM | 1992 – 1996 |
| Mercruiser | Model 600SC Gen V | 8200cc, 8.2L/502CI 8-Cyl GM | 1992 – 1996 |
| Mercruiser | Model 7.4L MIE (LH) (Gen V) | 7400cc, 7.4L/454CI 8-Cyl | 1992 – 1996 |
| Mercruiser | Model 7.4L MIE (LH) (Gen VI) | GM 7.4L – 454ci – 8cy | 1996, 1997 |
| Mercruiser | Model 7.4L MIE (LH) (Gen VI) | 7400cc, 7.4L/454CI 8-Cyl | 1996, 1997 |
| Mercruiser | Model 7.4L MIE (LH) w/Hurth MK4 | 7400cc, 7.4L/454CI 8-Cyl | 1989 – 1992 |
| Mercruiser | Model 7.4L MIE MPI (L29) (Gen VI) | GM 7.4L – 454ci – 8cy | 1998 – 2000 |
| Mercruiser | Model 7.4L MIE MPI (L29) (Gen VI) | 7400cc, 7.4L/454CI 8-Cyl | 1998 – 2000 |
| Mercruiser | Model 7.4L MIE MPI (LH) (Gen V) | 7400cc, 7.4L/454CI 8-Cyl | 1995, 1996 |
| Mercruiser | Model 7.4L MIE MPI (LH) (Gen VI) | GM 7.4L – 454ci – 8cy | 1996, 1997 |
| Mercruiser | Model 7.4L MIE MPI (LH) (Gen VI) | 7400cc, 7.4L/454CI 8-Cyl | 1996, 1997 |
| Mercruiser | Model 7.4L MIE TBI (LH) (Gen VI) | GM 7.4L – 454ci – 8cy | 1996, 1997 |
| Mercruiser | Model 7.4L MIE TBI (LH) (Gen VI) | 7400cc, 7.4L/454CI 8-Cyl | 1996, 1997 |
| Mercruiser | Model 7.4L MIE w/Borg Warner | 7400cc, 7.4L/454CI 8-Cyl | 1988 – 1992 |
| Mercruiser | Model 8.1S HO | GM 8.1L – 496ci – 8cy | |
| Mercruiser | Model 8.1S HO | 8100cc, 8.1L/496CI 8-Cyl | 2001 |
| Mercruiser | Model 8.1S Horizon | GM 8.1L – 496ci – 8cy | |
| Mercruiser | Model 8.1S Horizon | 8100cc, 8.1L/496CI 8-Cyl | 2001 |
| Mercruiser | Model 8.2L MIE (Gen V) | 8200cc, 8.2L/502CI 8-Cyl | 1993 – 1996 |
| Mercruiser | Model 8.2L MIE MPI (LH) (Gen VI) | GM 8.2L – 502ci – 8cy | 1996 – 1999 |
| Mercruiser | Model 8.2L MIE MPI (LH) (Gen VI) | 8200cc, 8.2L/502CI 8-Cyl | 1996 – 2000 |
| Mercruiser | Model 8.2L MIE w/Hurth | 8200cc, 8.2L/502CI 8-Cyl | 1990 – 1992 |
| Mercruiser | Model 800SC (Gen V) | GM 9.4L – 572ci – 8cy | 1993 – 1998 |
| Mercruiser | Model 800SC (Gen V) | 9400cc, 9.4L/572CI 8-Cyl | 1993 – 1998 |
| Mercruiser | Model 800SCI | 2002 | |
| Mercruiser | Model 898 | GM 5.0L – 305ci – 8cy | 1977 – 1982 |
| Mercruiser | Model 898 | 5000cc, 5L/305CI 8-Cyl | 1977 – 1982 |
| Mercruiser | Model 900SC | GM 9.0L – 542ci – 8cy | 1999 – 2002 |
| Mercruiser | Model 900SC | GM 9.0L – 542ci – 8cy | 1999 – 2002 |
| Mercruiser | Model 900SC | 9000cc, 9L/542CI 8-Cyl | 1999 – 2002 |
| Mercruiser | Model MX 6.2L MPI Horizon | GM 6.2L – 377ci – 8cy | |
| Mercruiser | Model MX 6.2L MPI | GM 6.2L – 377ci – 8cy | |
| Mercruiser | Model MX MPI Horizon | 6200cc, 6.2L/377CI 8-Cyl | 2001 |
| Mercruiser | Model MX MPI | 6200cc, 6.2L/377CI 8-Cyl | 2001 |
| OMC | 5.0L | 8cyl 305ci 5.0L G | 1980, 1981 |
| OMC | 5.0L | 5000cc, 5L/305CI 8-Cyl | 1978 – 1981 |
| OMC | 5.7L | 8cyl 350ci 5.7L G | 1980, 1981 |
| OMC | 5.7L | 5700cc, 5.7L/350CI 8-Cyl | 1978 – 1981 |
| OMC | 7.4L | 8cyl 454ci 7.4L G | 1980, 1981 |
| OMC | 7.4L | 8cyl 454ci 7.4L G | 1988 |
| OMC | 7.4L | 7400cc, 7.4L/454CI 8-Cyl | 1978 – 1980, 1988 |
| Pleasurecraft | 305CI 5.0L | 8cyl 305ci 5.0 | 1976 -1995 |
| Pleasurecraft | 305CI 5.0L | 8cyl 305ci 5.0 | 2002 – 2007 |
| Pleasurecraft | 350CI 5.7L | 8cyl 350ci 5.7 | 1976 – 1995 |
| Pleasurecraft | 350CI 5.7L | 8cyl 350ci 5.7 | 2002 – 2007 |
| Pleasurecraft | 454CI 7.4L | 8cyl 454ci 7.4 | 1976 – 1995 |
| Thermo Electron | 170 | 1970, 1971 | |
| Thermo Electron | 185 | 1970, 1971 | |
| Thermo Electron | 200 | 1970, 1971 | |
| Thermo Electron | 225 | 1970, 1971 | |
| Thermo Electron | 230 | 1970, 1971 | |
| Thermo Electron | 283 | 1970, 1971 | |
| Thermo Electron | 305 | 1977 – 1988 | |
| Thermo Electron | 327 | 1970, 1971 | |
| Thermo Electron | 348 | 1970, 1971 | |
| Thermo Electron | 350 | 1977 – 1988 | |
| Thermo Electron | 409 | 1970, 1971 | |
| Thermo Electron | 427 | 1970, 1971 | |
| Thermo Electron | 454 | 1977 – 1988 | |
| Thermo Electron | Various Models | 170 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 185 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 200 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 225 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 230 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 283 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 305 Engin | 1977 – 1988 |
| Thermo Electron | Various Models | 327 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 348 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 350 Engin | 1977 – 1988 |
| Thermo Electron | Various Models | 409 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 427 Engin | 1970, 1971 |
| Thermo Electron | Various Models | 454 Engin | 1977 – 1988 |
| Volvo Penta | 5.7GiL | 5700cc, 5.7L/350CI 8-Cyl , Gas | 2000 – 2007 |
| Volvo Penta | 5.7GSiL | 5700cc, 5.7L/350CI 8-Cyl , Gas | 2000 – 2002 |
| Volvo Penta | 5.7GXiL | 5700cc, 5.7L/350CI 8-Cyl , Gas | 2000 – 2007 |
| Volvo Penta | 8.1GiL | 8100cc, 8.1L/496CI 8-Cyl , Gas | 2000 – 2007 |
| Volvo Penta | 8.1GSiL | 8100cc, 8.1L/496CI 8-Cyl , Gas | 2000 – 2002 |
| Volvo Penta | 8.1GXiL | 8100cc, 8.1L/496CI 8-Cyl , Gas | 2000 – 2007 |
