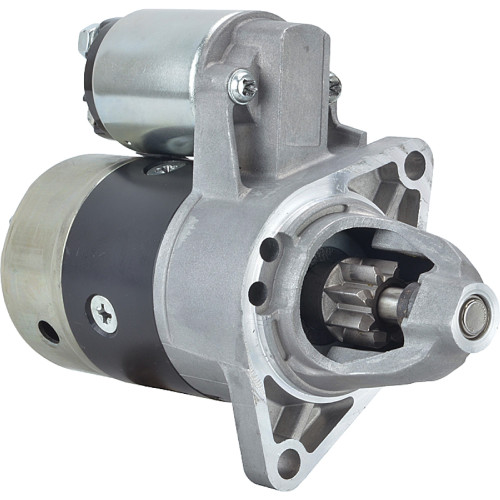

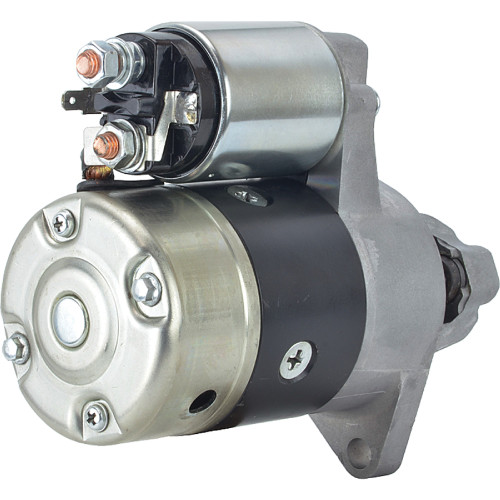

NEW Starter for CUSHMAN Turf Truckster; 410-48339, 2702893, M002T13481ZC, M2T13481, M2T13481ZC, 31100-78A00; LESTER 19714
$179.99
Specifications
| UNIT TYPE |
Starter |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| POWER |
0.600 kw |
| HP |
0.805 |
| ELECTRIC STARTER TYPE |
Direct Drive (DD) |
| NUMBER OF TEETH |
8 |
| GEAR OD |
1.102″ |
| GEAR OD |
28mm |
| LENGTH |
201.500 mm |
| LENGTH |
7.933″ |
| MOUNT HOLE ID 1 |
10.500mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
110mm |
| MOUNTING EAR DISTANCE 1 |
4.331″ |
| REGISTRY OD |
2.559″ |
| REGISTRY OD |
65mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
410-48339 |
| CUSHMAN |
2702893 |
| IMI HI TORQUE |
IMI261-001 |
| LESTER |
19714 |
| MITSUBISHI |
M002T13481ZC, M2T13481, M2T13481ZC |
| SUZUKI |
31100-78A00 |
