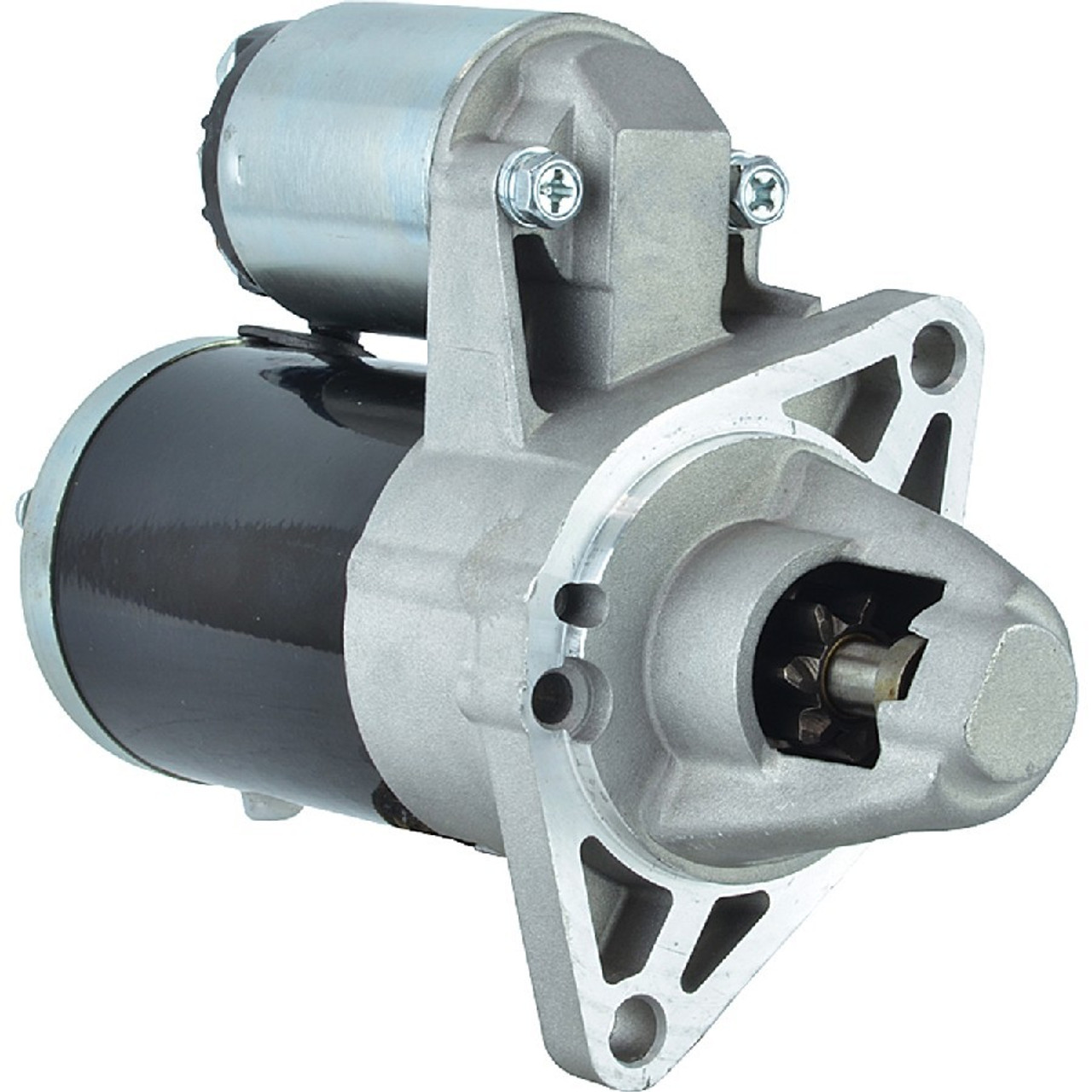

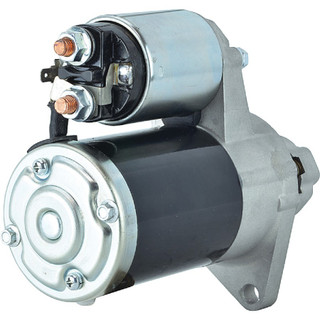

NEW Starter for CUSHMAN Various Applications; 410-48147, M000T45772, M00T45771ZT, M0T45771, M0T45771ZT, M0T45772, 31100-68H00, 31100-68H01; LESTER 12863
$169.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Gear Reduction (PMGR) |
| VOLT |
12 |
| ROTATION DIRECTION |
Counter Clockwise |
| NUMBER OF TEETH |
7 |
| GEAR OD |
0.925″ |
| GEAR OD |
23.500mm |
| LENGTH |
204 mm |
| LENGTH |
8.031″ |
| MOUNT HOLE ID 1 |
9mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
109mm |
| MOUNTING EAR DISTANCE 1 |
4.291″ |
| REGISTRY OD |
2.559″ |
| REGISTRY OD |
65mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
410-48147 |
| LESTER |
12863 |
| MITSUBISHI |
M000T45772, M00T45771ZT, M0T45771, M0T45771ZT, M0T45772 |
| SUZUKI |
31100-68H00, 31100-68H01 |
