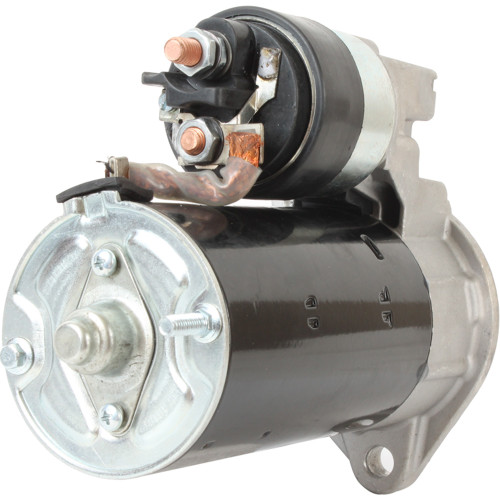

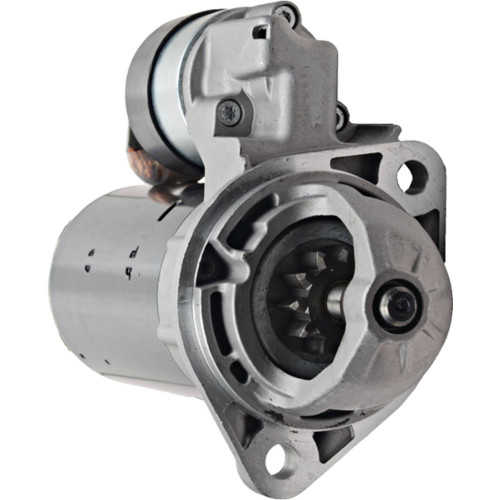

NEW Starter for DEUTZ Engines, GEHL & OTH Applications; 410-24114, 0001109370, 2934613, 293-4613; LESTER 19156
$169.99
Specifications
| UNIT/PART | Starter |
| ELECTRIC STARTER TYPE | Planetary Gear Reduction (PLGR) |
| FAMILY | Bosch 0001109… |
| ROTATION DIRECTION | Clockwise |
| VOLT | 12 |
| POWER | 2.500 kw |
| HP | 3.353 |
| NUMBER OF TEETH | 11 |
| GEAR OD | 1.362″ |
| GEAR OD | 34.600mm |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | B0001109370, SBO0278 |
| BOSCH | 0001109370, 0-001-109-370 |
| DEUTZ | 2934613 |
| JLG/GRADALL INDUSTRIES | 7040608 |
| KHD | 293-4613 |
| LESTER | 19156 |
| MAHLE | IS1072 |
Application
| MAKE | MODEL | ENGINE | YEAR |
| Deutz | BF4L1011 | ||
| Deutz | F2L1011 | ||
| Deutz | F3L1011 | ||
| Deutz | F4L1011 | ||
| Gehl | 5635SX | Deutz F4M1011F Diesel | |
| Gehl | 6635DXT | Deutz BF4M1011F Diesel | |
| Gehl | SL5635 | BF4M1011F Diesel | |
| Gehl | SL6635 | BF4M1011F Diesel | |
| KHD | BF4L1011 | 2710cc, 2.71L | 1995 |
| KHD | F2L1011 | 1400cc, 1.4L | 1995 |
| KHD | F3L1011 | 2000cc, 2L | 1995 |
| KHD | F4L1011 | 2700cc, 2.7L | 1995 |
| Thomas Equipment | T243 | BF4M1011F Diesel | |
| Tug | 660-14 | Deutz 101 | |
| Tug | M1A-14 | Deutz 101 | |
| Tug | MA-14 | Deutz 101 | |
| Tug | MH-14 | Deutz 101 |
