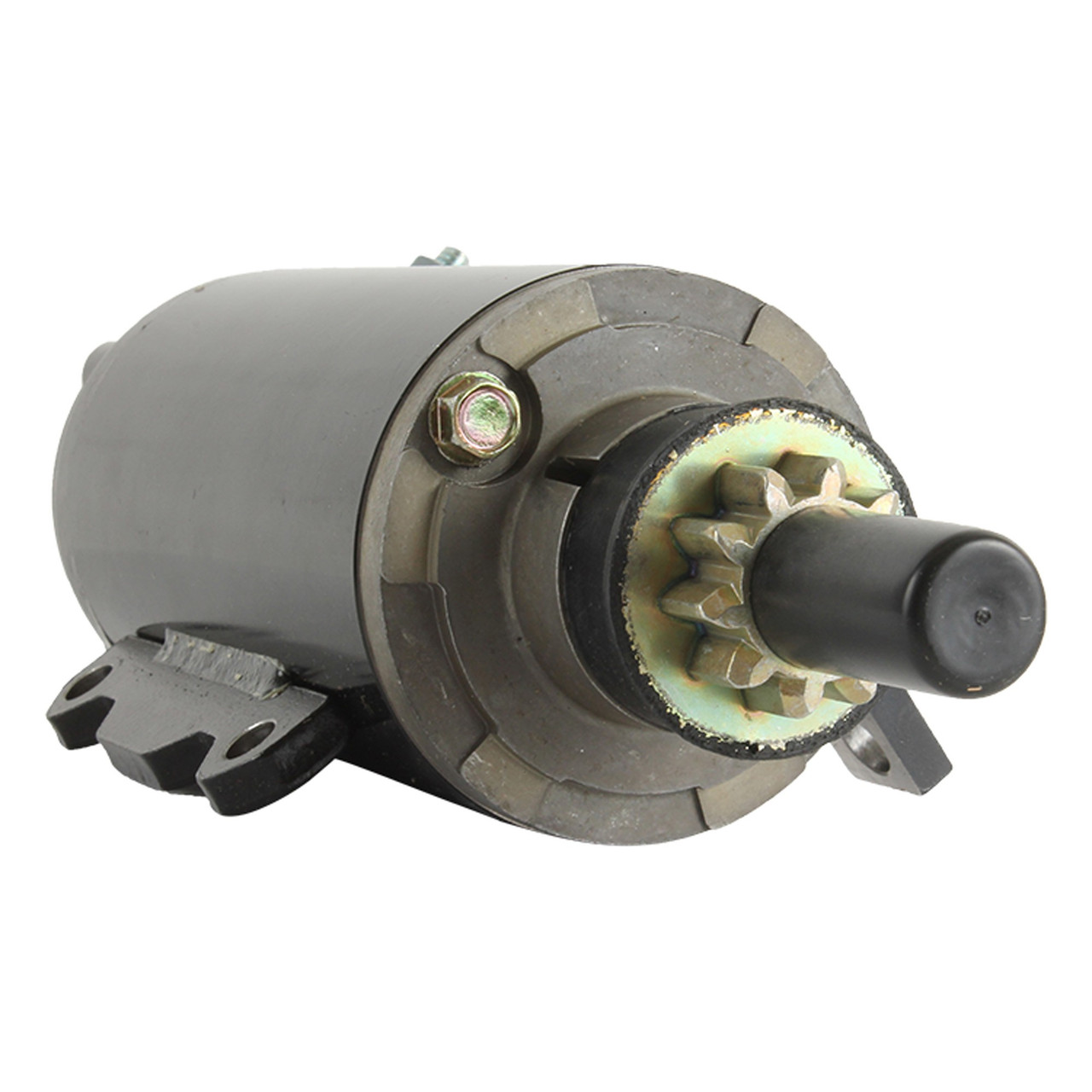

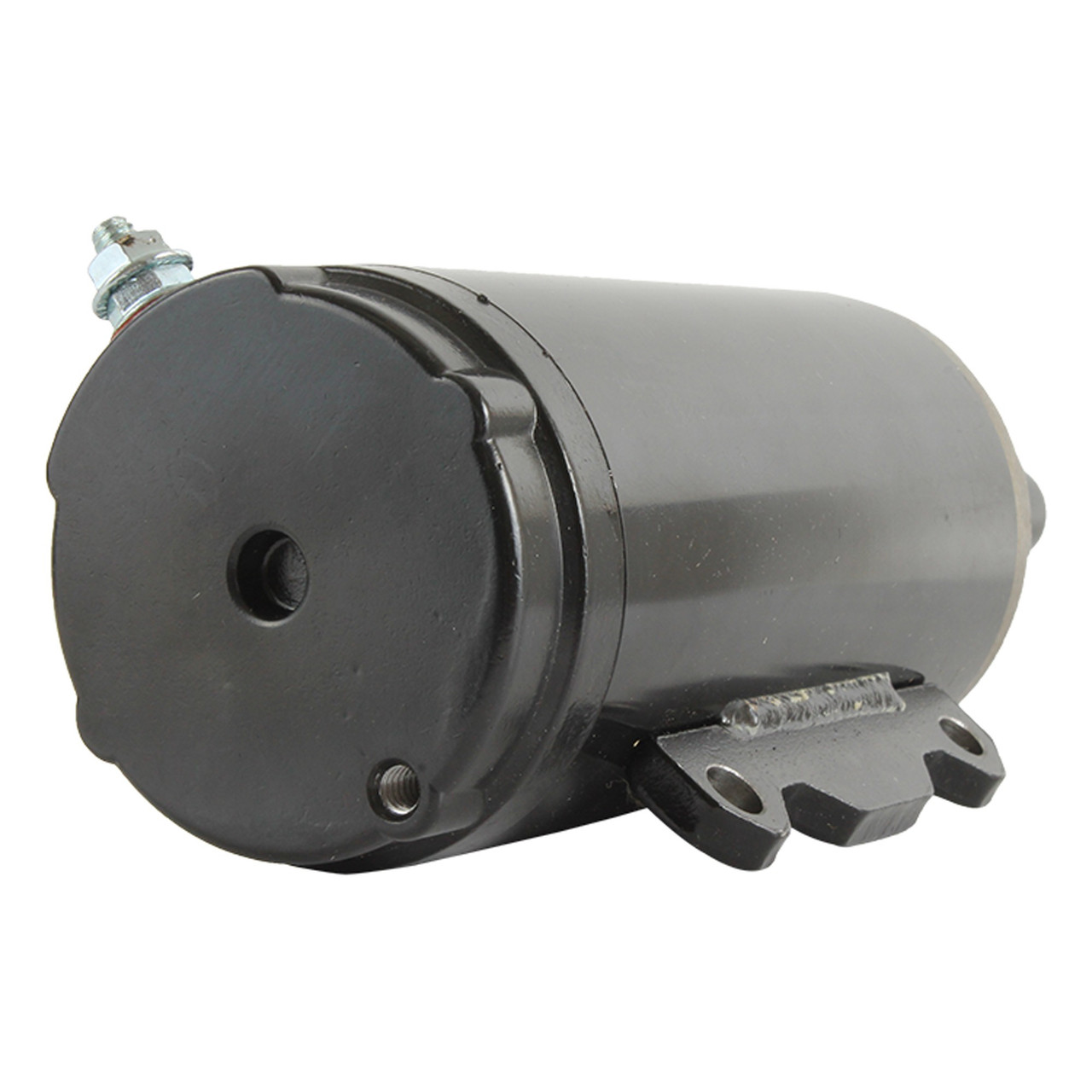

NEW Starter for EVINRUDE & JOHNSON Marine Engines; 410-21012, 0139940, 0139940-M030SM, 0228940, 0228940-M030SM, 0246540; LESTER 5397, 5719, 5722
$109.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Counter Clockwise |
| VOLT | 12 |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.272″ |
| GEAR OD | 32.300mm |
| MOUNT HOLE ID 1 | 8mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.100mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| 4.78″/121.4mm Long Field Case |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SAB0062 |
| EMP | 4-5634 |
| J&N | 410-21012 |
| LESTER | 5397, 5719, 5722 |
| MERCURY MARINE | 8M6007312 |
| OMC OUTBOARD MARINE CORP | 0385529, 0389954, 0585051, 0585057, 0586283, 385529, 386465, 389380, 389954, 391554, 585051, 585057, 585196, 586282, 586283 |
| PRESTOLITE | 46-2119, 46-2399, MGL4109, MKW4001, POC4001 |
| SIERRA MARINE | 18-5625, 18-5634, 18-5647 |
| UNITED TECHNOLOGIES | 0139940, 0139940-M030SM, 0228940, 0228940-M030SM, 0246540, 0246540-M030SM, 0246640, 0246640-M030SM, 139940, 1791620MO30SM, 1791640, 1791640-M030SM, 1791740, 1791740-M030SM, 2020740, 2070240, 2070240-M030SM, 2070329-M030SM, 2070340-M030SM, 5704740, 5704740-M030SM, 5722940-M030SM, 5953540, 5953540-M030SM, POC4001, SM01399, SM02289, SM02465, SM02466, SM17916, SM17917, SM17919, SM20207, SM20702, SM20703, SM57047, SM59535, SMH12C41 |
Applications
| Make | Model | Engine | Years |
| Evinrude | E100 | 1.6L/99CI | 1969 – 1979 |
| Evinrude | E100ML | 1.6L/99CI | 1980 |
| Evinrude | E100STL | 1.6L/99CI | 1989 – 1990 |
| Evinrude | E100STLXP | 1.6L/99CI | 1991 – 1993 |
| Evinrude | E100TL | 1.6L/99CI | 1980 |
| Evinrude | E100TX | 1.6L/99CI | 1980 |
| Evinrude | E100WML | 1.6L/99CI | 1985 – 1986 |
| Evinrude | E100WTLCommercial | 1.6L/99CI | 1992 – 1997 |
| Evinrude | E100WTLSuper | 1.6L/99CI | 1985 – 1991 |
| Evinrude | E100WTXCommercial | 1.6L/99CI | 1992 – 1997 |
| Evinrude | E100WTXSuper | 1.6L/99CI | 1986 – 1991 |
| Evinrude | E110ML | 1.6L/99CI | 1986 – 1989 |
| Evinrude | E110TL | 1.6L/99CI | 1986 – 1989 |
| Evinrude | E110TX | 1.6L/99CI | 1987 – 1989 |
| Evinrude | E112TSL | 1.6L/99CI | 1994 – 1996 |
| Evinrude | E112TSX | 1.6L/99CI | 1994 – 1996 |
| Evinrude | E115 | 1.6L/99CI | 1973 – 1979 |
| Evinrude | E115J | 80HP 1.6L/99CI | 1991 – 1993 |
| Evinrude | E115JKL | 80HP 1.6L/99CI | 1994 – 1995 |
| Evinrude | E115JL | 80HP 1.6L/99CI | 1994 – 1997 |
| Evinrude | E115ML | 1.6L/99CI | 1980 – 1994 |
| Evinrude | E115TL | 1.6L/99CI | 1980 – 1995 |
| Evinrude | E115TSL | 1.7L/105CI | 1997 – 1998 |
| Evinrude | E115TSX | 1.7L/105CI | 1997 – 1998 |
| Evinrude | E115TX | 1.6L/99CI | 1980 – 1995 |
| Evinrude | E125 | 1.8L/110CI | 1973 – 1977 |
| Evinrude | E135 | 2L/122CI | 1973 – 1977 |
| Evinrude | E140 | 1.6L/99CI | 1973 – 1979 |
| Evinrude | E140ML | 1.6L/99CI | 1980 |
| Evinrude | E140TL | 1.6L/99CI | 1984 |
| Evinrude | E140TRL | 1.6L/99CI | 1980 – 1983 |
| Evinrude | E140TRX | 1.6L/99CI | 1980 – 1983 |
| Evinrude | E140TX | 1.6L/99CI | 1984 |
| Evinrude | E85 | 1.6L/99CI | 1964 – 1979 |
| Evinrude | E85ML | 1.6L/99CI | 1980 |
| Evinrude | E85TL | 1.6L/99CI | 1980 |
| Evinrude | E85TTL | 1.6L/99CI | 1991 – 1995 |
| Evinrude | E85TX | 1.6L/99CI | 1980 |
| Evinrude | E88MSL | 1.6L/99CI | 1987 – 1996 |
| Evinrude | E88TSL | 1.6L/99CI | 1994 – 1996 |
| Evinrude | E90 | 1.6L/99CI | 1970 – 1977 |
| Evinrude | E90ML | 1.6L/99CI | 1981 – 1986 |
| Evinrude | E90TL | 1.6L/99CI | 1984 – 1989 |
| Evinrude | E90TSL | 1.6L/99CI | 1987 |
| Evinrude | E90TX | 1.6L/99CI | 1981 – 1986 |
| Johnson | 100 | 99CI | 1969 – 1979 |
| Johnson | 100CTL | 99CI | 1987 |
| Johnson | 100CWTX | 99CI | 1987 |
| Johnson | 100ML | 99CI | 1980 |
| Johnson | 100STL | 99CI | 1989 – 1995 |
| Johnson | 100TRL | 99CI | 1980 |
| Johnson | 100TRX | 99CI | 1980 |
| Johnson | 100WML | 99CI | 1985 – 1986 |
| Johnson | 100WT | 99CI | 1985 – 1997 |
| Johnson | 110ML | 99CI | 1986 – 1989 |
| Johnson | 110TL | 99CI | 1986 – 1989 |
| Johnson | 110TX | 99CI | 1987 – 1989 |
| Johnson | 112TSL | 99CI | 1994 – 1996 |
| Johnson | 112TSX | 99CI | 1994 – 1996 |
| Johnson | 115 | 99CI | 1973 – 1979 |
| Johnson | 115JJet | 99CI | 1991 – 1997 |
| Johnson | 115ML | 99CI | 1980 – 1995 |
| Johnson | 115TL | 99CI | 1980 – 1996 |
| Johnson | 115TSL | 99CI | 1997 – 1998 |
| Johnson | 115TSX | 99CI | 1997 – 1998 |
| Johnson | 115TX | 99CI | 1980 – 1996 |
| Johnson | 125 | 110CI | 1973 – 1977 |
| Johnson | 135 | 122CI | 1973 – 1977 |
| Johnson | 140 | 99CI | 1973 – 1979 |
| Johnson | 140ML | 99CI | 1980 |
| Johnson | 140TL | 99CI | 1980 – 1984 |
| Johnson | 140TRL | 99CI | 1983 |
| Johnson | 140TRX | 99CI | 1983 |
| Johnson | 140TX | 99CI | 1980 – 1984 |
| Johnson | 140TXL | 99CI | 1982 |
| Johnson | 85 | 99CI | 1964 – 1979 |
| Johnson | 85ML | 99CI | 1980 |
| Johnson | 85TL | 99CI | 1980 |
| Johnson | 85TTL | 99CI | 1991 – 1995 |
| Johnson | 88MSL | 99CI | 1987 – 1996 |
| Johnson | 88TSL | 99CI | 1994 – 1996 |
| Johnson | 90 | 99CI | 1970 – 1977 |
| Johnson | 90J | 99CI | 1991 – 1995 |
| Johnson | 90ML | 99CI | 1981 – 1996 |
| Johnson | 90TL | 99CI | 1981 – 1996 |
| Johnson | 90TSL | 99CI | 1997 – 1998 |
| Johnson | 90TX | 99CI | 1980 – 1994 |
| Johnson | 90TXL | 99CI | 1982 |
