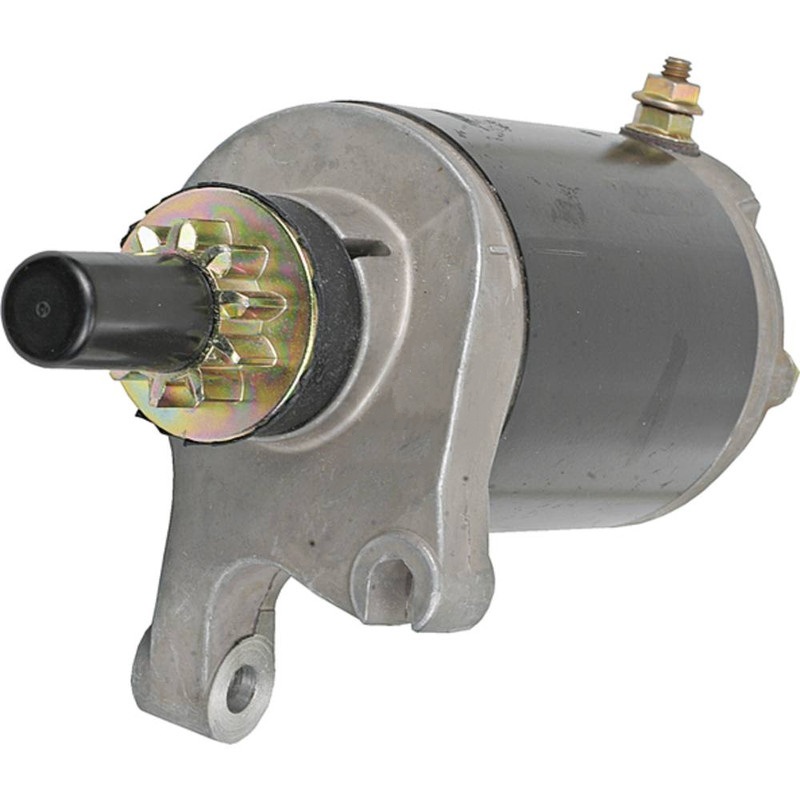

NEW Starter for EVINRUDE JOHNSON 10FEX, BE10FD, E10FRL & OTH Engine – Marine Outboard; 410-21046, 584608, 586275, 5699940, SM56999; LESTER 5711
$159.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.213″ |
| GEAR OD | 30.800mm |
| MOUNT HOLE ID 1 | 8mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| 3.46″ / 88mm Field Housing Length |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SAB0103 |
| LESTER | 5711 |
| OMC OUTBOARD MARINE CORP | 584608, 586275 |
| UNITED TECHNOLOGIES | 5699940, SM56999 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Evinrude Johnson | 10FEX | 18cu in, 18CI 4-Stroke | 1998 |
| Evinrude Johnson | 10FREL | 18cu in, 18CI 4-Stroke | 1998 |
| Evinrude Johnson | BE10FD | 9.9H | 1996, 1997 |
| Evinrude Johnson | BE10FD | 9.9H | 1998 |
| Evinrude Johnson | BE10FP | 9.9H | 1996, 1997 |
| Evinrude Johnson | BE10FR | 9.9H | 1996, 1997 |
| Evinrude Johnson | BE15FA | 15H | 1996, 1997 |
| Evinrude Johnson | BE15FD | 15H | 1996, 1997 |
| Evinrude Johnson | BE15FD | 15H | 1998 |
| Evinrude Johnson | BE15FK | 15H | 1996, 1997 |
| Evinrude Johnson | BE15FR | 15H | 1996, 1997 |
| Evinrude Johnson | BE15FW | 15H | 1996, 1997 |
| Evinrude Johnson | BE15FW | 15H | 1998 |
| Evinrude Johnson | BJ10FD | 9.9H | 1996, 1997 |
| Evinrude Johnson | BJ10FD | 9.9H | 1998 |
| Evinrude Johnson | BJ10FP | 9.9H | 1996, 1997 |
| Evinrude Johnson | BJ10FR | 9.9H | 1996, 1997 |
| Evinrude Johnson | BJ15FA | 15H | 1996, 1997 |
| Evinrude Johnson | BJ15FD | 15H | 1996, 1997 |
| Evinrude Johnson | BJ15FD | 15H | 1998 |
| Evinrude Johnson | BJ15FK | 15H | 1996, 1997 |
| Evinrude Johnson | BJ15FR | 15H | 1996, 1997 |
| Evinrude Johnson | BJ15FW | 15H | 1996, 1997 |
| Evinrude Johnson | BJ15FW | 15H | 1998 |
| Evinrude Johnson | E10E | 9.9H | 1999 |
| Evinrude Johnson | E10E | 15cu in, 15HP 15CI | 2001 |
| Evinrude Johnson | E10EL | 9.8H | 2015 |
| Evinrude Johnson | E10EL | 9.9H | 1999, 2000, 2001 |
| Evinrude Johnson | E10EL | 15cu in, 15HP 15CI | 2001 |
| Evinrude Johnson | E10EV | 9.9H | 2000, 2001 |
| Evinrude Johnson | E10F | 15cu in, 15HP 15CI | 1998 |
| Evinrude Johnson | E10F | 15cu in, 9.9HP 15CI | 1998 |
| Evinrude Johnson | E10FEX | 9.9H | 1995, 1996, 1997, 1998 |
| Evinrude Johnson | E10FEX | 18cu in, 18CI 4-Stroke | 1999 |
| Evinrude Johnson | E10FRE | 9.9H | 1995, 1996, 1997 |
| Evinrude Johnson | E10FRE | 9.9H | 1998 |
| Evinrude Johnson | E10FREL | 18cu in, 18CI 4-Stroke | 1999 |
| Evinrude Johnson | E10FRL | 9.9H | 1995, 1996, 1997 |
| Evinrude Johnson | E10FRL | 9.9H | 1998 |
| Evinrude Johnson | E10R | 9.9H | 1999, 2000, 2001 |
| Evinrude Johnson | E10T | 15cu in, 15HP 15CI | 2001 |
| Evinrude Johnson | E10T | 15cu in, 9.9HP 15CI | 2001 |
| Evinrude Johnson | E10TEX | 9.9H | 1999, 2000, 2001 |
| Evinrude Johnson | E10TVX | 9.9H | 2000, 2001 |
| Evinrude Johnson | E15D | 15H | 1995 |
| Evinrude Johnson | E15E | 15HP 15C | 2001 |
| Evinrude Johnson | E15E | 9.9HP 15C | 2001 |
| Evinrude Johnson | E15EB | 15H | 1999 |
| Evinrude Johnson | E15EL | 15H | 1999, 2000, 2001 |
| Evinrude Johnson | E15EV | 15H | 2000, 2001 |
| Evinrude Johnson | E15F | 18cu in, 18CI | 2001 |
| Evinrude Johnson | E15FK | 15H | 1996, 1997 |
| Evinrude Johnson | E15FRE | 15H | 1995, 1996, 1997 |
| Evinrude Johnson | E15FRE | 15H | 1998 |
| Evinrude Johnson | E15FREL | 15H | 1996, 1997 |
| Evinrude Johnson | E15FREL | 15H | 1998 |
| Evinrude Johnson | E15FRLE | 15H | 1995, 1996, 1997 |
| Evinrude Johnson | E15FRLE | 15H | 1998 |
| Evinrude Johnson | E15K | 15H | 1995 |
| Evinrude Johnson | E15R | 15H | 1999, 2000, 2001 |
| Evinrude Johnson | E15R | 15H | 2001 |
| Evinrude Johnson | E15R | 9.9HP 15C | 2001 |
| Evinrude Johnson | J10EE | 9.9H | 1999 |
| Evinrude Johnson | J10FEX | 9.9H | 1995, 1996, 1997, 1998 |
| Evinrude Johnson | J10FRE | 9.9H | 1995, 1996, 1997 |
| Evinrude Johnson | J10FRE | 9.9H | 1998 |
| Evinrude Johnson | J10FRL | 9.9H | 1995, 1996, 1997 |
| Evinrude Johnson | J10FRL | 9.9H | 1998 |
| Evinrude Johnson | J15D | 15H | 1995 |
| Evinrude Johnson | J15EB | 15H | 1999 |
| Evinrude Johnson | J15FK | 15H | 1996, 1997 |
| Evinrude Johnson | J15FRE | 15H | 1995, 1996, 1997 |
| Evinrude Johnson | J15FRE | 15H | 1998 |
| Evinrude Johnson | J15FREL | 15H | 1996, 1997 |
| Evinrude Johnson | J15FREL | 15H | 1998 |
| Evinrude Johnson | J15FRLE | 15H | 1995, 1996, 1997 |
| Evinrude Johnson | J15FRLE | 15H | 1998 |
| Evinrude Johnson | J15K | 15H | 1995 |
| Evinrude Johnson | L10FRE | 9.9H | 1996, 1997 |
| Evinrude Johnson | L10FRE | 9.9H | 1998 |
