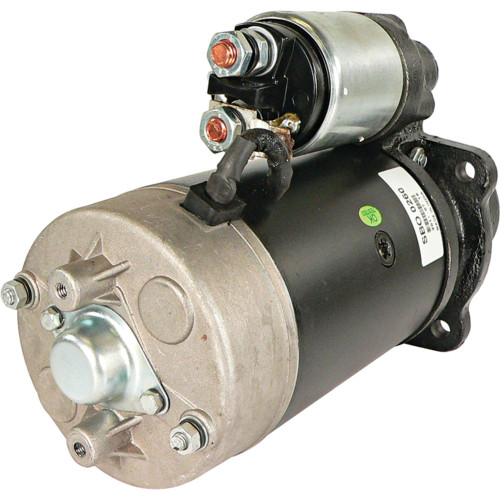

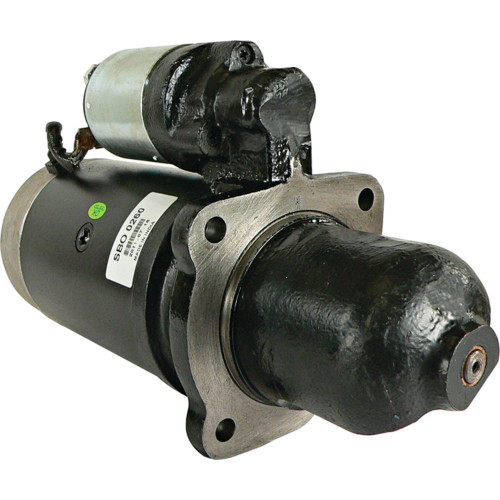

NEW Starter for INTERNATIONAL HARVESTER Tractors; 410-24286, 0001367062, 0-001-367-062, 107358C91; LESTER 19803
$294.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Direct Drive (DD) |
| VOLT | 12 |
| POWER | 3 kw |
| HP | 0:33 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.531″ |
| GEAR OD | 38.900mm |
| LENGTH | 246.700 mm |
| LENGTH | 9.713″ |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 11mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 126.300mm |
| MOUNTING EAR DISTANCE 1 | 4.972″ |
| MOUNTING EAR DISTANCE 2 | 3.531″ |
| MOUNTING EAR DISTANCE 2 | 89.700mm |
| MOUNTING EAR DISTANCE 3 | 3.531″ |
| MOUNTING EAR DISTANCE 3 | 89.700mm |
| REGISTRY OD | 3.441″ |
| REGISTRY OD | 87.400mm |
| WARRANTY | 1 Year |
| M10-1.5 B+ & Motor Studs,
M4-0.7 Threaded S Terminal |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SBO0260 |
| BOSCH | 0001367062, 0-001-367-062 |
| CASEIH | 107358C91 |
| J&N ELECTRICAL PRODUCTS | 410-24286 |
| LESTER | 19803 |
