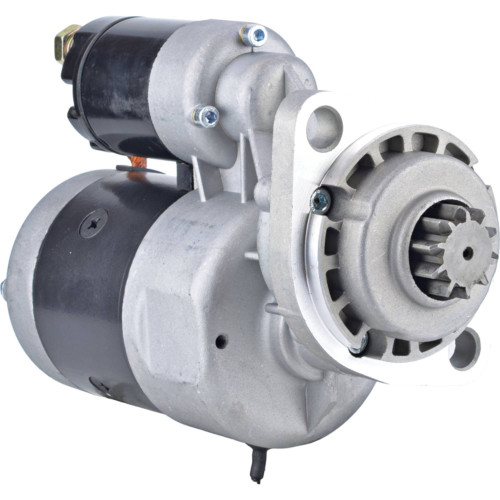

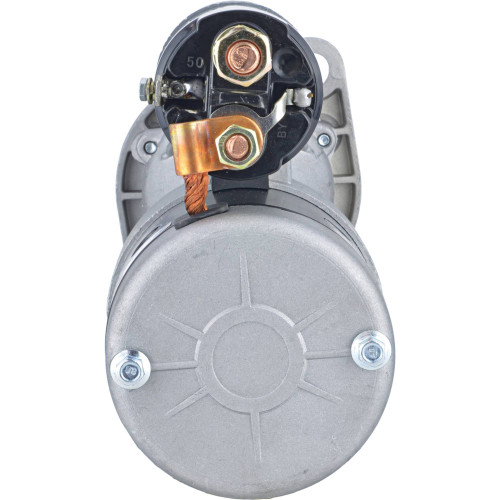

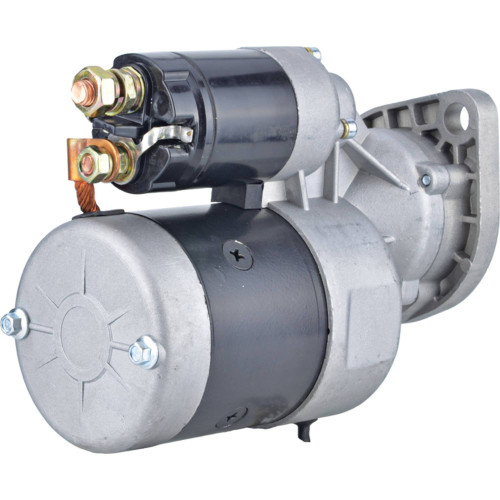

NEW Starter for JOHN DEERE Applications; 410-42000, AL11053, AL62691, AL62773, AL78760, AL787760, AR70437, AT23401, RE500733, RE60384; LESTER 16563, 19835

$219.99

Email
Categories: , ,

Specifications

UNIT TYPE Starter
VOLT 12
POWER 2.700 kw
HP 3.621
ROTATION DIRECTION Clockwise
ELECTRIC STARTER TYPE Offset Gear Reduction (OSGR)
NUMBER OF TEETH 10
GEAR OD 1.224″
GEAR OD 31.100mm
MOUNT HOLE ID 1 13mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
WARRANTY 1 Year

WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD SMA0014
BOSCH 0001359016, 0001359090, 0001362312
JOHN DEERE AL11053, AL62691, AL62773, AL78760, AL787760, AR70437, AT23401, RE500733, RE60384
LESTER 16563, 19835
LUCAS ELECTRIC LRS00565
MAGNETON 443-115-142-700, 9142700, 9-142-700
MAHLE 11.130.569, 11.130.819, 1ZJ3181, AZJ3181, AZJ3283, IS0762, MS264, MS334

Applications

Make Model Engine Years
John Deere 1020 2.7L Diesel 1965 – 1973
John Deere 1030 2.7L Diesel 1970 – 1982
John Deere 1030 Built in Spain –
John Deere 1030OU Built in Spain –
John Deere 1030VU Built in Spain –
John Deere 1032 –
John Deere 1035 Built in Spain –
John Deere 1035EF Built in Spain –
John Deere 1035EV Built in Spain –
John Deere 1040 1970 – 1984
John Deere 1040 Built in Spain –
John Deere 1040V Built in Spain –
John Deere 1042 –
John Deere 1052 –
John Deere 1055 –
John Deere 1065 1982 – 1994
John Deere 1068 1982 – 1994
John Deere 1072 –
John Deere 1075 1982 – 1994
John Deere 1085 1982 – 1994
John Deere 1120 1970 – 1982
John Deere 1130 1970 – 1982
John Deere 1133 –
John Deere 1140 1970 – 1982
John Deere 1140 Built in Spain –
John Deere 1140F Built in Spain –
John Deere 1140V Built in Spain –
John Deere 1144 –
John Deere 1155 –
John Deere 1157 –
John Deere 1158 –
John Deere 1166 –
John Deere 1169 –
John Deere 1174 –
John Deere 1177 –
John Deere 1350 –
John Deere 1445F –
John Deere 1530 Diesel 1974 – 1975
John Deere 1550 –
John Deere 1630 1973 – 1982
John Deere 1630 Built in Spain –
John Deere 1630OU Built in Spain –
John Deere 1630VU Built in Spain –
John Deere 1635 Built in Spain –
John Deere 1635EF Built in Spain –
John Deere 1635EV Built in Spain –
John Deere 1640 1970 – 1982
John Deere 1640 Built in Spain –
John Deere 1640F Built in Spain –
John Deere 1745F –
John Deere 1750 –
John Deere 1750V Built in Spain –
John Deere 1830 1973 – 1982
John Deere 1840 1970 – 1982
John Deere 1840 Built in Spain –
John Deere 1840F Built in Spain –
John Deere 1845F –
John Deere 1850 –
John Deere 1850 Built in Spain –
John Deere 1850F Built in Spain –
John Deere 1850V Built in Spain –
John Deere 1950 –
John Deere 1950 Built in Spain –
John Deere 1950F Built in Spain –
John Deere 2020 1970 – 1979
John Deere 2030 1970 – 1979
John Deere 2030 Built in Spain –
John Deere 2030 Diesel 1971 – 1975
John Deere 2030OU Built in Spain –
John Deere 2035 Built in Spain –
John Deere 2035EF Built in Spain –
John Deere 2040 Built in Spain –
John Deere 2040 Diesel 1972 – 1985
John Deere 2040F Built in Spain –
John Deere 2040S Built in Spain –
John Deere 2120 1970 – 1979
John Deere 2130 1970 – 1979
John Deere 2130 Built in Spain –
John Deere 2135 Built in Spain –
John Deere 2140 1974 – 1982
John Deere 2140 Built in Spain –
John Deere 2150 1983 – 1986
John Deere 2150 Diesel 1982 – 1987
John Deere 2155 –
John Deere 2155 Diesel 1987 – 1992
John Deere 2240 Diesel 1976 – 1982
John Deere 2250 –
John Deere 2250 Built in Spain –
John Deere 2250F Built in Spain –
John Deere 2255 Diesel 1983 – 1987
John Deere 2345F –
John Deere 2350 Diesel 1983 – 1986
John Deere 2355 1987 – 1992
John Deere 2355 Diesel 1986 – 1992
John Deere 2440 Diesel 1976 – 1982
John Deere 2450 –
John Deere 2450 Built in Spain –
John Deere 2450F Built in Spain –
John Deere 2550 Diesel 1982 – 1987
John Deere 2555 Diesel 1987 – 1992
John Deere 2650 –
John Deere 2650 Built in Spain –
John Deere 2650F Built in Spain –
John Deere 2750 Diesel 1983 – 1986
John Deere 2755 Diesel 1987 – 1992
John Deere 2840 Diesel 1977 – 1979
John Deere 2850 –
John Deere 2850 Built in Spain –
John Deere 2855N Diesel 1987 – 1993
John Deere 2940 Diesel 1980 – 1984
John Deere 2950 Diesel 1983 – 1986
John Deere 2955 Diesel 1987 – 1992
John Deere 3030 1979 – 1982
John Deere 3040 1980 – 1984
John Deere 3050 –
John Deere 3055 Diesel 1992
John Deere 3100 –
John Deere 3110 –
John Deere 3120 1970 – 1977
John Deere 3130 Built in Spain –
John Deere 3130 Diesel 1979 – 1982
John Deere 3135 Built in Spain –
John Deere 3140 Built in Spain –
John Deere 3140 Diesel 1970 – 1982
John Deere 3150 Built in Spain –
John Deere 3150 Diesel 1985 – 1987
John Deere 3155 Diesel 1987 – 1992
John Deere 3200 –
John Deere 3210 –
John Deere 3255 Diesel 1992
John Deere 3300 –
John Deere 3310 –
John Deere 3340 Built in Spain –
John Deere 3350 –
John Deere 3350 Built in Spain –
John Deere 3400 –
John Deere 3410 –
John Deere 3640 –
John Deere 3650 –
John Deere 4425 Diesel 1986 – 1988
John Deere 4435 Diesel 1989 – 1994
John Deere 820 3-Cyl 1968 – 1972
John Deere 830 3-Cyl 1972 – 1975
John Deere 840 –
John Deere 920 1970 – 1975
John Deere 925 1975
John Deere 930 1972 – 1979
John Deere 930VU Built in Spain –
John Deere 932 1980
John Deere 935 1975
John Deere 940 1980 – 1984
John Deere 940 Built in Spain –
John Deere 940V Built in Spain –
John Deere 942 1980
John Deere 945 1975
John Deere 952 1977
John Deere 955 1981 – 1983
John Deere 965 1981 – 1983
John Deere 968 1981 – 1983
John Deere 975 1981 – 1983
John Deere 985 –
John Deere CD3029DF 3008 –
