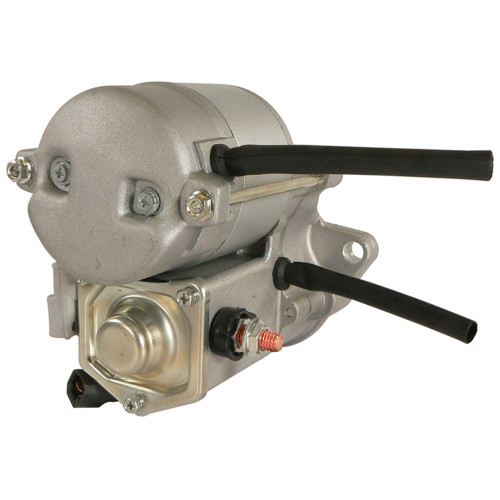

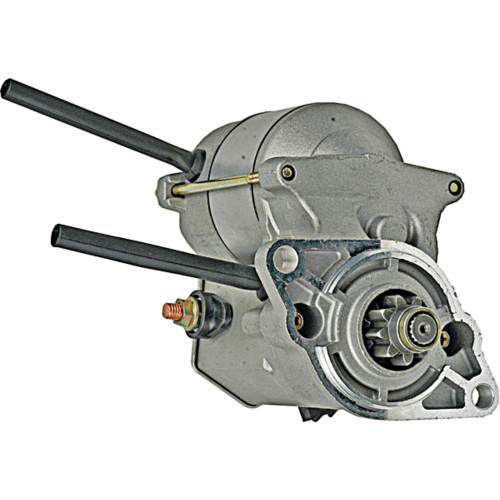

NEW Starter for KAWASAKI KAF620 Mule 3000, 3010, 3020, 4000 & 4010 Utility Vehicle (UTV); 410-52117, 228000-8841, 21163-2124, 21163-6010, K2116-32124; LESTER 18629
$159.99
Specifications
| UNIT TYPE | Starter, Mitsuba SM13 |
| TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 1.200 kw, 1.609 hp |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.142″/29mm |
| MOUNT HOLE 1 ID | 10mm |
| MOUNT HOLE 1 & 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| DENSO | 228000-8841 |
| KAWASAKI | 21163-2124, 21163-6010 |
| LESTER | 18629 |
| SUZUKI | K2116-32124 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Kawasaki | KAF 620 F Mule 3020 Turf | 617cc | |
| Kawasaki | KAF 620 G Mule 3000 | 617cc | |
| Kawasaki | KAF 620 Mule 2520 Turf | 617cc | |
| Kawasaki | KAF 620 Mule 3010 4×4 | 617cc | |
| Kawasaki | KAF 620 Mule 3010 Trans 4×4 | 617cc | |
| Kawasaki | KAF 620 Mule 4010 4×4 | 617cc | |
| Kawasaki | KAF 620 Mule 4010 4×4 | 617cc | 2009, 2010 |
| Kawasaki | KAF 620 Mule 4010 Trans 4×4 | 617cc | 2009 |
| Kawasaki | KAF 620 Mule 4010 Trans 4×4 Hardwoods Green | 617cc | 2009 |
| Kawasaki | KAF 620 P Mule 4000 | 617cc | 2009, 2010 |
