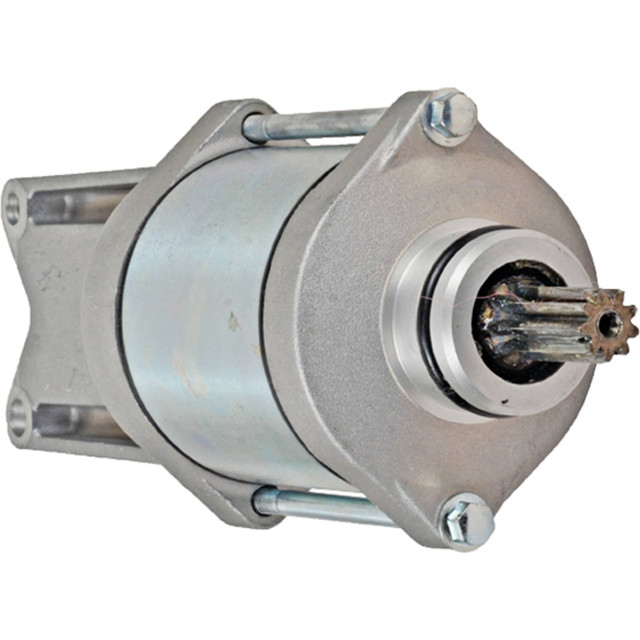

NEW Starter for KAWASAKI KVF 360 B Prairie & KVF 360 C Prairie ATV; 410-54146, STK0465, 21163-0047; LESTER 19058
$174.99
Specifications
| PART TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| VOLT |
12 |
| ROTATION DIRECTION |
Counter Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.472″ |
| GEAR OD |
12mm |
| MOUNT HOLE ID 1 |
6.300mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SMU0465 |
| HI LEVEL |
STK0465 |
| J&N ELECTRICAL PRODUCTS |
410-54146 |
| KAWASAKI |
21163-0047 |
| LESTER |
19058 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Kawasaki |
KVF 360 B Prairie 2×4 |
362cc |
2009 |
| Kawasaki |
KVF 360 C Prairie 4×4 |
362cc |
2009, 2010, 2011, 2012, 2013 |
