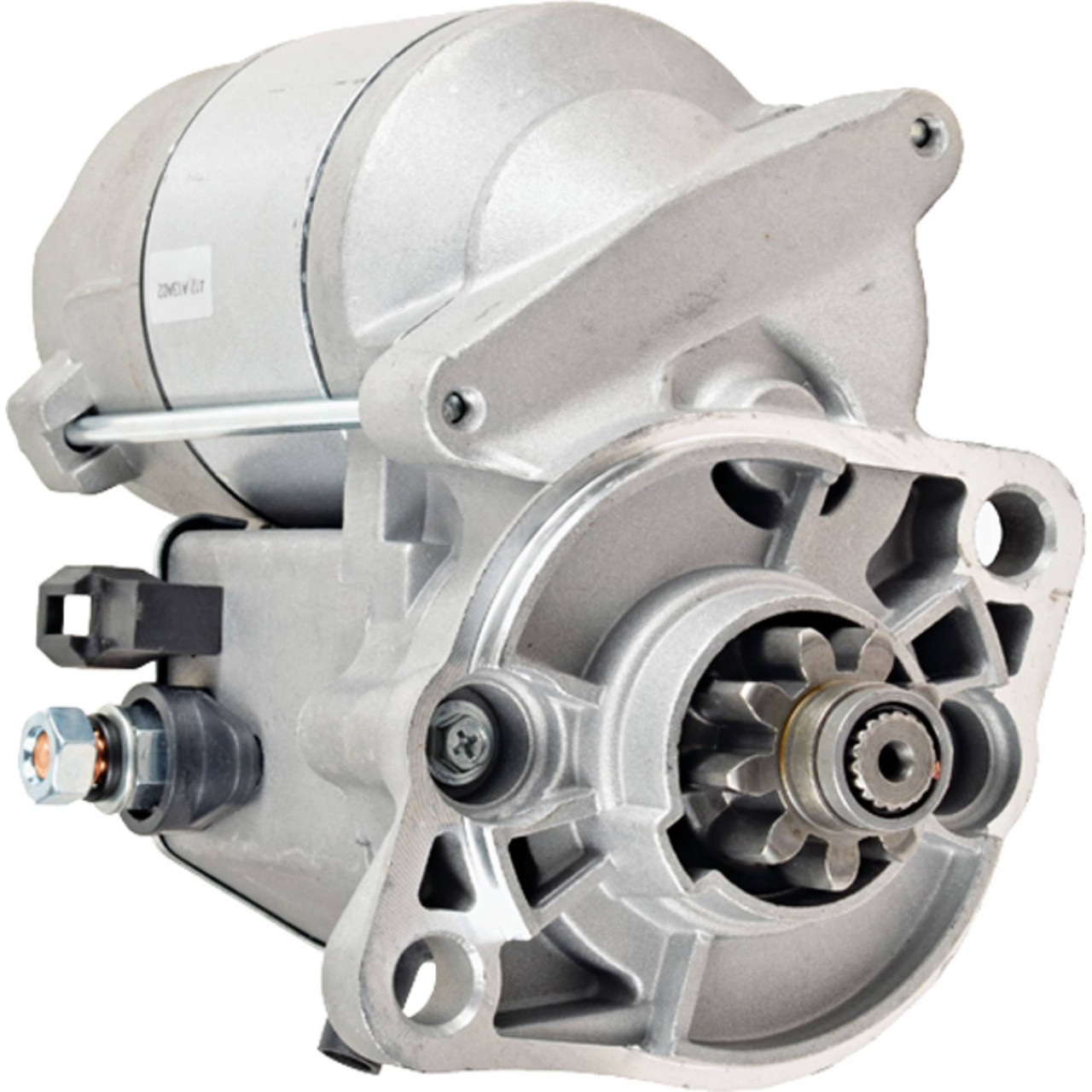

NEW Starter for KUBOTA Diesel Engines Applications; 410-52302, 15321-63015, 15321-63016, 15501-63010, 15501-63011, 15501-63012, 15501-63020, 17311-63010, 17311-63012, 17331-63010, 17331-63011, 17331-63012; LESTER 16221, 17363
$189.99
Specifications
| UNIT TYPE |
Starter |
| FAMILY |
Denso R |
| ELECTRIC STARTER TYPE |
Offset Gear Reduction (OSGR) |
| VOLT |
12 |
| POWER |
1 kw |
| HP |
1.341 |
| CONDITION |
New |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
1.319″ |
| GEAR OD |
33.500mm |
| MOUNT HOLE ID 1 |
11.200mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
ND028000-3611, ND128000-6843, ND9702809-843, ND9712809-662, ND9712809-684, S-8100 |
| DENSO |
028000-361, 028000-3610, 028000-3611, 028000-843, 028000-8430, 028000-8431, 028000-8432, 128000-6620, 128000-6621, 128000-6622, 128000-6840, 128000-6841, 128000-6842, 128000-6843, 9702809-843, 9712809-662, 9712809-684 |
| KUBOTA |
15321-63015, 15321-63016, 15501-63010, 15501-63011, 15501-63012, 15501-63020, 17311-63010, 17311-63012, 17331-63010, 17331-63011, 17331-63012 |
| LESTER |
16221, 17363 |
| LUCAS ELECTRIC |
LRS01130, LRS01325 |
| UNIVERSAL MARINE |
298876, 302886 |
Applications
| Make |
Model |
Engine |
Years |
| Kubota |
D1100 |
|
1972 |
| Kubota |
KC15 |
DH1102BS |
1976 – 1991 |
| Kubota |
L225F |
24HP Diesel |
1973 – 1977 |
| Kubota |
L235DT |
23HP Diesel |
1981 – 1985 |
| Kubota |
L245 |
25HP Diesel |
1977 – 1982 |
| Kubota |
L275DT |
27HP Diesel |
1981 – 1985 |
| Kubota |
L275F |
27HP Diesel |
1981 – 1985 |
| Kubota |
NSU18 |
DH1101BS |
1974 |
| Kubota |
NX2200 |
|
1974 |
