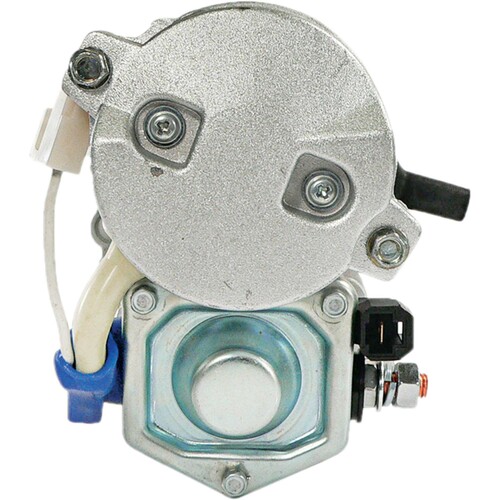

NEW Pump Motor for MONARCH, MTE, THIEMAN & TOMMY Applications; 430-20034, 220-0480, 70091739, 70092312, 70092313, 70092359, MHN4001, MUE6107, MUE7003; LESTER 10728, 6126

Name: NEW Pump Motor for MONARCH, MTE, THIEMAN &amp; TOMMY Applications; 430-20034, 220-0480, 70091739, 70092312, 70092313, 70092359, MHN4001, MUE6107, MUE7003; LESTER 10728, 6126
SKU: 8363
Availability: InStock

$169.99

Categories: Backhoe Loader, Excavator, Mower, Starter, Tractor - Compact, Utility Vehicle (UTV)

Specifications

Unit Type	Starter
VOLT	12
POWER	1.400 kw
HP	1.877
ROTATION DIRECTION	Clockwise
ELECTRIC STARTER TYPE	Offset Gear Reduction (OSGR)
NUMBER OF TEETH	13
GEAR OD	1.559″
GEAR OD	39.600mm
LENGTH	157 mm
LENGTH	6.181″
MOUNT HOLE ID 1	9mm
MOUNT HOLE 1 TYPE	Unthreaded
MOUNT HOLE 2 TYPE	Unthreaded
REGISTRY OD	2.594″
REGISTRY OD	65.900mm
MOUNTING EAR DISTANCE 1	108.500mm
MOUNTING EAR DISTANCE 1	4.272″
WARRANTY	1 Year

Applications

MAKE	MODEL	ENGINE	YEAR
AVANT TECHNO	528	Kubota D110
AVANT TECHNO	530+	Kubota D1105-
AVANT TECHNO	630	Kubota D110
Carrier Transicold	Maxima	1500cc, 1.5L CT4-91-TV Diesel , Diesel
Kubota	BX22	22HP Diesel , Diese	2002, 2003
Kubota	BX22	Kubota D905E-BX 22HP Ds	2002, 2003
Kubota	BX2200D	22HP Diesel , Diese	2001, 2002, 2003
Kubota	BX2200D	Kubota D905E-BX 22HP Ds	2001, 2002, 2003
Kubota	BX2200D
Kubota	BX22D	Kubota RCK54-22B
Kubota	BX22D	Kubota RCK60B-22B
Kubota	BX22D
Kubota	BX23D
Kubota	BX2660D	Kubota RCK54-23B
Kubota	BX2660D	Kubota RCK54-P23B
Kubota	BX2660D	Kubota RCK60B23B
Kubota	BX2670
Kubota	BX2670-1	Kubota RCK54-23B
Kubota	BX2670-1	Kubota RCK54-P23B
Kubota	BX2670-1	Kubota RCK60B23B
Kubota	BX2680
Kubota	D905E	1.4k
Kubota	G1800	16HP D662 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1800	Kubota D662 16HP Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1800S	16HP D662 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1800S	Kubota D662 16HP Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1900	18HP D722 Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	G1900	Kubota D722 18HP Ds	1989, 1990, 1991, 1992, 1993, 1994, 1995
Kubota	GF1800E-R	18HP D722 Diesel , Diese	2005
Kubota	GF1800E-R	Kubota D722 18HP Ds
Kubota	GF1800-R	18HP D722 Diesel , Diese	2005
Kubota	GF1800-R	Kubota D722 18HP Ds
Kubota	KX41-2	21HP D1105BH Diesel , Diese	1995
Kubota	KX41-2	Kubota D1105BH 21.6HP Ds
Kubota	KX41-2
Kubota	KX41-2S	21HP D1105BH Diesel , Diese	2000
Kubota	KX41-2S	Kubota D1105BH 21.6HP Ds
Kubota	KX41-2SV	21HP D1105BH Diesel , Diese	2000
Kubota	KX41-2SV	Kubota D1105BH 21.6HP Ds
Kubota	KX61-2	27HP D1105BH Diesel , Diese	1995
Kubota	KX61-2	Kubota D1105BH 27HP Ds
Kubota	KX61-2S	27HP D1105BH Diesel , Diese	1995
Kubota	KX61-2S	Kubota D1105BH 27HP Ds
Kubota	KX91-2	27HP V1505BH Diesel , Diese	1995
Kubota	KX91-2	Kubota V1505BH 27.5HP Ds
Kubota	KX91-2
Kubota	KX91-2S	27HP V1505EBH Diesel , Diese	2000
Kubota	KX91-2S	Kubota V1505EBH 27.5HP Ds
Kubota	RTV 1100	1140cc, Kubota D1105-E2-UV 24.8HP Dsl
Kubota	RTV 900 G-H	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 G-K	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 G-T	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 R
Kubota	RTV 900 R-ASD	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 S-ASD	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 T	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 T-TSD	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 W	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 W6SE	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 W9SE
Kubota	RTV 900 W-HSD	Kubota D902E-UV 21.6HP Ds
Kubota	RTV 900 XT	Kubota D902-E3-UV 21.6HP Ds
Kubota	RTV 900
Kubota	RTV-X 1100 C	Kubota D1105-E4-UV 24.8HP Ds
Kubota	RTV-X 1120 D	Kubota D1105-E4-UV 24.8HP Ds
Kubota	RTV-X 900	Kubota D902-E4-UV 21.6HP Ds
Kubota	RTV-X 900
Kubota	RTV-X900
Kubota	TG1860	18HP D722EGX Diesel , Diese	1997
Kubota	TG1860	Kubota D722E-GX 18HP Ds
Kubota	ZG332LP	Kubota RCK72P-332
Thomas Equipment	T84	D772B Diesel , Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Thomas Equipment	T84	Kubota D722B Diese	1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

Manufacturer Name	Manufacturer Part #
ARROWHEAD	ND9722809-632
BOMAG	5740606
DENSO	228000-6320, 228000-6321, 9722809-632
KUBOTA	16235-63010, 16235-63011, 16235-63012, 17423-63010, 17423-63011, 77700-02602, K7571-96810, LRS02308
LEECE NEVILLE	20513076
LESTER	30564
LUCAS ELECTRIC	LRS02308
