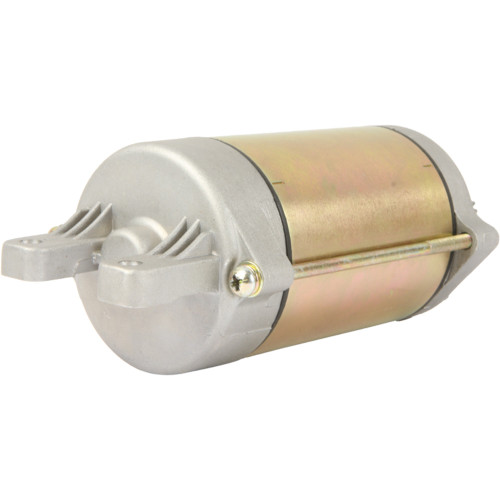

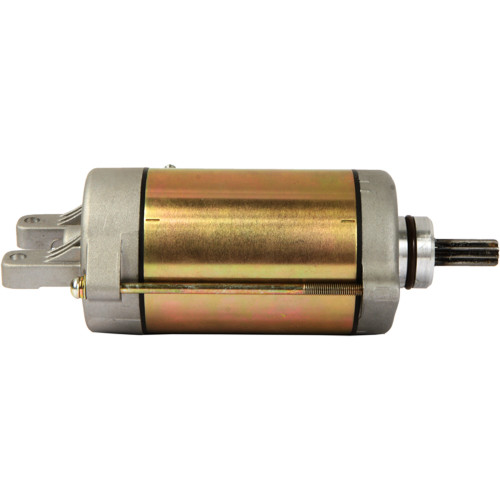

NEW Starter for KYMCO MXU 500, UXV 500 & Xciting 500 Applications; 410-58045, 31210LBA2E00; LESTER 19228
$159.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.441″ |
| GEAR OD | 11.200mm |
| MOUNT HOLE ID 1 | 6.400mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SCH0051 |
| KYMCO | 31210LBA2E00 |
| LESTER | 19228 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| Kymco | MXU 500 | 499cc | 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
| Kymco | MXU 500 IRS 4×4 | 499cc | 2009, 2010, 2011, 2012, 2013, 2014 |
| Kymco | MXU 500i | 499cc | 2010, 2011, 2012, 2013, 2014 |
| Kymco | UXV 500 | 499cc | 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 |
| Kymco | UXV 500i | 499cc | 2011, 2012, 2013, 2014, 2015 |
| Kymco | Xciting 500 | 499cc | 2005, 2006, 2007 |
| Kymco | Xciting 500i | 499cc | 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
| Kymco | Xciting 500i R | 499cc | 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
