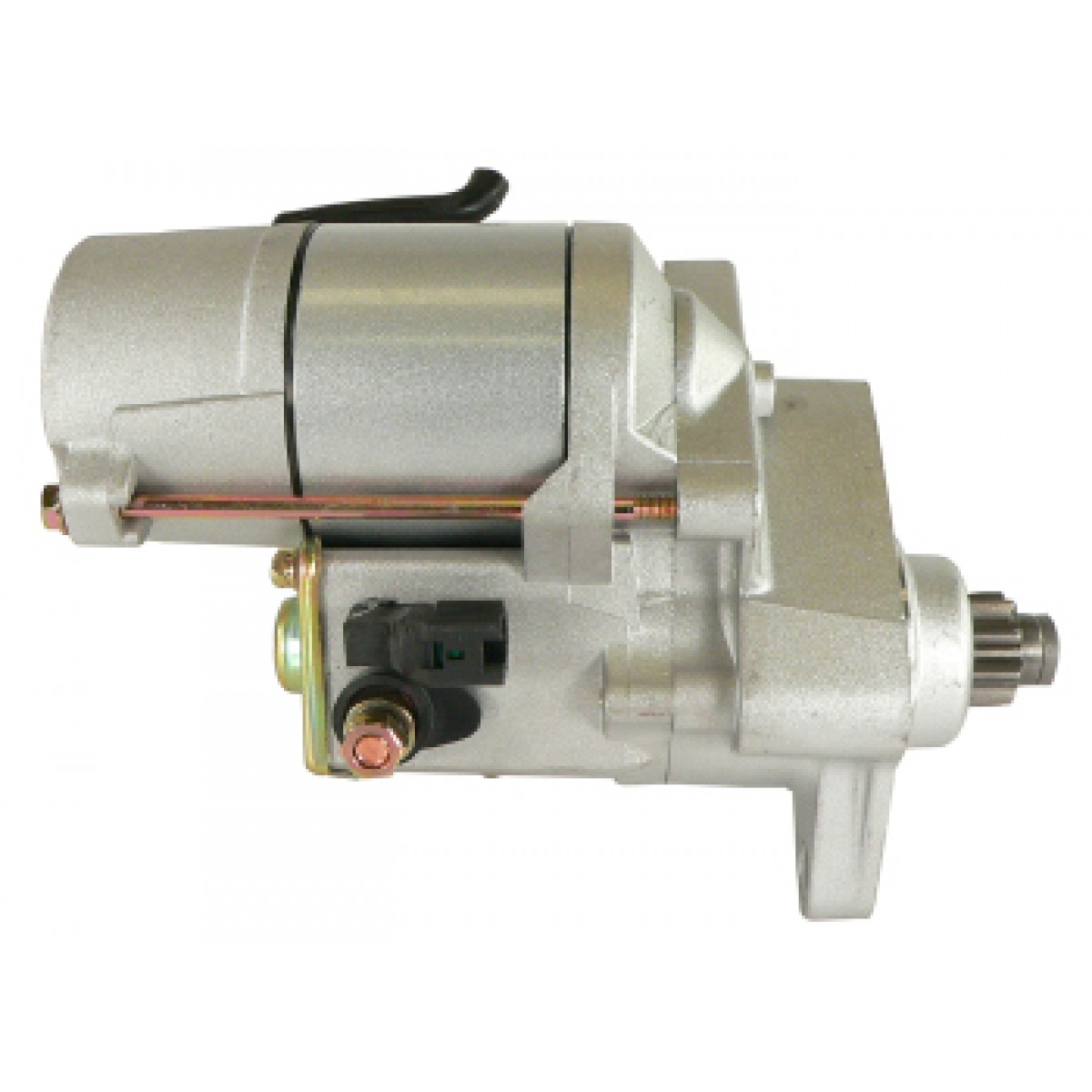

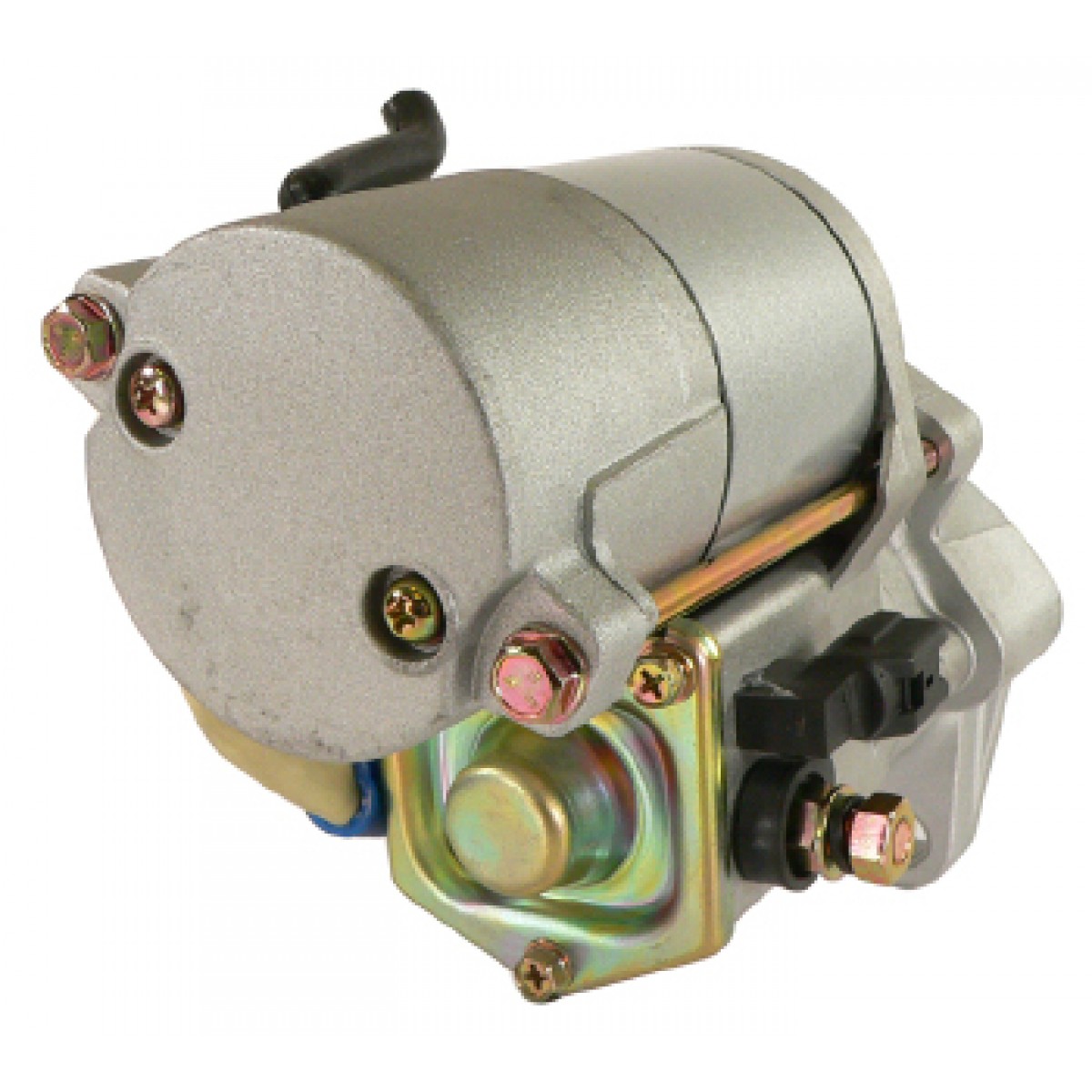

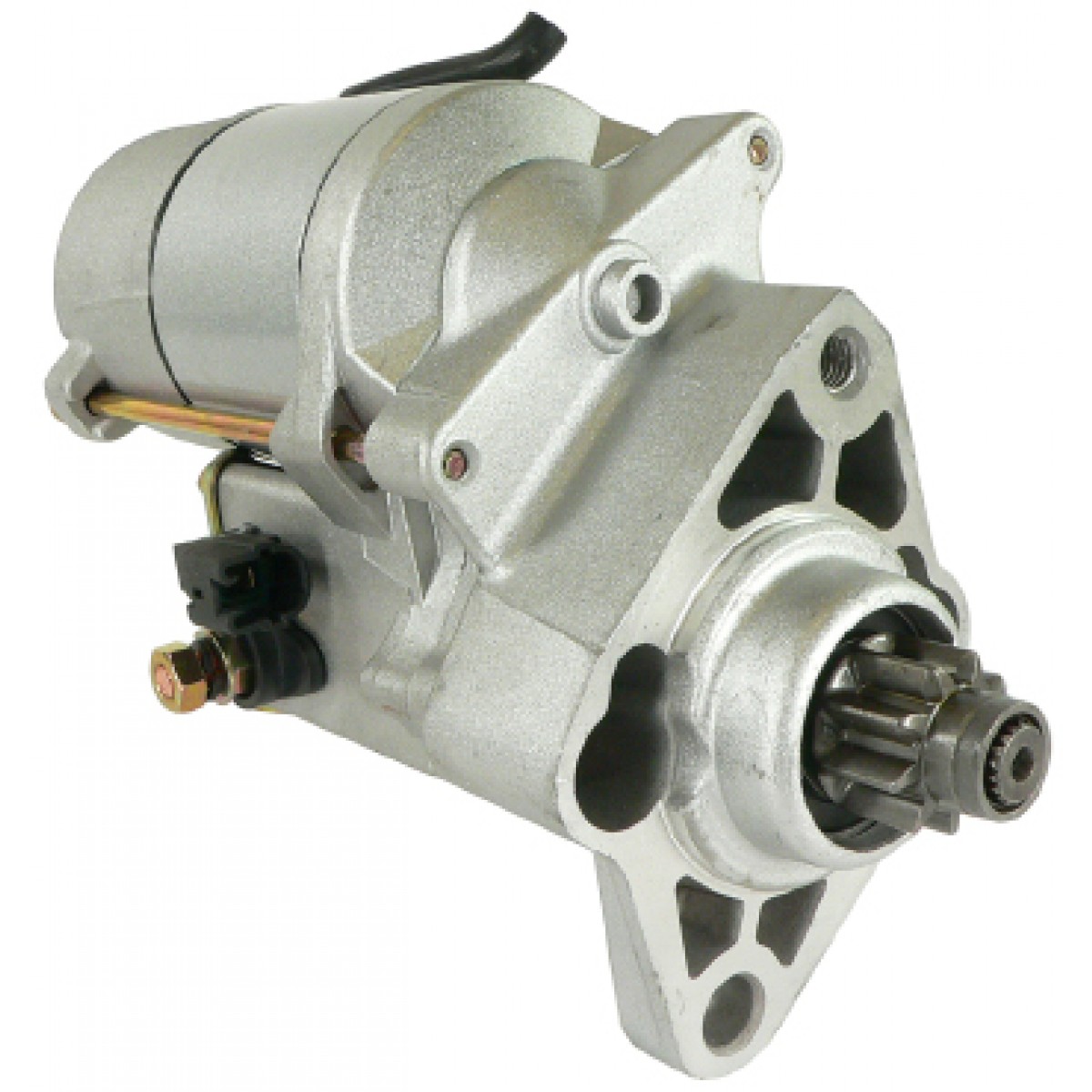

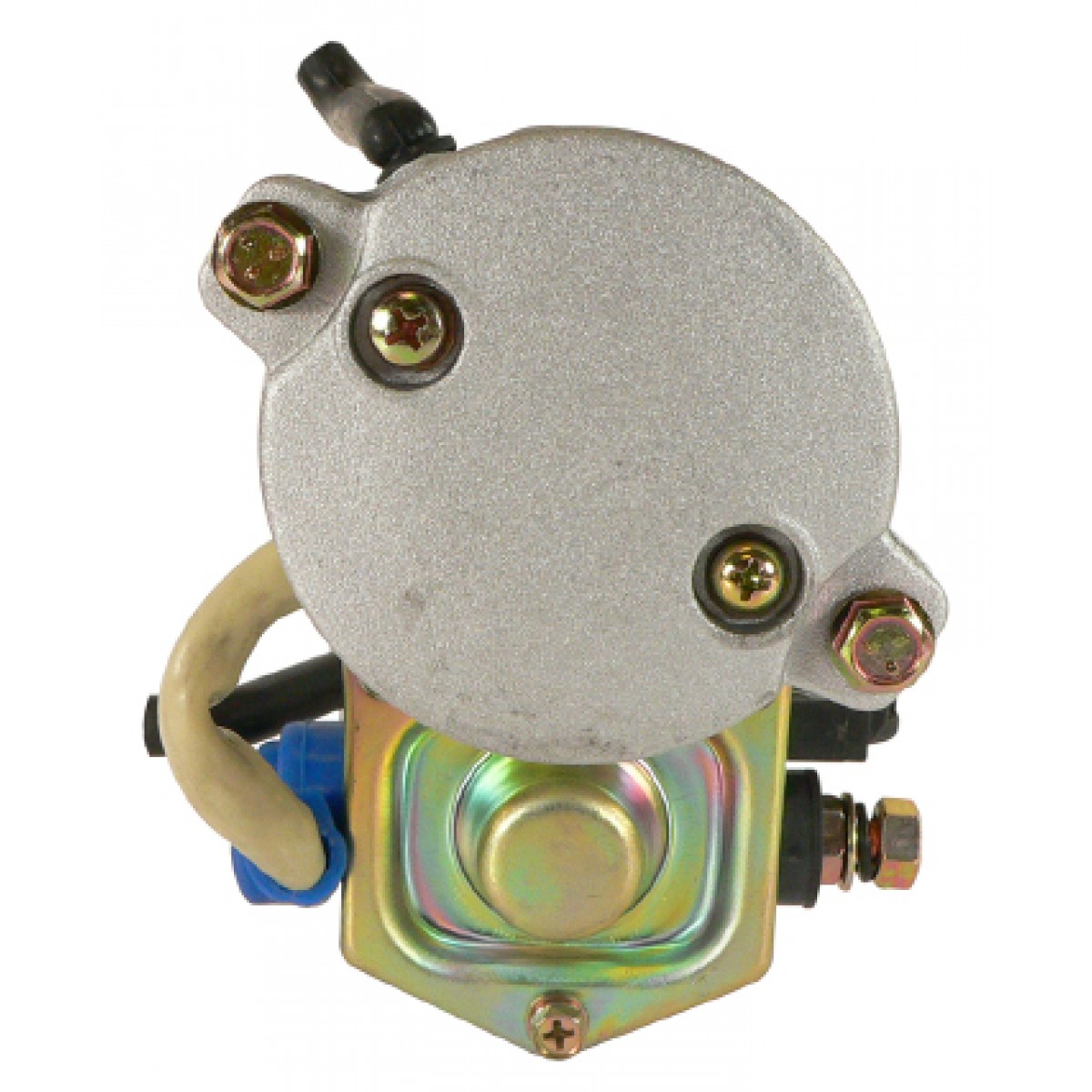

NEW Starter for LAND ROVER LR3 & RANGE ROVER Applications; 410-52482, LR009298, NAD500160, NAD500160E, NAD500310; LESTER 19019
$219.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Offset Gear Reduction (OSGR) |
| VOLT |
12 |
| POWER |
1.800 kw |
| HP |
9:56 |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
1.118″ |
| GEAR OD |
28.400mm |
| MOUNT HOLE ID 1 |
M10x1.50 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
|
M8 B+ & Motor Studs, Spade S Terminal, 110mm Mounting Hole Center To Center, 62mm Registry OD |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SND0649 |
| DENSO |
280-0364, 428000-192, 428000-1920, 428000-1921, 428000-1922 |
| J&N |
410-52482 |
| LESTER |
19019 |
| LUCAS ELECTRIC |
LRS02609, LRS2609 |
| OTHER OEMS |
LR009298, NAD500160, NAD500160E, NAD500160F, NAD500298, NAD500310, NAD600310 |
| ROVER |
LR009298, NAD500160, NAD500160E, NAD500310 |
Part fit
| Year |
Make |
Model |
Engine |
| Year |
Make |
Model |
Engine |
| 2008 - 2009 |
LAND ROVER |
LR3 |
4.4L |
| 2008 - 2009 |
LAND ROVER |
RANGE ROVER |
4.2L |
| 2008 - 2009 |
LAND ROVER |
RANGE ROVER |
4.4L |
