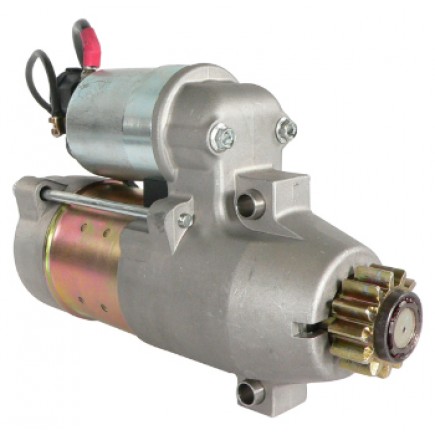

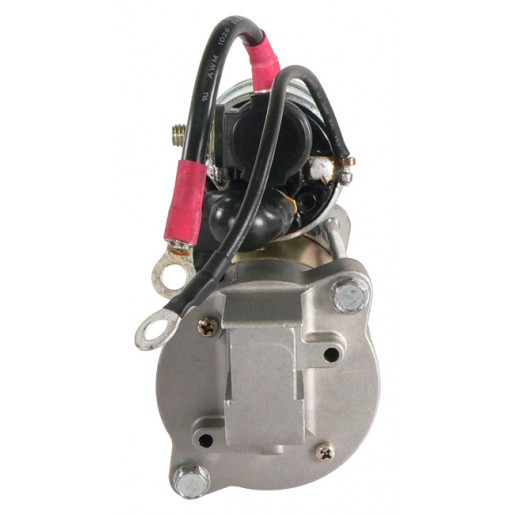

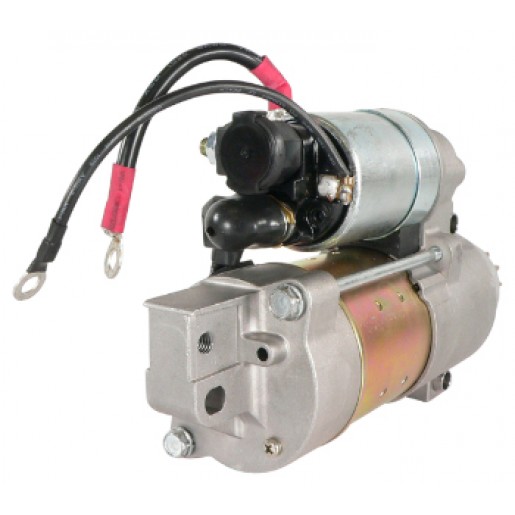

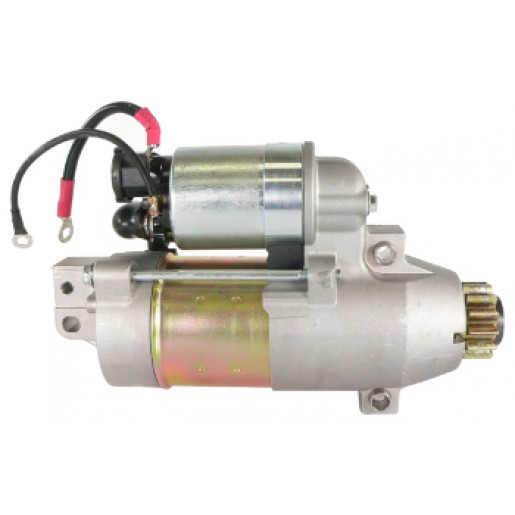

NEW Starter for MARINER, MERCURY & YAMAHA Marine Engines; 410-44071, 50-804312T1, 804312T1, 67F81800-00, 67F81800-01, 67F81800-02; LESTER 18347
$264.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| VOLT | 12 |
| POWER | 1.400 kw |
| HP | 1.877 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 13 |
| GEAR OD | 1.571″ |
| GEAR OD | 39.900mm |
| MOUNT HOLE ID 1 | 8.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| WARRANTY | 1 Year |
| Battery Stud M8-1.25 Threaded, 130mm Ignition Lead, 100mm Battery Lead |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | S114-828B, S114-828C, SHI0128 |
| EMP | 4-6425 |
| HITACHI | S114-828A, S114-828B, S114-828C, S114-828DN |
| J&N | 410-44071 |
| LESTER | 18347 |
| MERCURY MARINE | 50-804312T1, 804312T1 |
| SIERRA MARINE | 18-6425 |
| YAMAHA | 67F81800-00, 67F81800-01, 67F81800-02 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1999 - 2002 | YAMAHA | F100TLR | 100HP |
| 1999 - 2002 | YAMAHA | F100TXR | 100HP |
| 1999 - 2002 | YAMAHA | F80TLR | 80HP |
| 2000 - 2001 | MARINER | 75ELHPT 4-Stroke | 84.6ci - 75 HP |
| 2000 - 2001 | MARINER | 75ELPT 4-Stroke | 84.6ci - 75 HP |
| 2000 - 2001 | MARINER | 90ELHPT 4-Stroke | 1.6L - 97.4ci - 90 HP |
| 2000 - 2001 | MARINER | 90ELPT 4-Stroke | 1.6L - 97.4ci - 90 HP |
| 2000 | MARINER | 90ELPT Coastal 4-Stroke | 1.6L - 97.4ci - 90 HP |
| 2000 - 2001 | MERCURY | 75ELHPT 4-Stroke | 84.6ci - 75 HP |
| 2000 - 2001 | MERCURY | 90ELHPT 4-Stroke | 90HP |
| 2000 - 2004 | MERCURY | 90ELPT 4-Stroke | 90HP |
| 2000 - 2005 | MERCURY | 75ELPT 4-Stroke | 84.6ci - 75 HP |
| 2000 | YAMAHA | F80TXR | 80HP |
| 2001 | MARINER | 90EXLPT Saltwater 4-Stroke | 1.6L - 97.4ci - 90 HP |
| 2001 - 2002 | YAMAHA | F80TJR | 80HP |
| 2001 - 2005 | MERCURY | 90EXLPT Saltwater 4-Stroke | 97.4ci - 90 HP |
| 2003 - 2004 | YAMAHA | F75TLR | 75HP |
| 2003 - 2004 | YAMAHA | F90TJR | 90HP |
| 2003 - 2004 | YAMAHA | F90TLR | 90HP |
| 2004 - 2005 | MERCURY | 90ELPT Saltwater 4-Stroke | 97.4ci - 90 HP |
| 2005 | MERCURY | 90ELPT 4-Stroke | 97.4ci - 90 HP |
