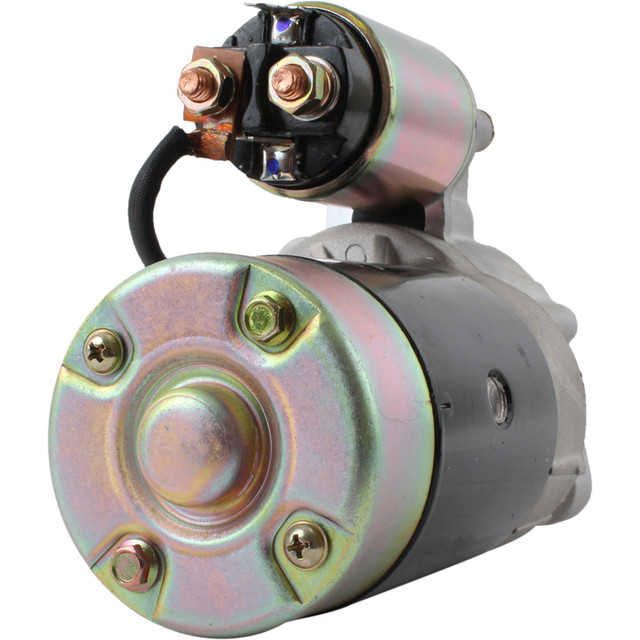

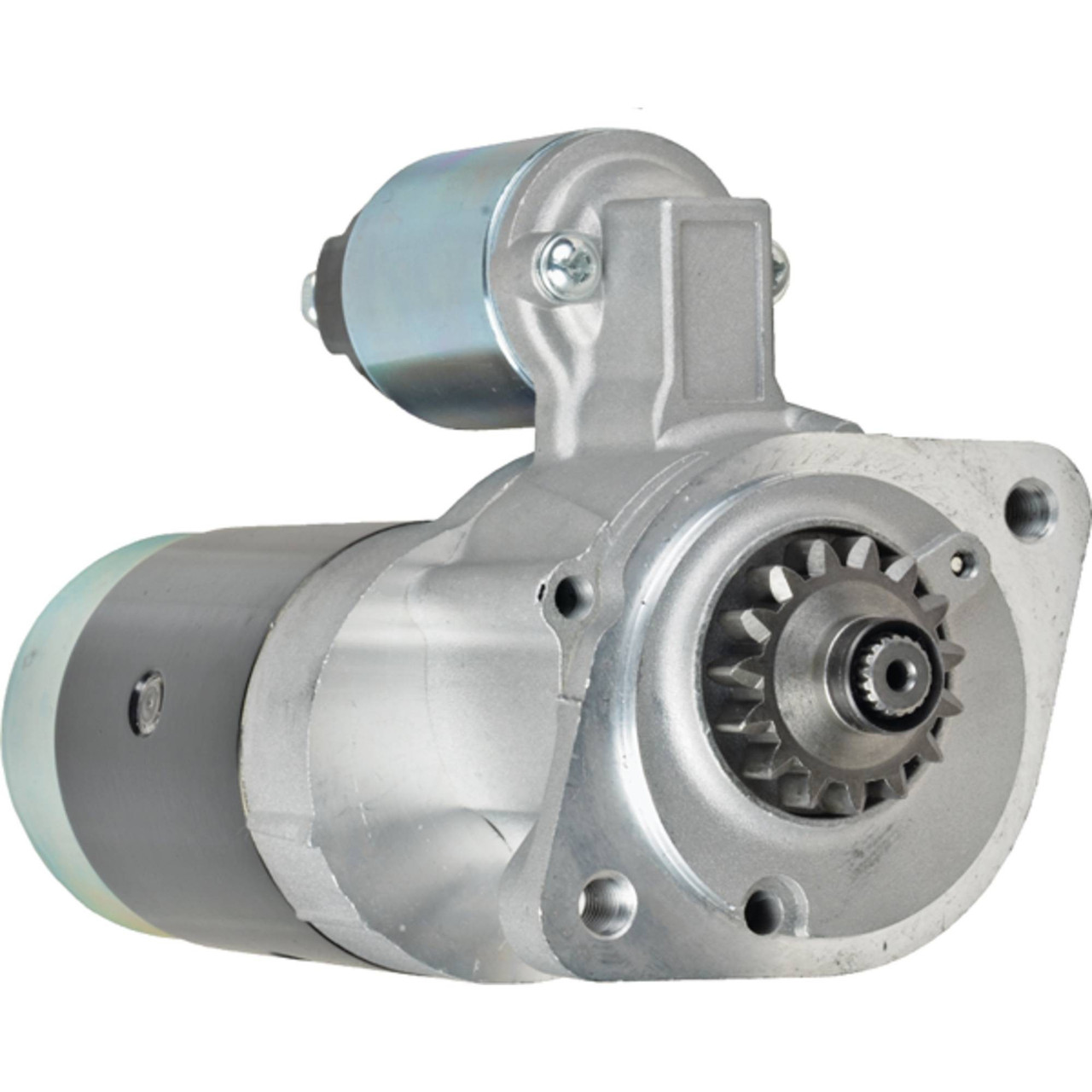

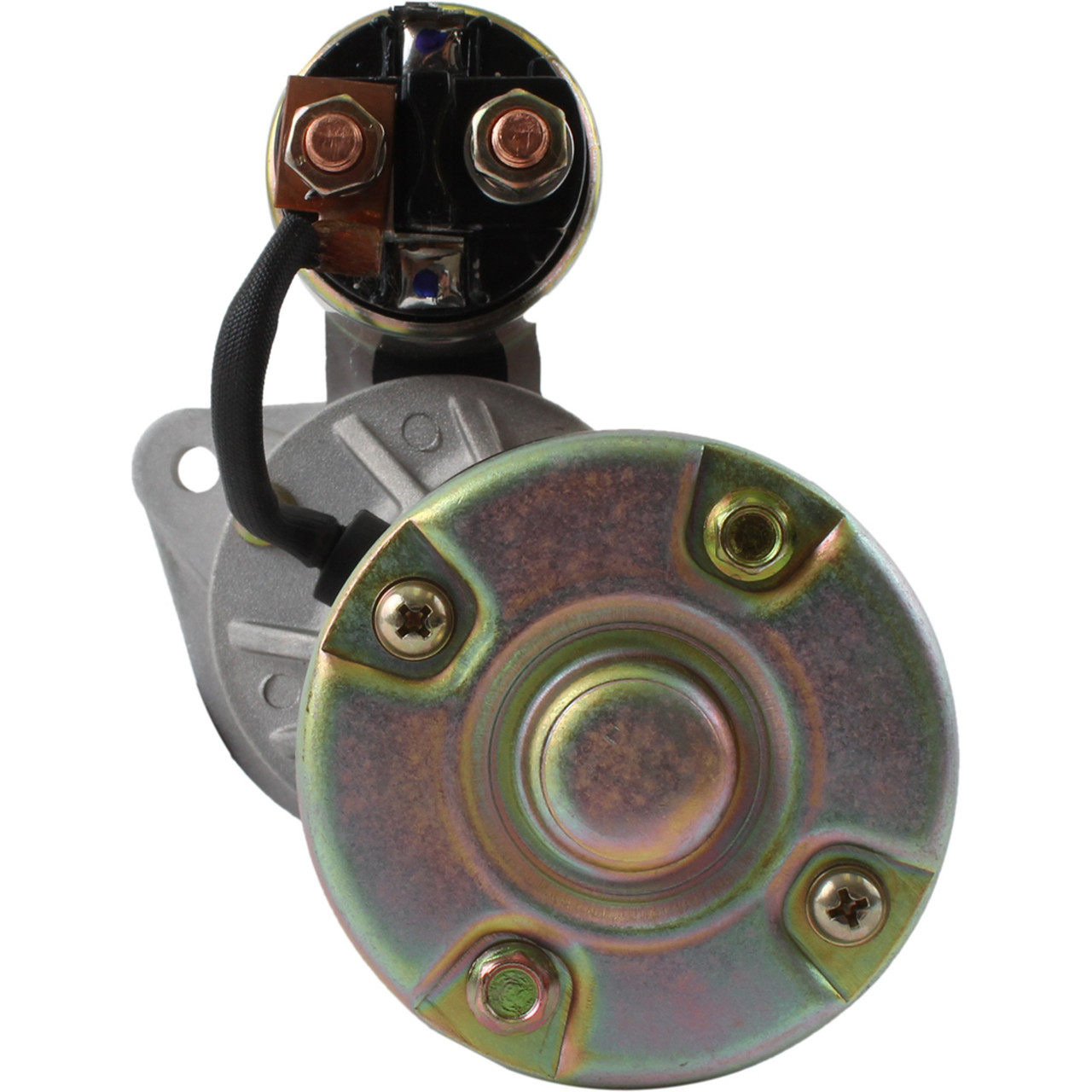

NEW Starter for MITSUBISHI L2A, L2E, L3E& TORO Applications; 410-48036, M2T50271, M2T50281, M2T50281ZC, M2T50285, M2T53681, MM317600, MM31760001, MM317601, MM317602, MM317604; LESTER 17097, 19713
$194.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Offset Gear Reduction (OSGR) |
| ROTATION DIRECTION |
Clockwise |
| VOLT |
12 |
| POWER |
2 kw |
| HP |
2.682 |
| NUMBER OF TEETH |
15 |
| GEAR OD |
1.772″ |
| GEAR OD |
45mm |
| MOUNT HOLE ID 1 |
M10x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE ID 2 |
M10x1.25 |
| MOUNT HOLE 2 TYPE |
Threaded |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
M2T50281, M2T50285, M2T53681, SMT0319 |
| DELCO |
DRS3936 |
| J&N ELECTRICAL PRODUCTS |
410-48036 |
| LUCAS ELECTRIC PRODUCTS |
LRS01145, LRS02627 |
| MITSUBISHI |
M002T50281ZC, M2T50271, M2T50281, M2T50281ZC, M2T50285, M2T53681, MM317600, MM31760001, MM317601, MM317602, MM317604 |
| SCHAEFF INC |
5527662777, 5999999577, 5999999877 |
| TORO |
67-4600, 70-8760 |
| VOLVO |
7410733 |
| WEIDEMANN |
5166001159, 5166001163, 5166317604, 5166317612 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Mitsubishi |
L2A |
L2A-61D |
|
| Mitsubishi |
L2A |
L2A-61S |
|
| Mitsubishi |
L2A |
L2A-62S |
|
| Mitsubishi |
L2E |
L2E-61D |
|
| Mitsubishi |
L2E |
L2E-61HM |
|
| Mitsubishi |
L2E |
L2E-61S |
|
| Mitsubishi |
L2E |
L2E-61T |
|
| Mitsubishi |
L2E |
L2E-62S |
|
| Mitsubishi |
L3E |
L3 L3E-61HM |
|
| Mitsubishi |
L3E |
L3 L3E-61S |
|
| Mitsubishi |
L3E |
L3 L3E-61T |
|
| Mitsubishi |
L3E |
L3 L3E-62S |
|
| Mitsubishi |
L3E |
L3E-61HM |
|
| Mitsubishi |
L3E |
L3E-61S |
|
| Mitsubishi |
L3E |
L3E-61T |
|
| Mitsubishi |
L3E |
L3E-62S |
|
| Toro |
Groundsmaster 220D |
Ds |
|
| Toro |
Groundsmaster 223D |
Ds |
|
| Toro |
Groundsmaster 224 |
|
|
| Toro |
Reelmaster 223D |
|
|
| Toro |
Reelmaster 5100D |
|
|
| Toro |
Workman 1300-D |
|
1998 |
| Toro |
Workman 3300-D |
Mitsubishi 21HP Ds |
1993, 1994, 1995, 1996, 1997 |
| Toro |
Workman 3300-D |
Mitsubishi 21HP Ds |
1998, 1999, 2000, 2001 |
| Toro |
Workman 3310-D |
|
1999, 2000 |
| Toro |
Workman 3320-D |
|
1999 |
| Toro |
Workman 4300-D |
Mitsubishi 23HP Ds |
1995, 1996, 1997, 1998, 1999, 2000, 2001 |
