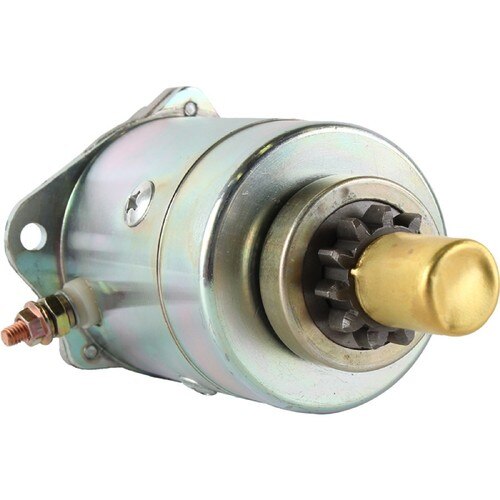

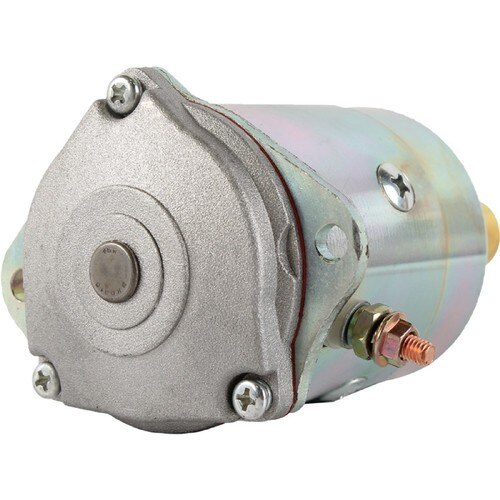

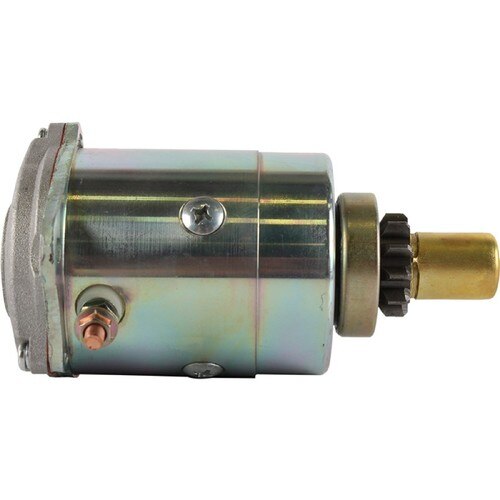

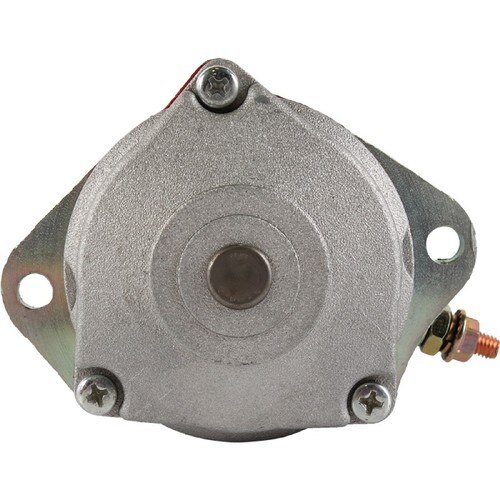

June 26, 2020NEW Starter for PIAGGIO VESPA PK50, PK125 & APE 50 Scooters; 410-58096, 179116, 1791165, 36635; LESTER 37034
$159.99
Specifications
UNIT TYPE | Starter |
ELECTRIC STARTER TYPE | Direct Drive (DD) |
VOLT | 12 |
ROTATION DIRECTION | Counter Clockwise |
NUMBER OF TEETH | 11 |
GEAR OD | 1.142″ |
GEAR OD | 29mm |
LENGTH | 137.400 mm |
LENGTH | 5.409″ |
MOUNT HOLE ID 1 | 6.400mm |
MOUNT HOLE 1 TYPE | Unthreaded |
MOUNT HOLE 2 TYPE | Unthreaded |
MOUNTING EAR DISTANCE 2 | 3.071″/ 78mm |
SHORT DESCRIPTION | PIAGGIO VESPA PK50, PK125, APE 50 ADDL INFO: EUROPEAN MODELS |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | SCH0099 |
EFEL. | 36635 |
HI LEVEL | STV0099 |
J & N | 410-58096 |
LESTER | 37034 |
PIAGGIO | 179116 |
PIAGGIO | 1791165 |
SOCIETA GENERALE RICAMBI | 17.8100, 17.81001 |
WAI | 37034N |
