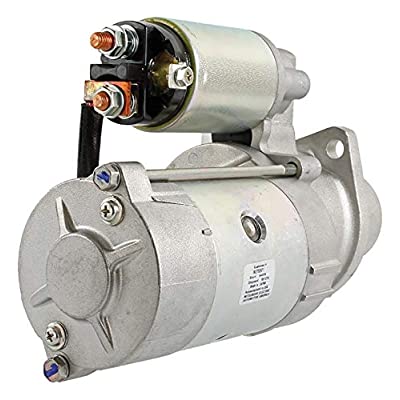

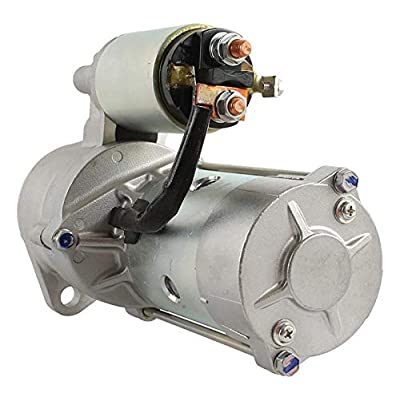

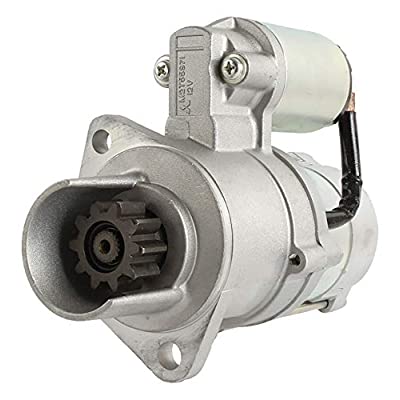

NEW Starter for Power Generators w/ ONAN ENGINE; 410-48319, M2T55971, 191-1399; LESTER 18168
$299.99
Specifications
| UNIT TYPE | Starter |
| CRITICAL NOTE | When Replacing MEO6003, Onan Adapter Plate #191-1400 is Required |
| ELECTRIC STARTER TYPE | Offset Gear Reduction (OSGR) |
| VOLT | 12 |
| POWER | 2.200 kw |
| HP | 22:48 |
| ROTATION DIRECTION | Counter Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.575″ |
| GEAR OD | 40mm |
| LENGTH | 213 mm |
| LENGTH | 8.386″ |
| MOUNT HOLE ID 1 | 10.700mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 102.600mm |
| MOUNTING EAR DISTANCE 1 | 4.039″ |
| REGISTRY OD | 3.248″ |
| REGISTRY OD | 82.500mm |
| WARRANTY | 1 Year |
| M8 B+ & Motor Studs @M5 Threaded S Tab |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMT0183 |
| ARROWHEAD (OEM) | M2T55971 |
| J & N | 410-48319 |
| LESTER | 18168 |
| API MARINE | ST1398 |
| API MARINE | ST6003NK |
| API MARINE | ST55971 |
| BBB HD | 18168 |
| DIXIE | S-8620 |
| DUBOIS | M900431 |
| MINNPAR | 57-3135 |
| MITSUBISHI | M2T55971 |
| MPA HD | X718168 |
| NAPA HD | 18168 |
| ONAN | 191-1399 |
| REMY SMALL MOTOR | RS41175 |
| WAI | 2-2093-MI |
| WAI (OLD) | 2-2093-MI |
| WILSON | 91-27-3151 |
| WILSON HD | 91-27-3151 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| All | ONAN | DJC | All |
| All | ONAN | RDJC | All |
| All | ONAN | RDJF | All |
