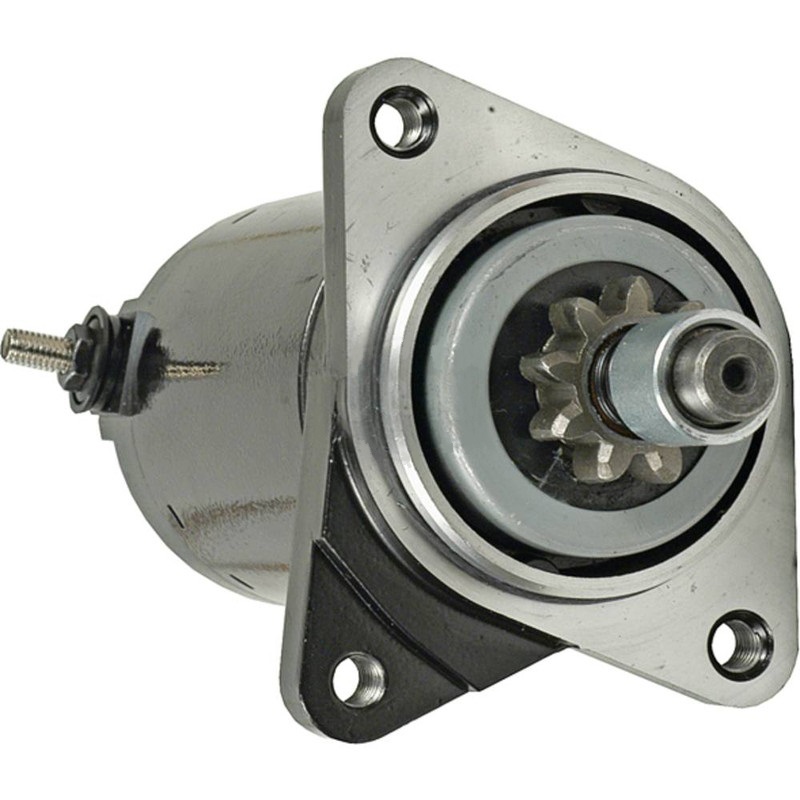

NEW Starter for Rotax Marine & Sea-Doo GSX, GTX, SPX; 410-52041, 278-000-576, 278-000-577, 278-001-038, 278-001-301; LESTER 18416
$119.99
Specifications
| UNIT TYPE |
Starter |
| VOLT |
12 |
| POWER |
0.600 kw |
| HP |
0.805 |
| ROTATION DIRECTION |
Counter Clockwise |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| NUMBER OF TEETH |
9 |
| GEAR OD |
1.146″ |
| GEAR OD |
29.100mm |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE ID 2 |
M8x1.25 |
| MOUNT HOLE 2 TYPE |
Threaded |
| MOUNT HOLE ID 3 |
M8x1.25 |
| MOUNT HOLE 3 TYPE |
Threaded |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SND0026 |
| J & N |
410-52230, 410-54014 |
| LESTER |
18416 |
| SEA-DOO |
278-000-576, 278-000-577, 278-001-038, 278-001-301 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Rotax Marine – BRP |
787 RFI Rotax Engine 2 Stroke |
782c |
1998 |
| Rotax Marine – BRP |
787 RFI Rotax Engine 2 Stroke |
782c |
1999, 2000, 2001, 2002, 2003, 2004, 2005 |
| Rotax Marine – BRP |
787 RFI Rotax Engine, 2 Stroke |
782cc, 782cc |
2005 |
| Rotax Marine – BRP |
787 Rotax Engine 2 Stroke |
782c |
1995, 1996, 1997, 1998, 1999 |
| Rotax Marine – BRP |
787 Rotax Engine, 2 Stroke |
782cc, 782cc |
1999 |
| Sea-Doo |
3D DI |
800cc |
2004, 2005 |
| Sea-Doo |
3D DI |
950cc |
|
| Sea-Doo |
Challenger 1800 Jet Boat Twin Eng |
|
1996, 1997, 1998, 1999 |
| Sea-Doo |
GSX RFI |
800cc |
1999, 2000, 2001 |
| Sea-Doo |
GSX |
800cc |
1996 |
| Sea-Doo |
GSX |
800cc |
1996, 1997, 1999, 2000, 2001 |
| Sea-Doo |
GSX |
800cc |
1997 |
| Sea-Doo |
GTI LE |
800cc |
2005 |
| Sea-Doo |
GTI RFI |
800cc |
2003 |
| Sea-Doo |
GTI RFI |
800cc |
2004, 2005 |
| Sea-Doo |
GTI |
1494cc |
2003, 2004, 2005 |
| Sea-Doo |
GTX RFI |
800cc |
1998 |
| Sea-Doo |
GTX RFI |
800cc |
1999, 2000, 2001, 2002 |
| Sea-Doo |
GTX |
800cc |
1996 |
| Sea-Doo |
GTX |
800cc |
1996, 1997, 1998, 1999, 2000, 2001, 2002 |
| Sea-Doo |
GTX |
800cc |
1997 |
| Sea-Doo |
Speedster |
|
1998 |
| Sea-Doo |
Speedster |
|
1999 |
| Sea-Doo |
SPX |
800cc |
1998, 1999 |
| Sea-Doo |
XP |
800cc |
1995, 1996 |
| Sea-Doo |
XP |
800cc |
1995, 1996, 1997 |
| Sea-Doo |
XP |
800cc |
1997 |
