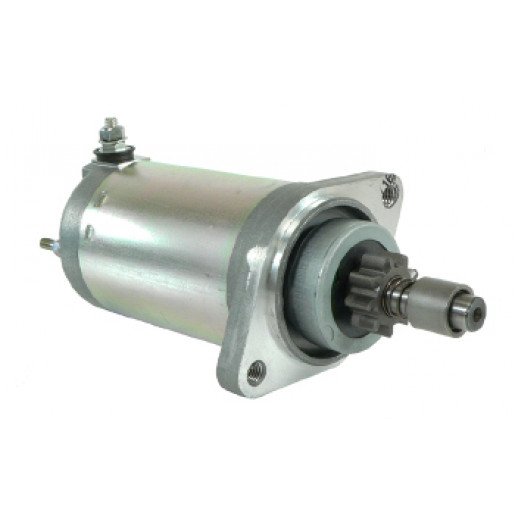

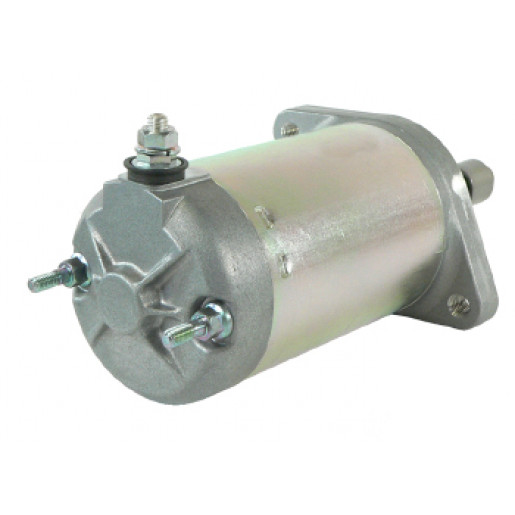

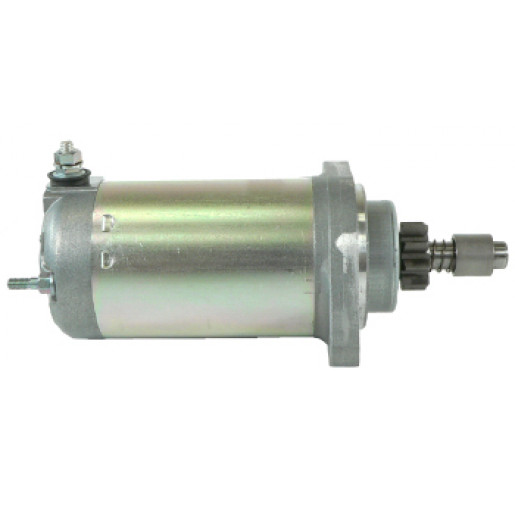

NEW Starter for SKI DOO Grand Touring 700 & 800 Snowmobiles 98-01; 410-52210, 515-175-305, 515-175-305, 228000-691, 228000-6910, 228000-6911; LESTER 18867
$169.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Clockwise |
| VOLT | 12 |
| POWER | 0.600 kw |
| HP | 0.805 |
| CONDITION | New |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.146″ |
| GEAR OD | 29.100mm |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M8x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SND0499 |
| BOMBARDIER | 515-175-305 |
| DENSO | 228000-691, 228000-6910, 228000-6911 |
| J&N | 410-52210 |
| LESTER | 18867 |
| SEA-DOO | 515-175-305 |
| WAI | 18867N |
| WILSON SMALL ENGINE | 71-29-18867 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1998 | SKI-DOO | Grand Touring SE | 698cc |
| 1998 - 2000 | SKI-DOO | Grand Touring 700 | 698cc |
| 1999 - 2000 | SKI-DOO | Grand Touring SE | 796cc |
| 1999 - 2002 | SKI-DOO | Grand Touring 800 SE | 796cc |
