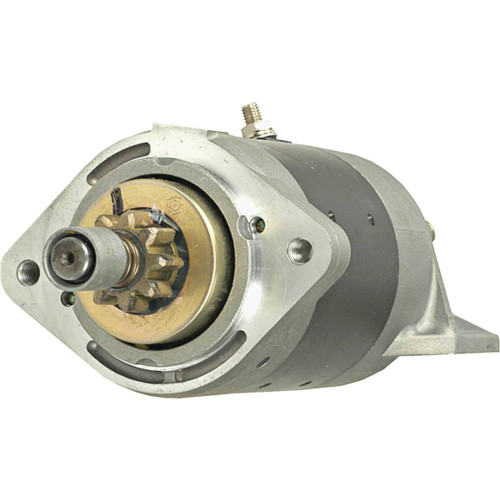

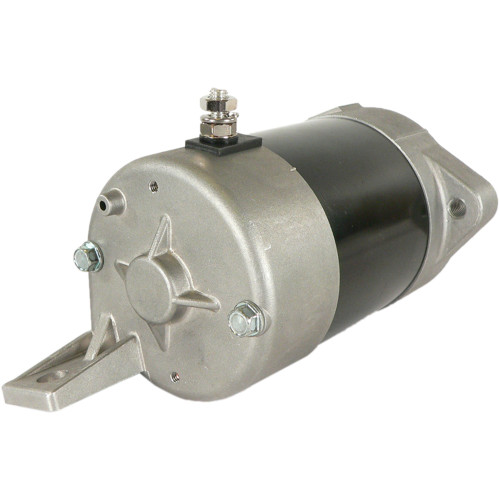

NEW Starter for SUZUKI DT75TCL, DT85TCL & PU85 Engine – Marine Outboard; 410-44061, S114-407, S114-555, 31100-95600, 31100-95601; LESTER 18316, 18815
$279.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Direct Drive (DD) |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| POWER |
0.900 kw |
| HP |
1.207 |
| NUMBER OF TEETH |
9 |
| GEAR OD |
1.154″ |
| GEAR OD |
29.300mm |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE ID 2 |
M8x1.25 |
| MOUNT HOLE 2 TYPE |
Threaded |
| WARRANTY |
1 Year |
|
(1) M8-1.25 Threaded Hole on Side of Drive End Housing & (1) Mounting Ear on CE Cap With 9.2mm Hole |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SHI0089 |
| EMP |
4-6414 |
| HITACHI |
S114-407, S114-555 |
| J&N |
410-44061 |
| LESTER |
18316, 18815 |
| MERCURY MARINE |
8M6007393 |
| SIERRA MARINE |
18-6414, 18-6428 |
| SUZUKI |
31100-95600, 31100-95601 |
Applications
| Make |
Model |
Engine |
Years |
| Suzuki |
DT75TCL |
73CI |
1988 – 1997 |
| Suzuki |
DT85TCL |
73CI |
1988 – 2000 |
| Suzuki |
PU85 |
73CI |
1992 – 1996 |
